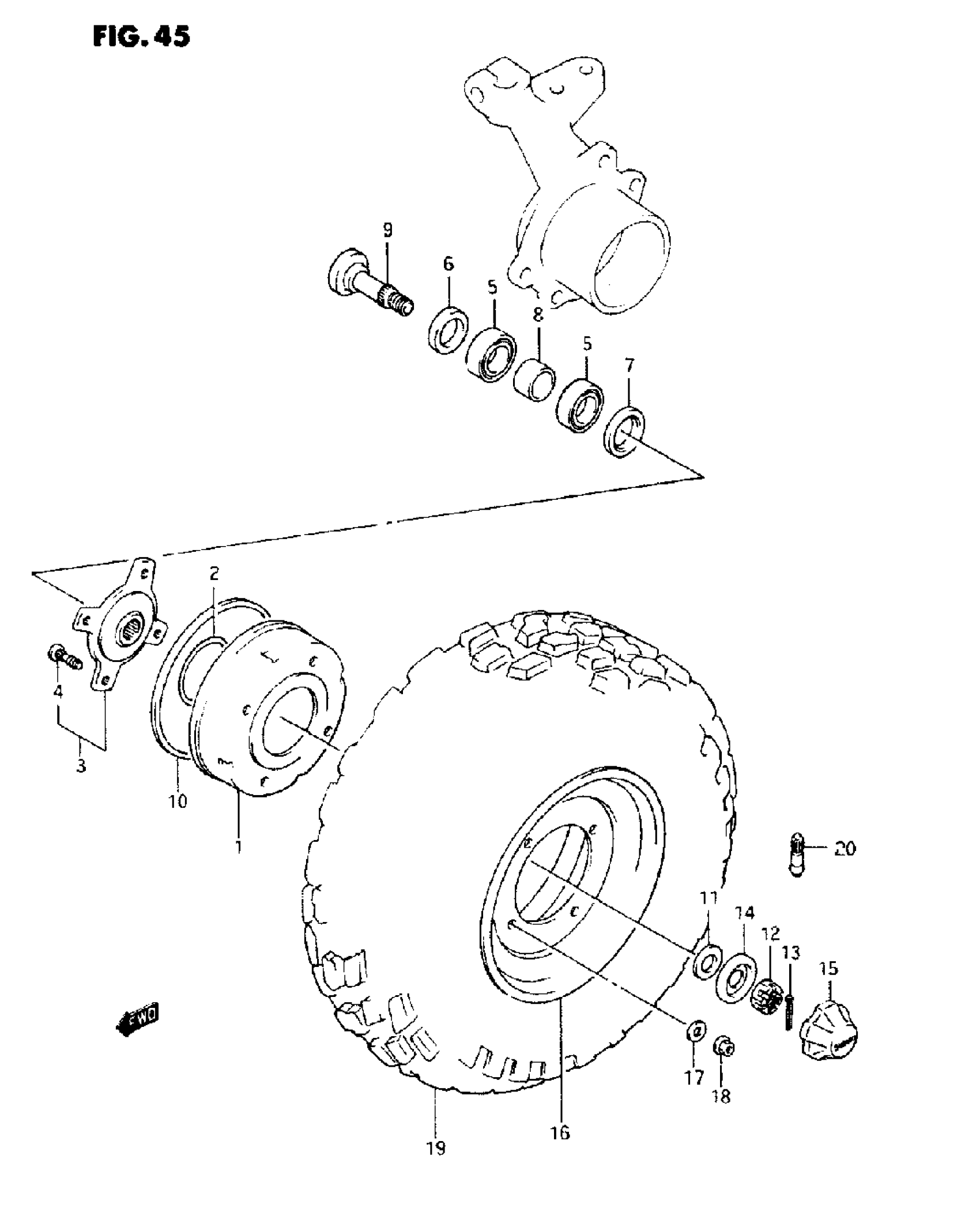

Suzuki LT-F250 (1997) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, BRAKE

54120-19B10

Unavailable

2

0 RING (ID:79.8, D:2.40)

09280-80001

$3.64

3

HUB, FRONT

54110-19B01

Unavailable

4

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.58

5

BEARING, FRONT HUB

08123-60067

$27.08

6

DUST SEAL, INNER (38X55X8)

09283-38012

$13.70

7

DUST SEAL, OUTER (38X55X6.4)

09283-38013

$15.15

8

SPACER, FRONT HUB

54731-19B00

$11.05

9

AXLE,FRONT This part replaces 54711-20B01.

54711-20B0V

Unavailable

10

DUST SEAL, DRUM BRAKE

54124-19B10

$80.85

11

WASHER, HUB

09164-18004

$3.49

12

NUT, HUB

09141-18008

$7.93

13

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.41

14

HOLDER, CENTER CAP

64726-19B00

$3.25

15

CAP, WHEEL CENTER

54725-39D00

$14.54

16

RIM, FRONT WHEEL (SILVER)

55310-20B00-13L

Unavailable

17

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

$2.44

18

NUT This part replaces 08316-10103.

08316-1010B

$2.74

19

TIRE, T/L FRONT (AT22X8-10) (DUNLOP)

55100-20B51

Unavailable

20

VALVE ASSY, WHEEL RIM, TR413

43130-78030

$9.11
