1997 Suzuki LT-F250 Handle Lever Diagram

← All diagrams

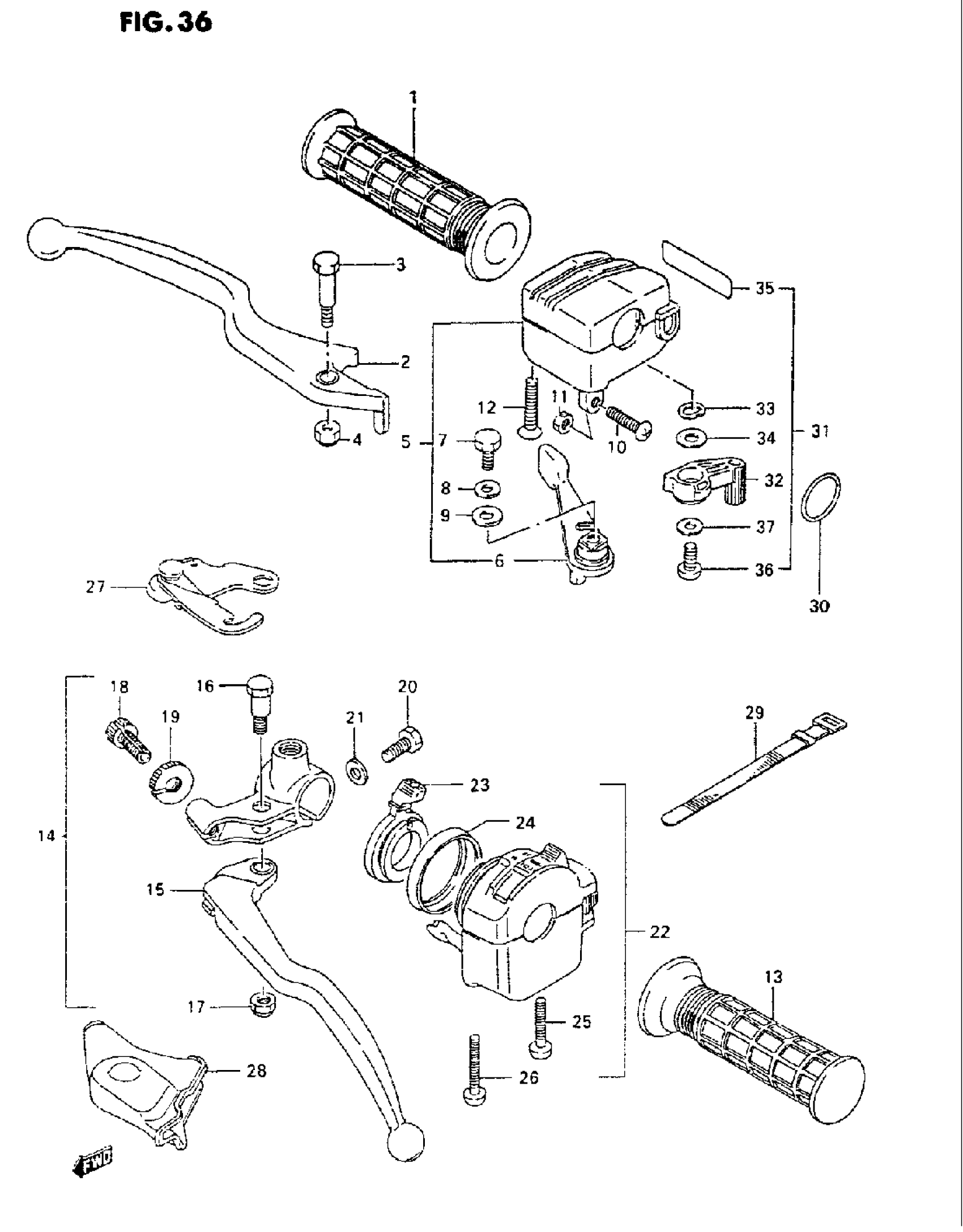

Find the part on the Handle Lever diagram for your 1997 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-F250 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$11.70

In stock

2

LEVER,BRAKE

57421-39D10

1
Out of stock

3

1

$8.28

In stock

4

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

5

1

$128.28

In stock

6

.LEVER

57151-24301

1

$13.28

In stock

7

1

$1.90

In stock

8

1

$1.97

In stock

9

.WASHER

09160-06019

1

$1.49

In stock

10

.SCREW

09125-05066

1

$1.76

In stock

11

NUT

09140-05006

1

$2.77

In stock

12

SCREW

02132-05307

2

$1.63

In stock

13

1

$11.70

In stock

14

LEVER ASSY. REAR BRAKE

57500-24502

1
Out of stock

15

LEVER

57620-24501

1
Out of stock

16

BOLT

57431-29502

1

$8.65

In stock

17

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

18

ADJUSTER

57441-44400

1

$8.33

In stock

19

1

$2.92

In stock

20

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

21

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

22

1

$196.25

In stock

23

LEVER, CHOKE

37571-19B01

1
Out of stock

24

COVER, CHOKE

37576-19B01

1
Out of stock

25

1

$2.88

In stock

26

1

$2.42

In stock

27

STOPPER, BRAKE

57790-19B00

1
Out of stock

28

1

$11.55

In stock

29

BAND

09407-12402

2
Out of stock

30

O RING

09280-24009

1

$8.81

In stock

31

LEVER SET, THROTTLE POSITION

57300-19820

—
Out of stock

32

LEVER

57155-18B10

1
Out of stock

33

WASHER

57156-24300

1
Out of stock

34

WASHER

09160-08003

1

$2.43

In stock

35

LABEL

68628-19B00

—
Out of stock

36

1

$1.55

In stock

37

1

$1.97

In stock
