1997 Suzuki LT-F250 Steering Shaft Diagram

← All diagrams

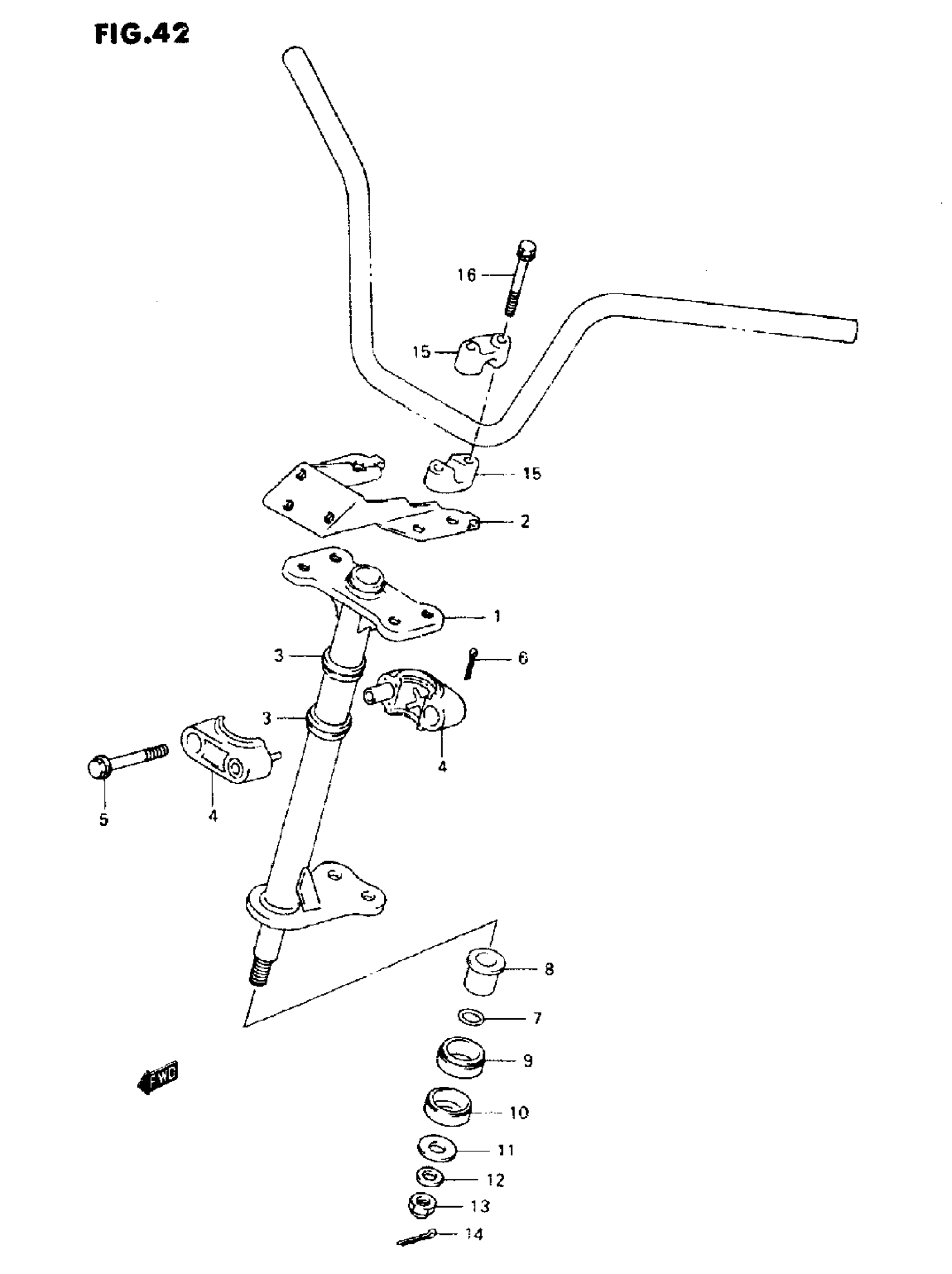

Find the part on the Steering Shaft diagram for your 1997 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-F250 Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, STEERING

51650-20B10

1
Out of stock

2

BRACKET, HEADLAMP

51530-20B00

1
Out of stock

3

OUST SEAL. STEERING

51678-24500

2

$6.81

In stock

4

HOLDER,STEERING SHAFT

51670-24500

2

$23.65

In stock

5

BOLT (8X80)

09103-08116

2
Out of stock

6

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

7

0 RING (ID:16.8, D:3.10)

09280-17003

1
Out of stock

9

1

$6.40

In stock

10

1

$7.11

In stock

12

LOCK WASHER

09162-12006

1

$4.18

In stock

13

1

$5.63

In stock

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

15

CLAW, HANDLEBAR (BLACK)

56211-27200-291

4

$20.22

In stock

16

BOLT

01580-08603

4
Out of stock
