1997 Suzuki LT-F250 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1997 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

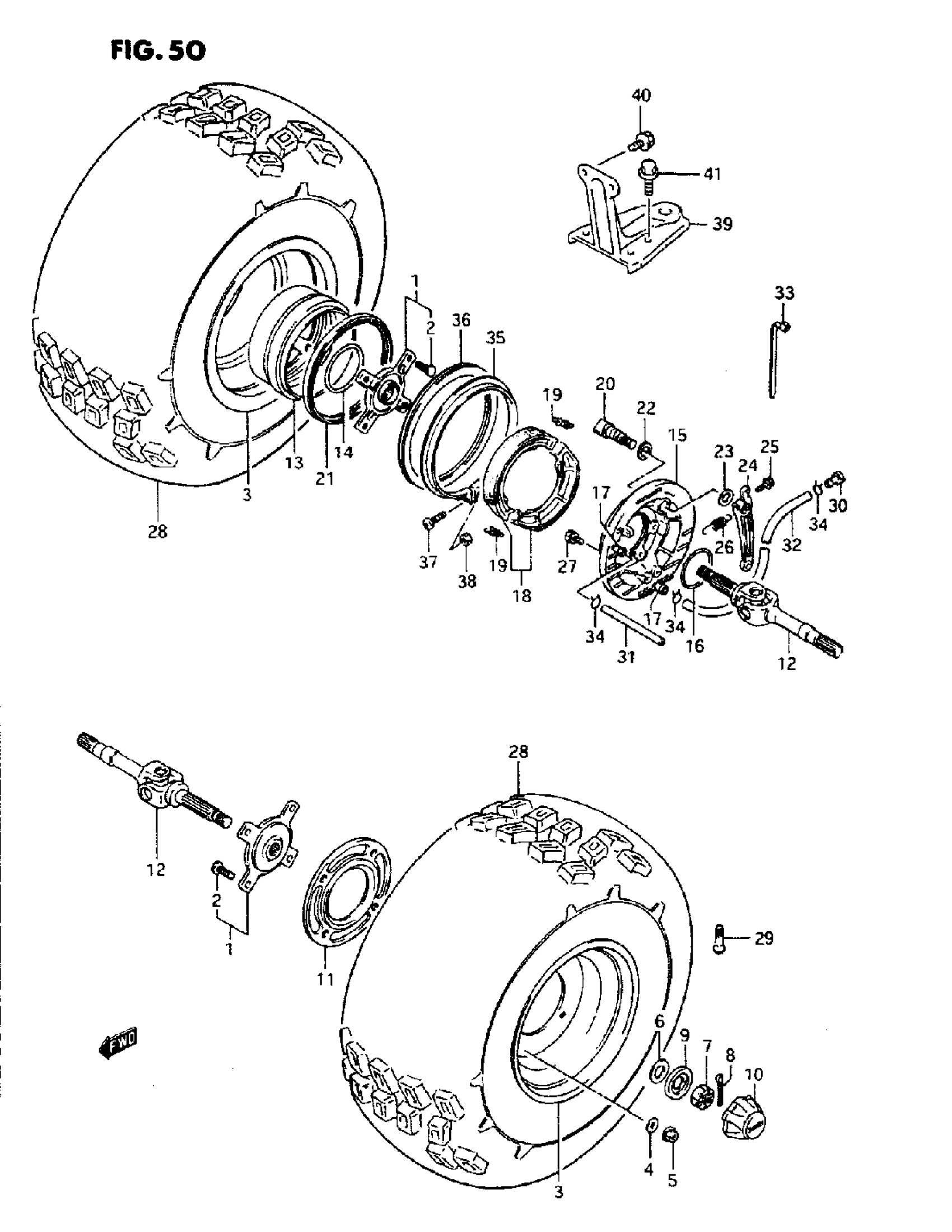

1997 Suzuki LT-F250 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB. REAR WHEEL

64110-19B11

2
Out of stock

2

BOLT This part replaces 09119-10045.

09119-10045-XC0

8
Out of stock

3

RIM, REAR WHEEL (SILVER)

65310-20B00-13L

2
Out of stock

4

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

8
Out of stock

5

NUT This part replaces 08316-10103.

08316-1010B

8
Out of stock

6

WASHER

09164-18004

2
Out of stock

7

NUT, HUB

09141-18008

2
Out of stock

8

PIN, COTTER This part replaces 04111-40408.

04111-4040A

2
Out of stock

9

HOLDER, CAP

64726-19B00

2
Out of stock

10

CAP

54725-39D00

2
Out of stock

11

SPACER, HUB LH

64113-19B10

1
Out of stock

12

AXLE, REAR

64710-19B10

2
Out of stock

13

DRUM, BRAKE

64120-19B00

1
Out of stock

14

0 RING, DRUM (ID:79.8, D:2.40)

09280-80001

1
Out of stock

15

PANEL, BRAKE ANCHOR

64210-19B02

1
Out of stock

16

0 RING, PANEL (ID:69.5, D:2.00)

09280-70010

1
Out of stock

17

UNION

09364-12002

2
Out of stock

18

SHOE SET, BRAKE

64400-19820

1
Out of stock

19

SPRING, SHOE

55420-30000

2
Out of stock

20

CAM, REAR BRAKE

64440-19B00

1
Out of stock

21

DUST SEAL, DRUM

64124-19B00

1
Out of stock

22

0 RING

64443-18A00

2
Out of stock

23

WASHER

09160-16003

1
Out of stock

24

LEVER, CAM

64451-19B01

1
Out of stock

25

BOLT This part replaces 01550-06253.

01550-0625A

1
Out of stock

26

SPRING This part replaces 09443-13022.

09443-13022-XC0

1
Out of stock

27

BOLT, BRACE This part replaces 01570-08203.

01570-0820A

4
Out of stock

28

TIRE, T/L REAR (AT24X11-10) (DUNLOP)

65100-20B51

2
Out of stock

29

VALVE ASSY, WHEEL RIM, TR413

43130-78030

2
Out of stock

30

PLUG, DRAIN HOSE

13877-00190

1
Out of stock

31

HOSE,11X15X2000 | L:2000->990 This part replaces 09352-11153-00B.

09352-11154-00B

1
Out of stock

32

HOSE | L:600->230 This part replaces 09352-11153-600.

09352-11154-600

1
Out of stock

33

CLAW, BREATHER HOSE

09407-11401

1
Out of stock

34

CLIP, HOSE

09401-14301

3
Out of stock

35

BRACKET, BRAKE COVER

64260-19B00

1
Out of stock

36

COVER. REAR BRAKE

64265-19B00

1
Out of stock

37

SCREW This part replaces 02112-04163.

02112-0416A

1
Out of stock

38

NUT This part replaces 08310-00043.

08310-0004A

1
Out of stock

39

PLATE, TRLR TOW

95210-20B00

1
Out of stock

40

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

41

BOLT, PROP SHAFT REAR This part replaces 01550-10203.

01550-1020A

2
Out of stock
