1977 Kawasaki KZ900-A5 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

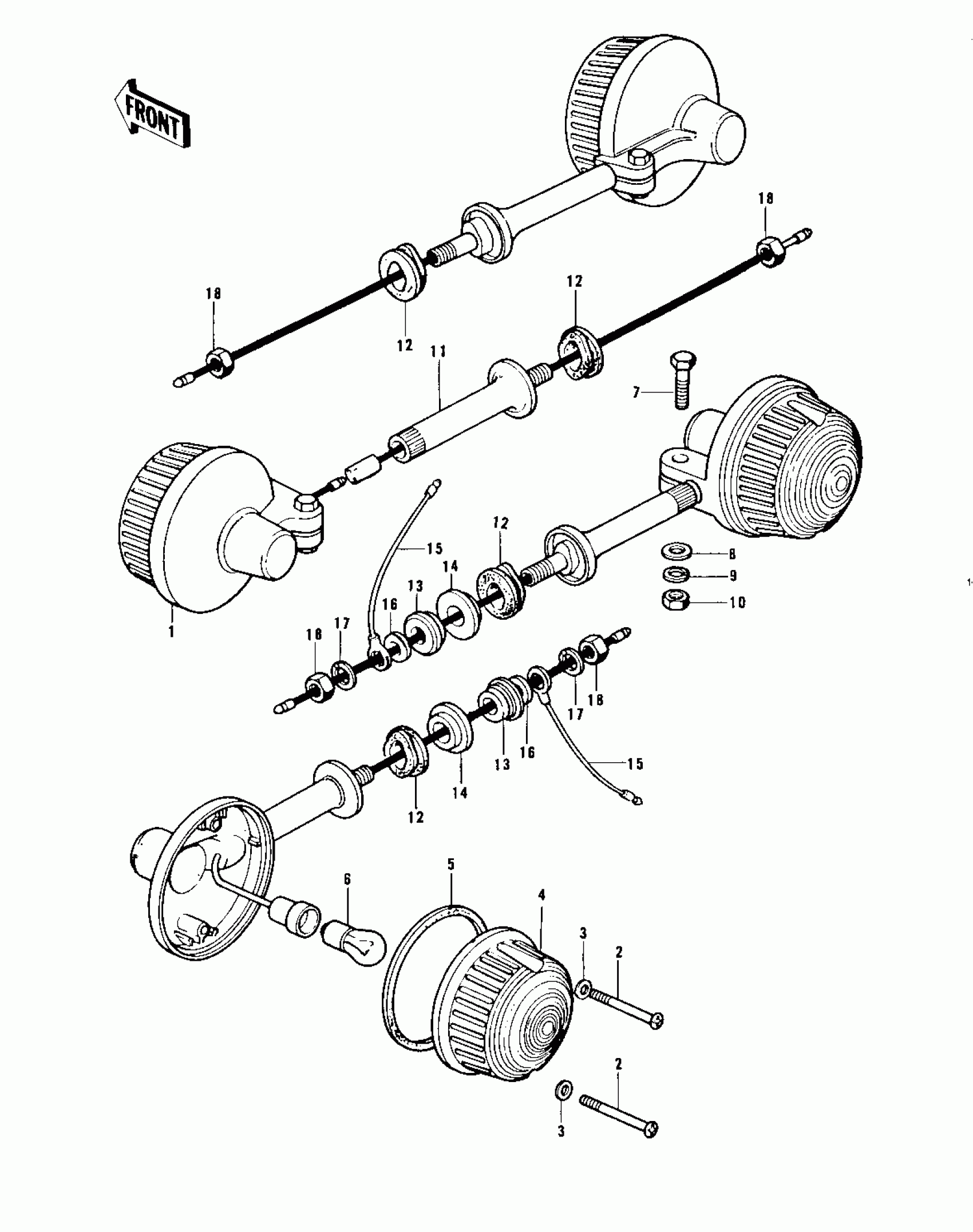

1977 Kawasaki KZ900-A5 Turn Signals Diagram

#

Description
Price
Status
Order Qty

1

LAMP ASSY,TURN SIGNAL

23040-034

Out of stock

2

SCREW-PAN HEAD,4X35

220E0435A

Out of stock

3

WASHER,PLAIN,4MM

23058-002

Out of stock

4

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

Out of stock

4

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

Out of stock

5

GASKET,TURN SIGNAL LAMP

23050-002

Out of stock

6

BULB,12V 32CP(23W)

92069-055

Out of stock

7

BOLT-UPSET

110N0630

Out of stock

8

WASHER PLAIN 6MM

411B0600

Out of stock

9

WASHER SPRING 6MM

461F0600

Out of stock

10

NUT 6MM

310B0600

Out of stock

11

BRACKET-TURN SIG LAMP

23078-001

Out of stock

12

DAMPER,LAMP

92075-128

Out of stock

13

COLLAR

92027-147

Out of stock

14

DAMPER RUBBER,SIG LM

92075-158

Out of stock

15

LEAD WIRE,SIGNAL LAMP

26011-063

Out of stock

16

WASHER,10.5X20X1

92022-239

Out of stock

17

WASHER SPRING 10MM

461F1000

Out of stock

18

NUT-HEX-FINE,10MM

315B1000

Out of stock
