1977 Kawasaki KZ900-A5 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

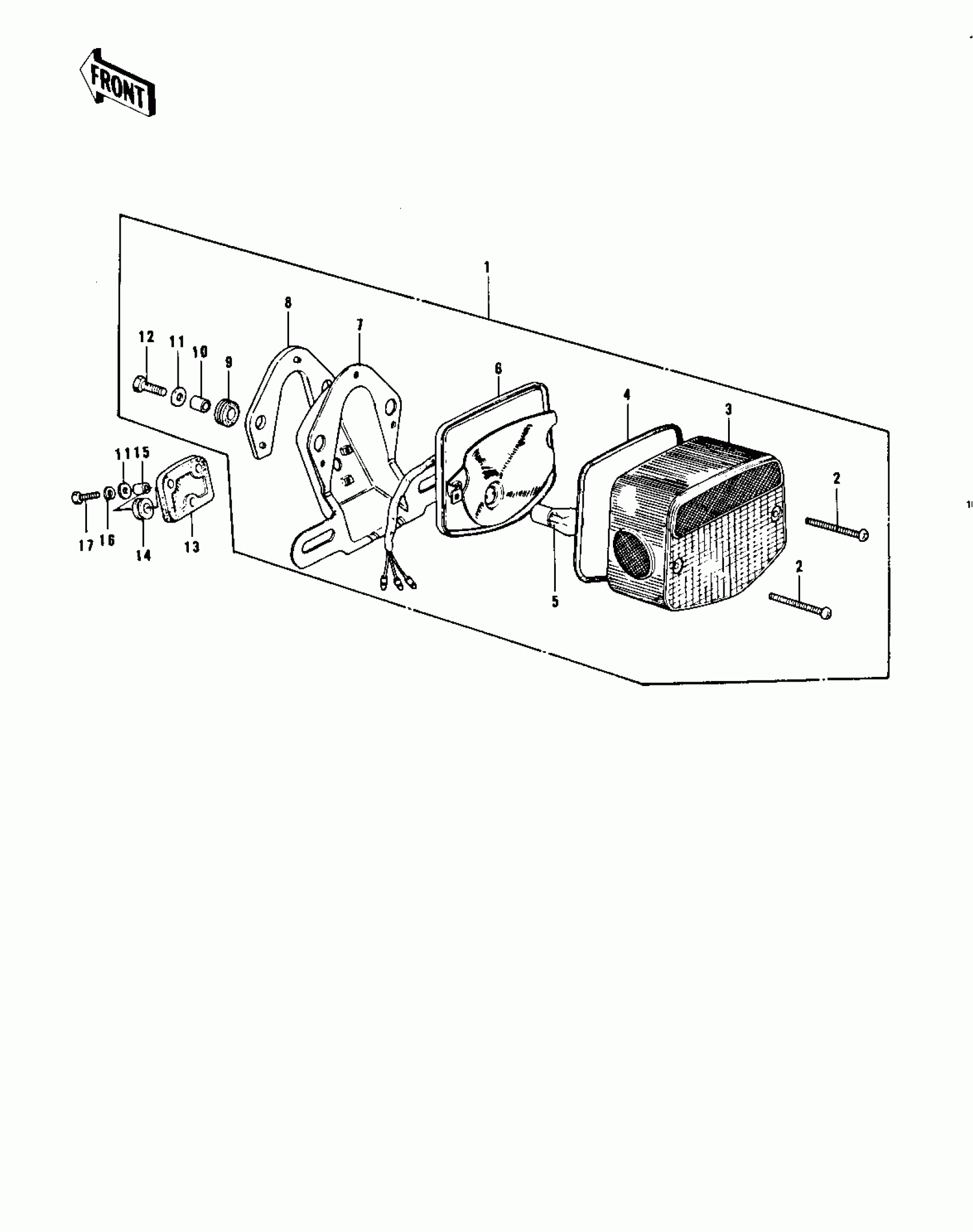

1977 Kawasaki KZ900-A5 Taillight Diagram

#

Description
Price
Status
Order Qty

1

LAMP ASSY,TAIL

23024-067

Out of stock

2

SCREW, PAN HEAD, 4X60

220E0460A

Out of stock

3

LENS,TAIL LAMP

23026-034

$78.61

In stock

4

$11.83

In stock

5

BULB,12V 27/8W

92069-059

$6.45

In stock

6

$130.76

In stock

7

BKT,LICENSE PLATE

23036-046

Out of stock

8

DAMPER

23066-023

$16.51

In stock

9

DAMPER

23066-020

Out of stock

10

COLLAR,6.8X10X8.5

92027-129

$3.97

In stock

11

WASHER,6.5X20X1.6

92022-125

$1.25

In stock

12

BOLT HEX HD 6X22

110B0622

Out of stock

13

DAMPER,TAIL LAMP

35039-004

Out of stock

14

DAMPER,FENDER

92075-121

$3.63

In stock

15

COLLAR,6.8X10X14.5

92027-156

$3.97

In stock

16

WASHER SPRING 6MM

461F0600

Out of stock

17

BOLT, HEX HEAD, 6X25

110B0625

Out of stock
