1977 Kawasaki KZ900-A5 Headlight Diagram

← All diagrams

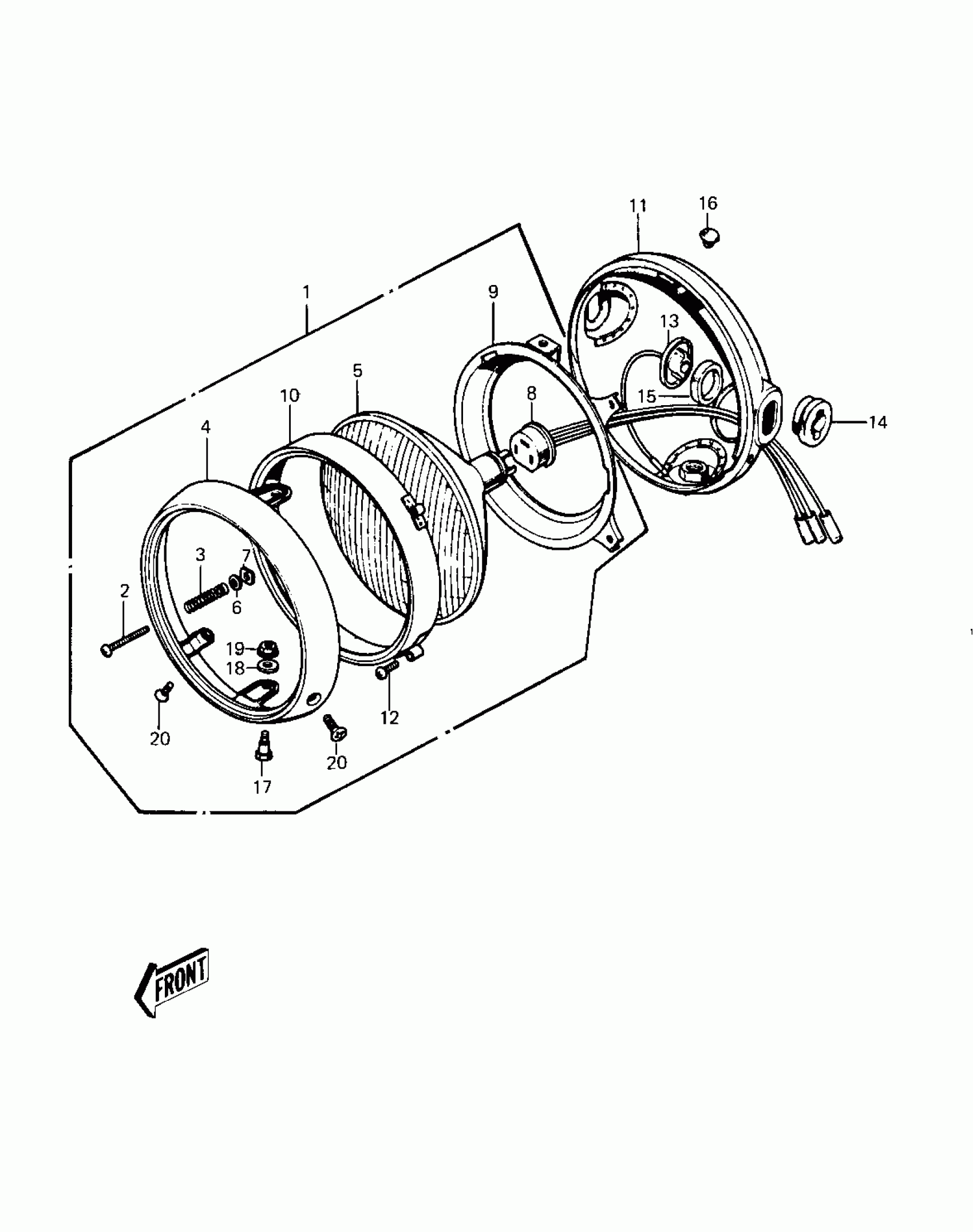

Find the part on the Headlight diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki KZ900-A5 Headlight Diagram

#

Description
Price
Status
Order Qty

1

LAMP UNIT,HEAD

23003-017

$409.20

In stock

2

$4.17

In stock

3

$3.19

In stock

4

RIM,HEAD LAMP

23006-038

Out of stock

5

SEALD BEAM UNIT

23007-041

Out of stock

6

WASHER,4.1X8X0.8

23021-004

Out of stock

7

$3.69

In stock

8

SOCKET ASSY,HEAD LAMP

23008-037

Out of stock

9

$65.88

In stock

10

$45.03

In stock

11

BODY-COMP-HEAD LAMP

23005-1015-21

$235.99

In stock

11

BODY-COMP-HEAD LAMP

23005-1015-21

$235.99

In stock

12

SCREW, PAN HEAD 3X12

220B0312A

Out of stock

13

COLLAR

23076-005

$50.07

In stock

14

DAMPER RUBBER

23066-015

Out of stock

15

DAMPER RUBBER

23066-016

Out of stock

16

$5.93

In stock

17

$4.78

In stock

18

WASHER,PLAIN,5MM

23021-012

Out of stock

19

NUT,HEAD LAMP RIM FIT

23020-020

Out of stock

20

SCREW,SPECIAL,5X14

23019-022

$1.78

In stock
