1977 Kawasaki KZ900-A5 Ignition/regulator/rectifier Diagram

← All diagrams

Find the part on the Ignition/regulator/rectifier diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

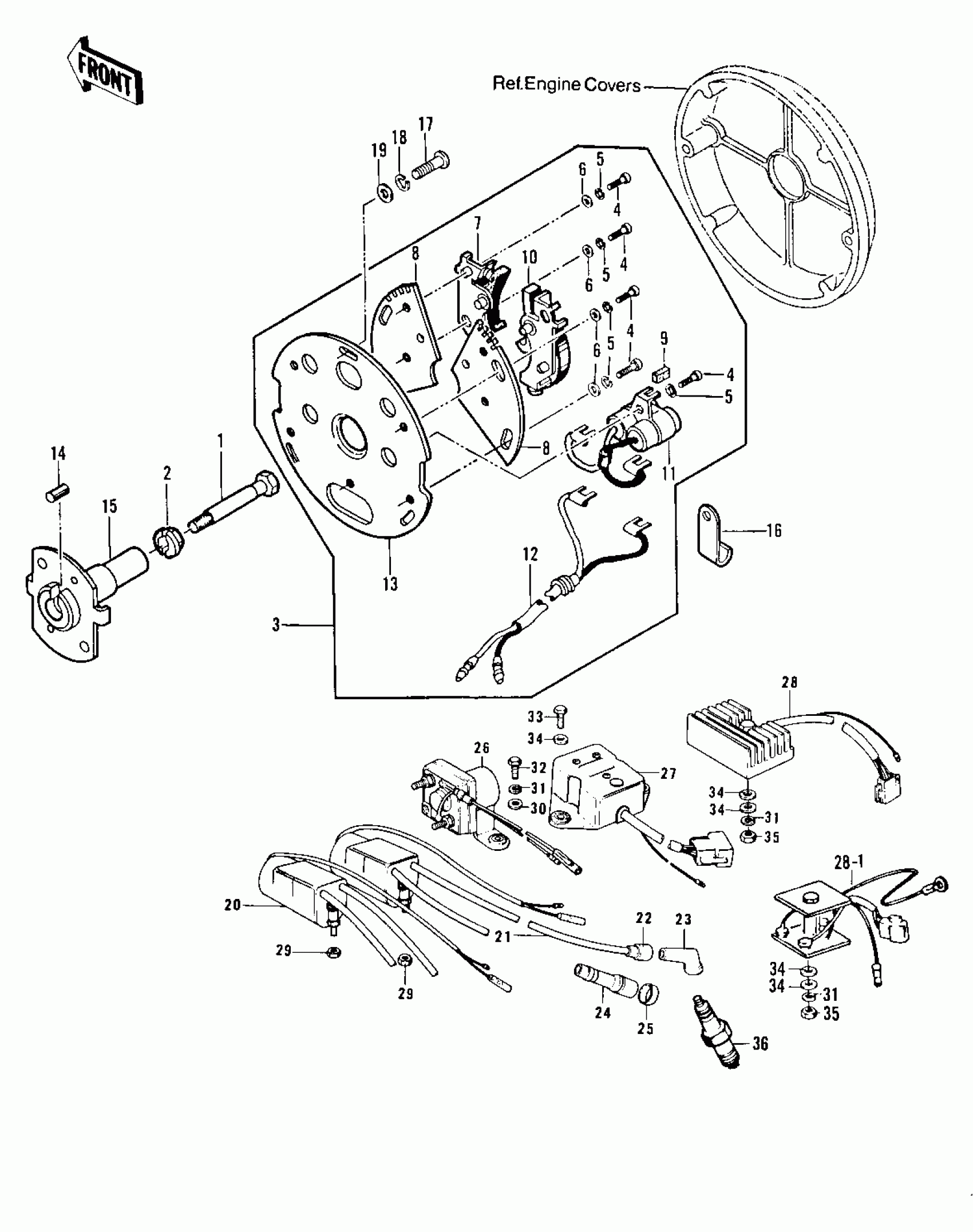

1977 Kawasaki KZ900-A5 Ignition/regulator/rectifier Diagram

#

Description
Price
Status
Order Qty

1

BOLT,SPARK ADVANCER

92001-113

Out of stock

2

WASHER,BREAKER GOVERNOR

92022-244

Out of stock

3

BREAKER,CONTACT

21135-011

$261.06

In stock

4

SCREW PAN HEAD 4X8

220B0408A

$0.73

In stock

5

WASHER SPRING 4MM

461F0400

Out of stock

6

WASHER PLAIN 4MM

410B0400

Out of stock

7

BREAKER,CONTACT

21008-028

Out of stock

8

PLATE,CONTACT BREAKE

21156-010

Out of stock

9

FELT OIL

21019-018

Out of stock

10

BREAKER,CONTACT

21008-027

$73.02

In stock

11

CONDENSER

21013-035

Out of stock

12

WIRING HARNESS,BRAKE

21029-037

Out of stock

13

$22.71

In stock

14

PIN-DOWEL,4X8

551A0408

$0.80

In stock

15

ADVANCER,SPARK

21148-010

$309.20

In stock

16

$3.75

In stock

17

$0.51

In stock

18

WASHER SPRING 5MM

461F0500

Out of stock

19

WASHER-PLAIN,5MM

411B0500

Out of stock

20

IGNITION COIL

21121-1003

Out of stock

20

IGNITION COIL

21121-1003

Out of stock

21

$376.61

In stock

21

COIL,IGNITION,#2&3

21121-1004

Out of stock

21

$376.61

In stock

22

$4.88

In stock

23

CAP SPARK PLUG

21130-020

Out of stock

24

CAP-SPARK PLUG

21130-019

$40.61

In stock

25

GROMMET,PLUG CAP

21131-006

$6.77

In stock

26

SWITCH ASSY,MAGNETIC

21164-001

Out of stock

26

SWITCH ASSY,MAGNETIC

27010-1023

Out of stock

27

REGULATOR

21066-025

Out of stock

28

SET,RECTIFIER

21061-1002

$407.23

In stock

28-1

SET,RECTIFIER

21061-1002

$407.23

In stock

29

NUT,LOCK 6MM

92017-014

$5.98

In stock

30

WASHER,6.5X20X1.6

92022-125

$1.25

In stock

31

WASHER SPRING 6MM

461F0600

Out of stock

32

BOLT-UPSET,6X16

110G0616

$1.10

In stock

33

BOLT,6X14

110B0614

Out of stock

34

$1.19

In stock

35

NUT 6MM

310B0600

$0.93

In stock

36

$2.92

In stock
