1977 Kawasaki KZ900-A5 Generator/starter Motor Diagram

← All diagrams

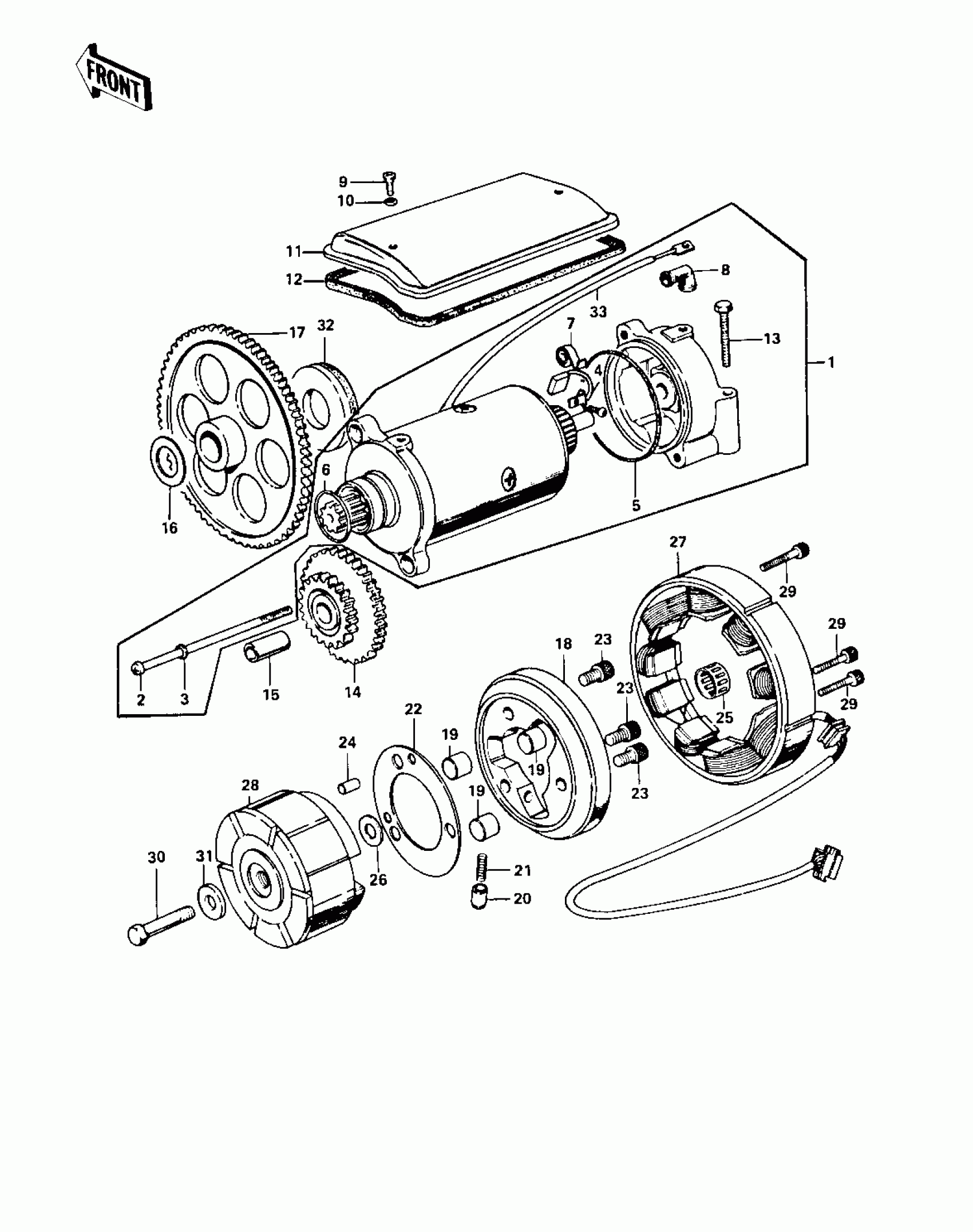

Find the part on the Generator/starter Motor diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki KZ900-A5 Generator/starter Motor Diagram

#

Description
Price
Status
Order Qty

1

MOTOR ASSY,STARTER

21163-004

$367.62

In stock

2

$9.86

In stock

3

WASHER SPRING 6MM

461F0600

Out of stock

4

BRUSH,CARBON

21039-003

$42.66

In stock

5

RING-O,STARTER MOTOR

21027-003

Out of stock

6

$7.86

In stock

7

SPRING-BRUSH

21040-003

Out of stock

8

$7.48

In stock

9

BOLT (6X10)

110N0610

Out of stock

10

$1.19

In stock

11

COVER,STARTING MOTOR

21165-001

Out of stock

12

$37.40

In stock

13

BOLT HEX HEAD 6X56

110B0656

Out of stock

14

GEAR-SPUR,STARTER MOTOR

21167-002

Out of stock

15

PIN

13002-007

$17.07

In stock

16

WASHER 22.1X30.7X2.0

92026-091

Out of stock

17

GEAR,STARTING CLUTCH

21167-003

Out of stock

18

CLUTCH ASSY,STARTING

13194-1006

Out of stock

19

ROLLER,15X14.4

92122-001

$9.19

In stock

20

PIN

92043-087

$10.11

In stock

21

SPRING

92081-110

$3.78

In stock

22

WASHER,FREE WHEEL

92026-082

Out of stock

23

BOLT SOCKET 8X16

92003-104

Out of stock

24

PIN,DOWEL,6X22

551A0622

Out of stock

25

NEEDLE BEARING, K222620

92046-033

Out of stock

26

SPACER,22X35.5X1.0

92026-092

$11.92

In stock

27

STATOR ASSY

21076-023

Out of stock

28

ROTOR

21007-032

$1,300.00

In stock

29

BOLT-SOCKET,6X35,BLA

120Q0635

Out of stock

30

BOLT,8X40

114G0840

Out of stock

31

WASHER 8.5X23.5X4.5

92022-218

Out of stock

32

DAMPER RUBBER 6.3T

92075-192

Out of stock

32

DAMPER RUBBER 7.3T

92075-193

Out of stock

32

DAMPER RUBBER 8.3T

92075-194

Out of stock

33

WIRE,LEAD

26010-048

$59.71

In stock
