1977 Kawasaki KZ900-A5 Meters/ignition Switch Diagram

← All diagrams

Find the part on the Meters/ignition Switch diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

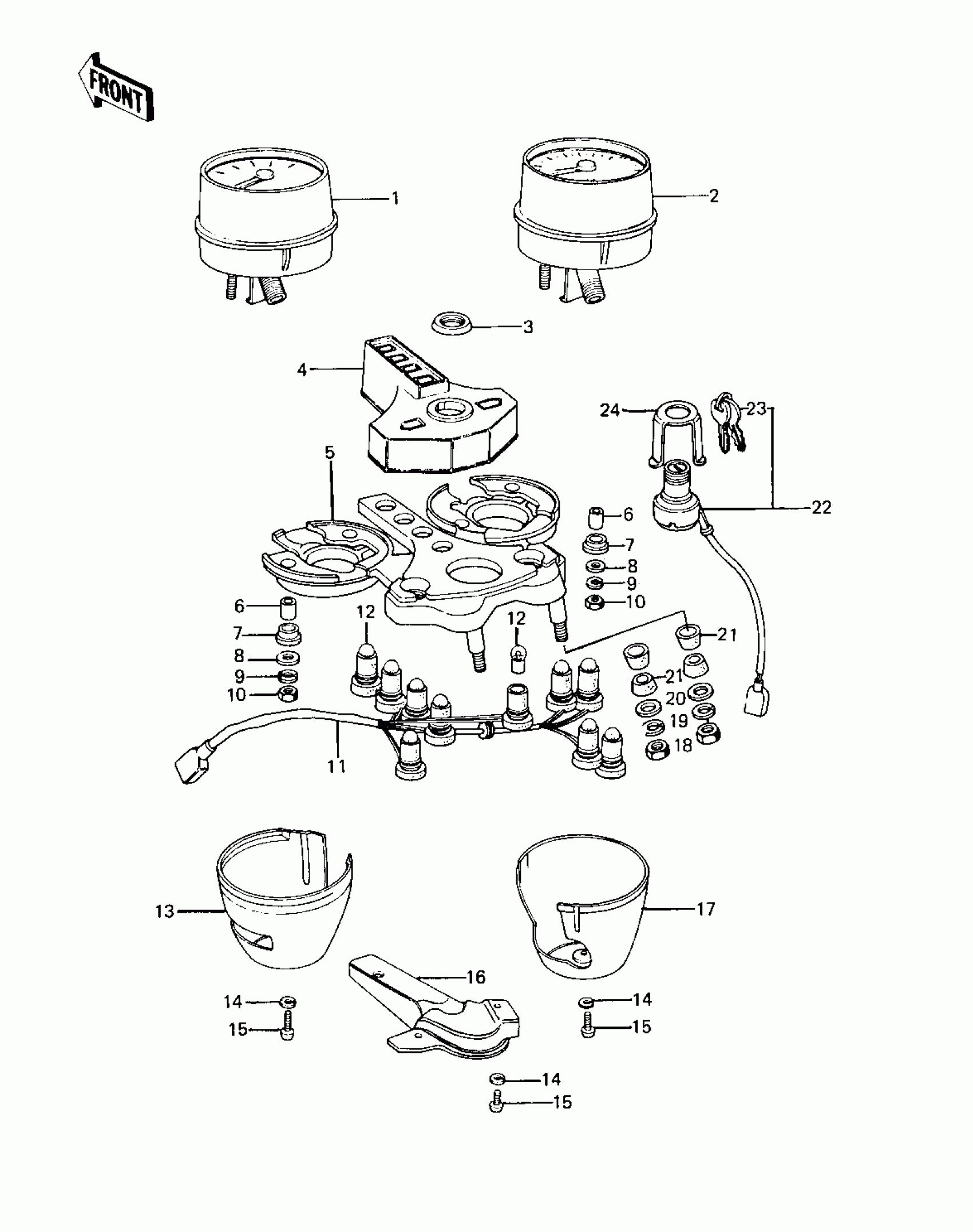

1977 Kawasaki KZ900-A5 Meters/ignition Switch Diagram

#

Description
Price
Status
Order Qty

1

SPEEDOMETER ASSY,MPH

25005-1031

Out of stock

1

SPEEDOMETER ASSY,MPH

25005-1031

Out of stock

1

SPEEDOMETER,KP4 (Canada)

25006-056

Out of stock

2

TACHOMETER ASSY

25015-1010

Out of stock

2

TACHOMETER ASSY

25015-1010

Out of stock

3

NUT,IGNITION SW LOCK

27007-004

Out of stock

4

COVER,METER,INDICATE

25023-015

Out of stock

5

BRACKET,METER

25008-045

Out of stock

5

BRACKET,METER

25008-045

Out of stock

6

COLLAR,METER

92027-174

Out of stock

7

RUBBER,METER

92075-172

Out of stock

8

WASHER,PLAIN,5MM

92022-241

Out of stock

9

WASHER SPRING 5MM

461F0500

Out of stock

10

NUT 5MM

312B0500A

Out of stock

11

SOCKET,SPEEDOMETER

25011-049

Out of stock

12

BULB 12V 3W

92069-018

Out of stock

13

COVER,SPEEDOMETER

25012-010

Out of stock

14

WASHER SPRING 3MM

461F0300

Out of stock

15

SCREW PAN HEAD 3X8

220B0308A

Out of stock

16

COVER,METER BRACKET

25024-006

Out of stock

17

COVER,TACHOMETER

25012-011

Out of stock

18

NUT,8MM

310B0800

Out of stock

19

WASHER SPRING 8MM

461F0800

Out of stock

20

WASHER PLAIN 8MM

411B0800

Out of stock

21

DAMPER RUBBER

92075-080

Out of stock

22

SWITCH,IGNITION

27005-086

Out of stock

23

KEY SET,#751

27008-069-51

Out of stock

23

KEY SET,#752

27008-069-52

Out of stock

23

KEY SET,#753

27008-069-53

Out of stock

23

KEY SET,#754

27008-069-54

Out of stock

23

KEY SET,#755

27008-069-55

Out of stock

23

KEY SET,#756

27008-069-56

Out of stock

23

KEY SET,#757

27008-069-57

Out of stock

23

KEY SET,#758

27008-069-58

Out of stock

23

KEY SET,#759

27008-069-59

Out of stock

23

KEY SET,#760

27008-069-60

Out of stock

23

KEY SET,#786

27008-069-86

Out of stock

23

KEY SET,#787

27008-069-87

Out of stock

23

KEY SET,#788

27008-069-88

Out of stock

23

KEY SET,#789

27008-069-89

Out of stock

23

KEY SET,#790

27008-069-90

Out of stock

23

KEY SET,#791

27008-069-91

Out of stock

23

KEY SET,#792

27008-069-92

Out of stock

23

KEY SET,#793

27008-069-93

Out of stock

23

KEY SET,#794

27008-069-94

Out of stock

23

KEY SET,#795

27008-069-95

Out of stock

23

KEY,BLANK

27008-1013

Out of stock

24

HOLDER IGNITION SW

27019-003

Out of stock
