1977 Kawasaki KZ900-A5 Chassis Electrical Equipment Diagram

← All diagrams

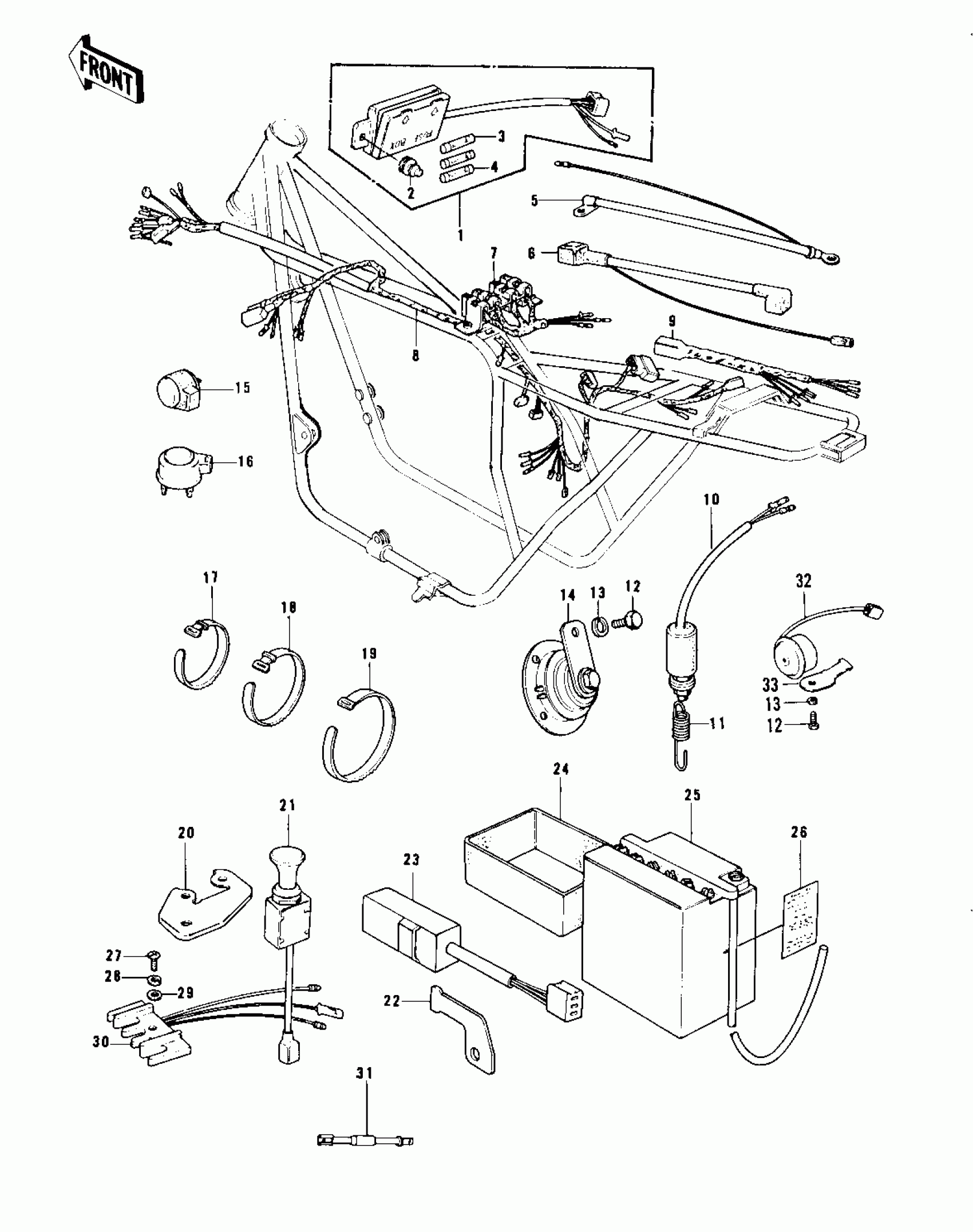

Find the part on the Chassis Electrical Equipment diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki KZ900-A5 Chassis Electrical Equipment Diagram

#

Description
Price
Status
Order Qty

1

FUSE-ASSY

26004-035

Out of stock

2

DAMPER,FUSE

92075-279

Out of stock

3

FUSE,20A,L=25

26006-005

Out of stock

4

FUSE,10A,L=25

26006-003

Out of stock

5

WIRE,BATTERY GROUND

26010-043

Out of stock

6

WIRE,STARTER LEAD

26010-042

Out of stock

7

WIRING HARNESS,CENTE

26002-057

Out of stock

8

WIRING HARNESS,MAIN

26001-135

Out of stock

9

WIRING HARNESS,REAR

26002-031

Out of stock

10

SWITCH-BRAKE LAMP

27010-017

Out of stock

11

SPRING BRAKE LAMP SW

27011-009

Out of stock

12

BOLT HEX HEAD 8X16

110B0816

Out of stock

13

WASHER SPRING 8MM

461F0800

Out of stock

14

HORN

27003-065

Out of stock

15

RELAY-ASSY,TURN SIGNAL

27002-011

Out of stock

16

RELAY,TURN SIGNAL

27002-016

Out of stock

17

BAND,L=123

92072-030

Out of stock

18

BAND,L=218

92072-032

Out of stock

19

BAND,AIR CLEANER

92072-073

Out of stock

20

BKT,HAZARD SWITCH

32060-019

Out of stock

21

SWITCH,HAZARD

27014-008

Out of stock

22

BRACKET,OUTAGE SWITCH

32060-014

Out of stock

23

SWITCH,OUTAGE,INDICTR

28019-001

Out of stock

24

CASE,BATTERY

32099-015

Out of stock

25

YUA BAT YB10L-A2

26012-041

Out of stock

26

LABEL, BATTERY CAUSON

56022-157

Out of stock

27

SCREW-PAN-CROS,6X20,WHITE

220B0620

Out of stock

28

WASHER SPRING 6MM

461F0600

Out of stock

29

WASHER PLAIN 6MM

411B0600

Out of stock

30

REGULATOR

21066-024

Out of stock

31

REGULATOR

21066-026

Out of stock

32

ALARM,TURN SIGNAL

27040-002

Out of stock

33

BRACKET,ALARM

27023-005

Out of stock
