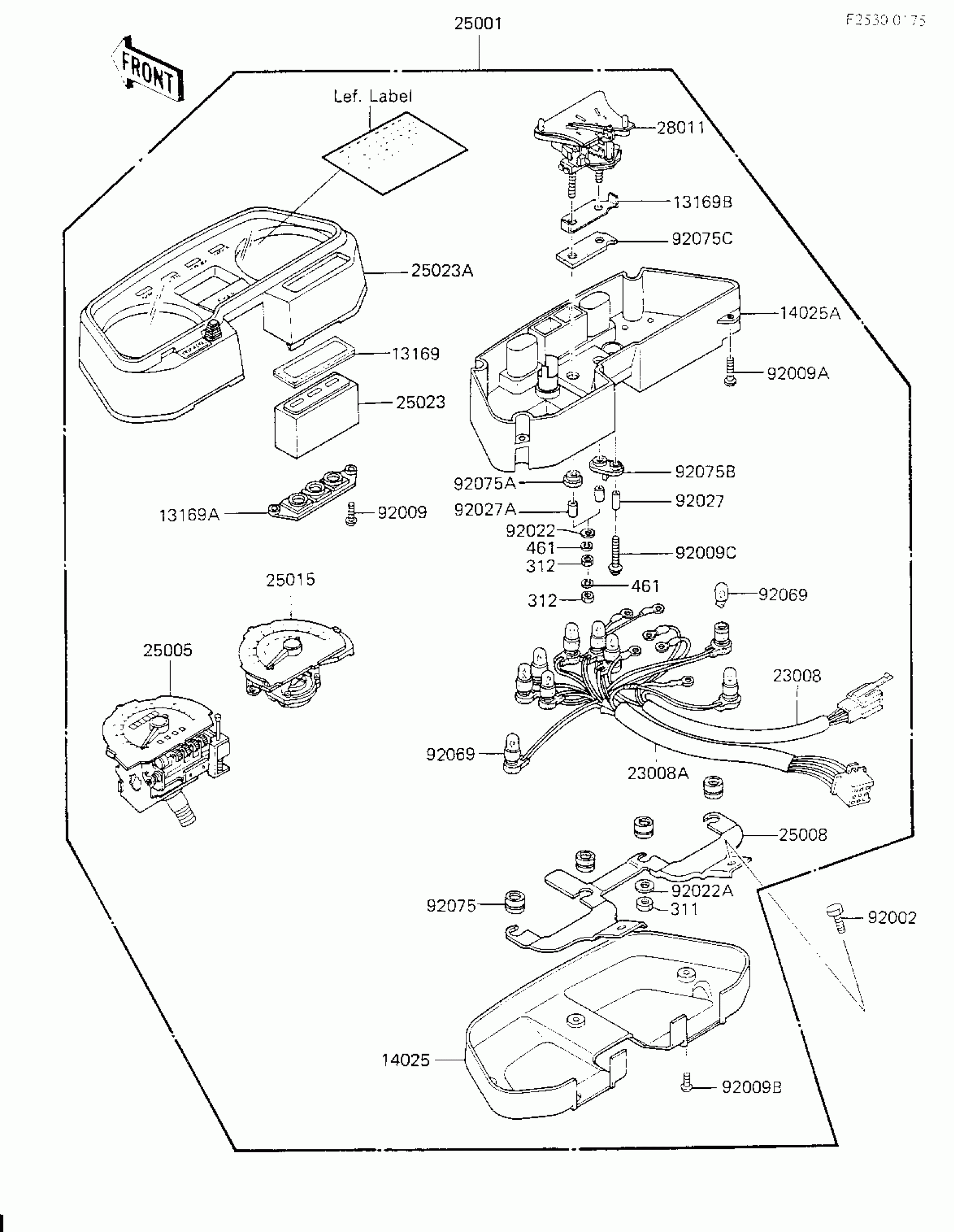

Find the part on the Meters diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KZ700-A1 Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13169

PLATE,PILOT BOX

13169-1508

1
Out of stock

13169A

PLATE,BULB SOCKET

13169-1556

1
Out of stock

13169B

PLATE,FUEL METER

13169-1593

1
Out of stock

14025

COVER,METER,LWR

14025-1473

1
Out of stock

14025A

COVER,METER UNIT

14025-1600

1
Out of stock

23008

1

$42.81

In stock

23008A

SOCKET-ASSY,METER

23008-1181

1

$91.80

In stock

25001

METER-ASSY,MPH

25001-1554

1

$773.18

In stock

25005

SPEEDOMETER,MPH

25005-1268

1

$308.93

In stock

25008

BRACKET-METER

25008-1058

1

$84.29

In stock

25015

1

$379.07

In stock

25023

1

$38.44

In stock

25023A

COVER-METER CASE,UPP

25023-1056

1
Out of stock

28011

METER,FUEL

28011-1032

1

$67.88

In stock

92002

BOLT,6X14

92002-1133

1
Out of stock

92009

SCREW,TAPPING,4X14,YELLOW

92009-1140

1
Out of stock

92009A

SCREW,TAPPING,4X20

92009-1141

1
Out of stock

92009B

SCREW,TAPPING,4X12,BLACK

92009-1142

1
Out of stock

92009C

SCREW,3X16

92009-1190

1
Out of stock

92022

WASHER,4.5X10X0.8

92022-1394

1

$3.53

In stock

92022A

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92027

COLLAR,5.5X11

92027-1563

1

$2.59

In stock

92027A

COLLAR,6X8.5

92027-1564

1

$3.92

In stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92075

1

$4.51

In stock

92075A

DAMPER,FUEL METER

92075-1453

1

$3.32

In stock

92075B

DAMPER,FUEL METER

92075-1454

1

$3.34

In stock

92075C

DAMPER,FUEL METER

92075-1455

1

$4.41

In stock

311

NUT-HEX

311B0500

1

$0.51

In stock

312

NUT-HEX

312B0400

1

$0.58

In stock

461

WASHER SPRING 4MM

461F0400

1
Out of stock
