1984 Kawasaki KZ700-A1 Battery Case/tool Case Diagram

← All diagrams

Find the part on the Battery Case/tool Case diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

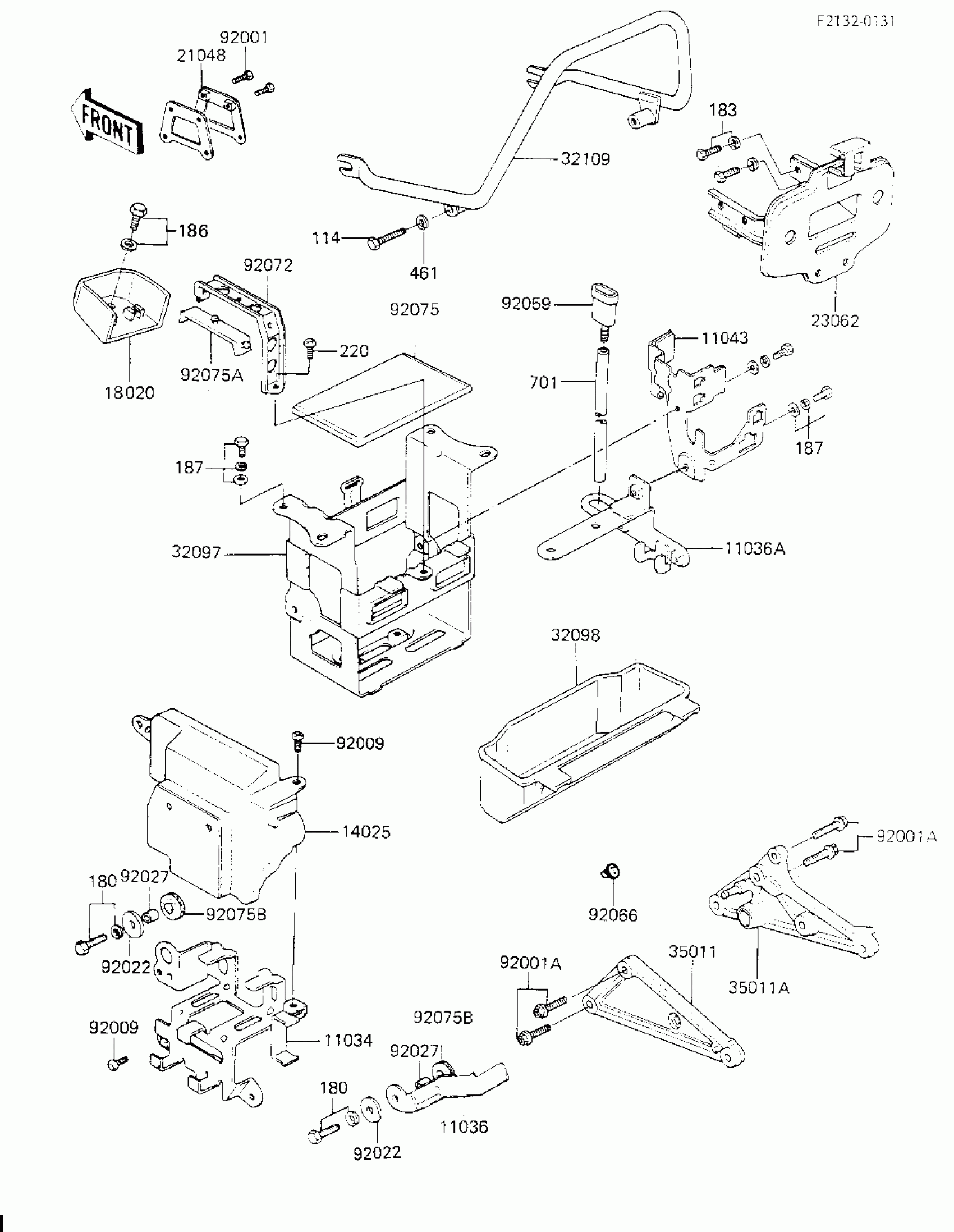

1984 Kawasaki KZ700-A1 Battery Case/tool Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,ELECTRO BASE

11034-1669

1
Out of stock

11036

BRACKET-A,FUSE

11036-1043

1
Out of stock

11036A

BRACKET-A,SWITCH

11036-1662

1
Out of stock

11043

BRACKET,IGNITER

11043-1622

1
Out of stock

14025

COVER,ELECTRO BASE

14025-1191

1
Out of stock

180

1

$15.47

In stock

21048

PLATE-COIL

21048-1001

1

$19.49

In stock

23062

1

$37.72

In stock

32097

CASE,BATTERY

32097-1026

1
Out of stock

32098

CASE,TOOL

32098-1011

1
Out of stock

32109

GRIP-FRAME

32109-1031

1

$179.06

In stock

35011

STAY,MUFFLER,LH

35011-1121

1

$133.94

In stock

35011A

STAY,MUFFLER,RH

35011-1122

1

$134.95

In stock

92001

BOLT,6X10

92001-137

1

$5.66

In stock

92001A

BOLT,FLANGED,8X28,BLACK

92001-1508

1
Out of stock

92009

SCREW,6X12

92009-1271

1
Out of stock

92022

WASHER,7X24X1.6

92022-228

1
Out of stock

92027

COLLAR-CLAMP

92027-291

1
Out of stock

92059

CONNECTOR PIPE

92059-101

1
Out of stock

92066

1

$3.69

In stock

92072

BAND,BATTERY

92072-1019

1
Out of stock

92075

DAMPER

92075-1076

1

$8.63

In stock

92075A

DAMPER,BATTERY BAND

92075-1113

1
Out of stock

92075B

DAMPER

92075-317

1
Out of stock

114

BOLT-SMALL-UPSET

115C0835

1
Out of stock

180

1

$3.39

In stock

183

BOLT-UPSET-WS-SMALL

183B0816

1
Out of stock

186

BOLT-UPSET-WP

186B0610

1
Out of stock

187

BOLT 6X12

187B0612

1
Out of stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

461

WASHER-SPRING,8MM,BLACK

461K0800

1
Out of stock

701

TUBE-PVC,6X300

701Q06300

1

$3.15

In stock
