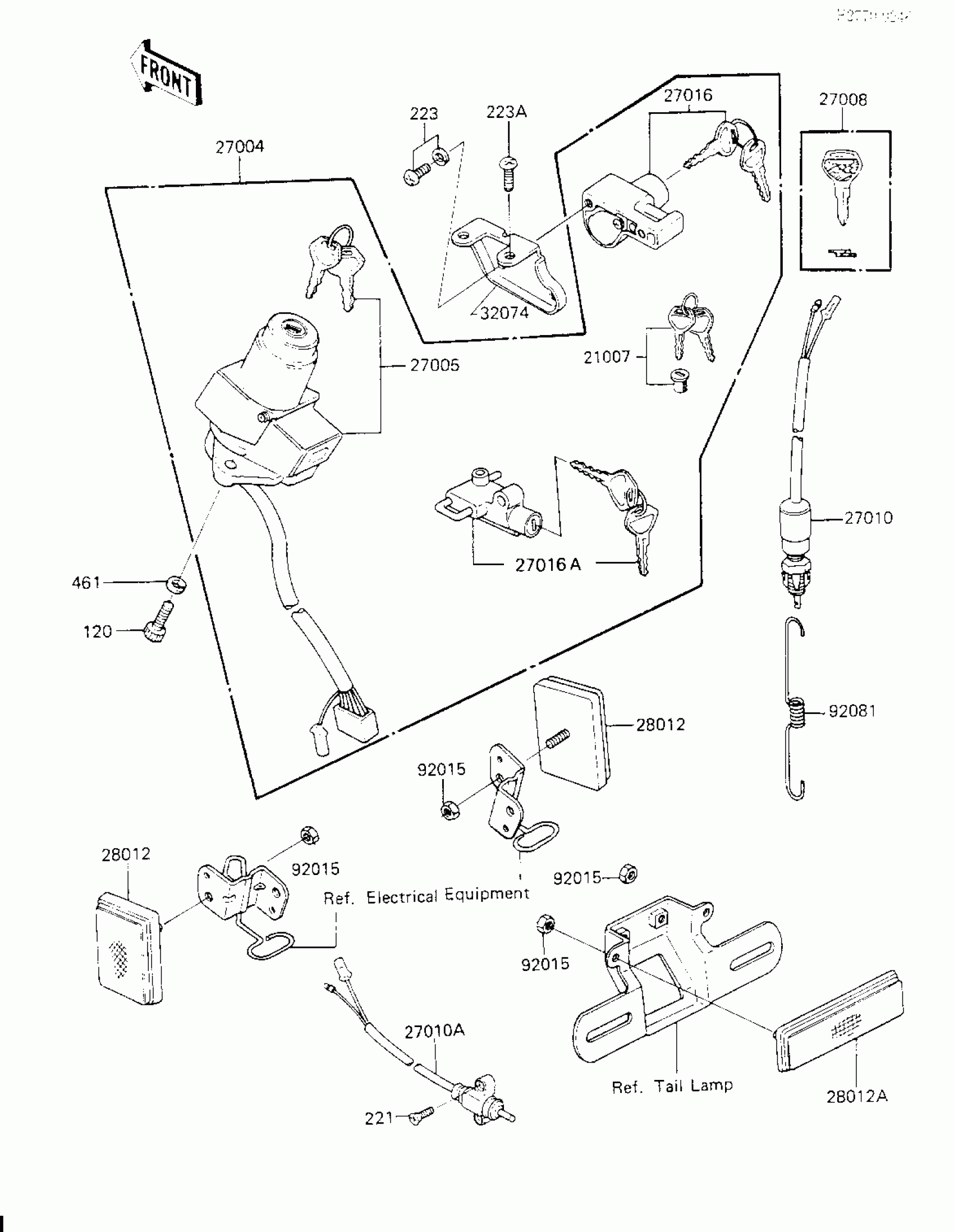

Kawasaki KZ700-A1 IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

21007

ROTOR,LOCK,TANK CAP

21007-5005

$101.48

27004

SWITCH-ASSY,ALL

27004-5205

$476.08

27005

SWITCH-ASSY-IGNITION

27005-5024

$196.81

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,REAR BRAKE

27010-1019

$37.98

27010A

SWITCH,SIDE STAND

27010-1065

$71.36

27016

LOCK ASSY,HELMET

27016-5038

Unavailable

27016A

LOCK-ASSY,SEAT

27016-5049

Unavailable

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX,RR

28012-1005

$28.89

32074

BRACKET-LOCK,HELMET,

32074-1035

$11.58

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92081

SPRING,BRAKE LAMP SWITCH

27011-011

$6.48

120

BOLT-SOCKET,6X16

120S0616

Unavailable

221

SCREW-CSK-CROS

221C0520

$3.24

223

SCREW-PAN-WS-CROS

223D0508

$2.20

223A

SCREW-PAN-WS-CROS

223D0612

$3.25

461

WASHER SPRING 6MM

461F0600

Unavailable
