1984 Kawasaki KZ700-A1 Ignition Diagram

← All diagrams

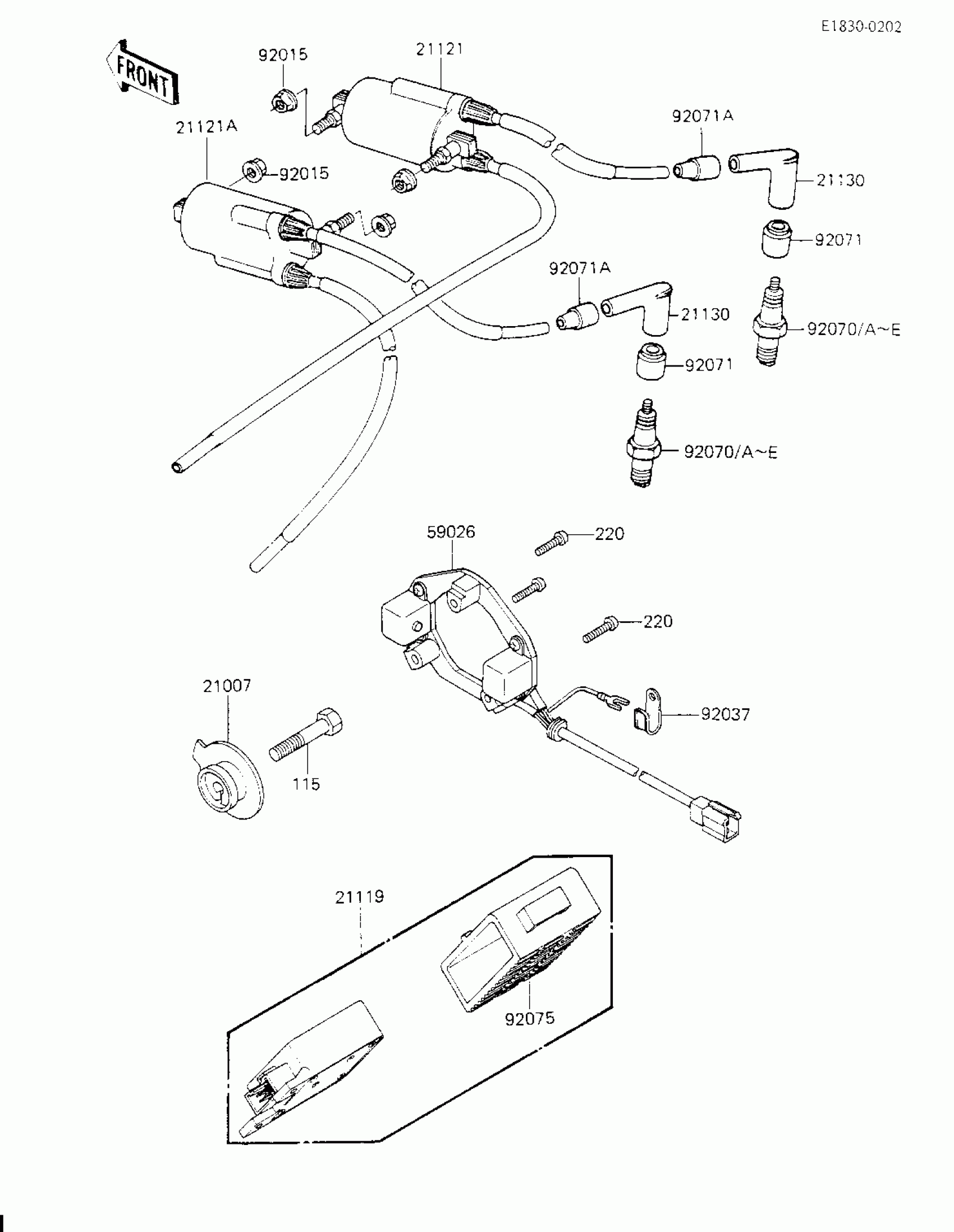

Find the part on the Ignition diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KZ700-A1 Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,PULSING COIL

21007-1108

1

$55.47

In stock

21119

IGNITER

21119-1109

1

$848.25

In stock

21121

COIL,IGNITION #1.#4

21121-1027

1

$259.66

In stock

21121A

COIL,IGNITION #2.#3

21121-1028

1
Out of stock

21130

CAP-SPARK PLUG,RTFM20

21130-1007

1
Out of stock

59026

COIL-PULSING

59026-1058

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92037

1

$3.75

In stock

92070

1

$2.92

In stock

92070A

SPARK PLUG B9ES

B9ES

—
Out of stock

92070B

—

$3.66

In stock

92071

GROMMET,PLUG CAP

21131-004

1

$10.81

In stock

92071A

1

$3.39

In stock

92075

DAMPER,IGNITER

92075-1504

1

$39.52

In stock

115

BOLT-SMALL-UPSET

115G0845

1
Out of stock

220

1

$3.24

In stock
