1984 Kawasaki KZ700-A1 Chassis Electrical Equipment Diagram

← All diagrams

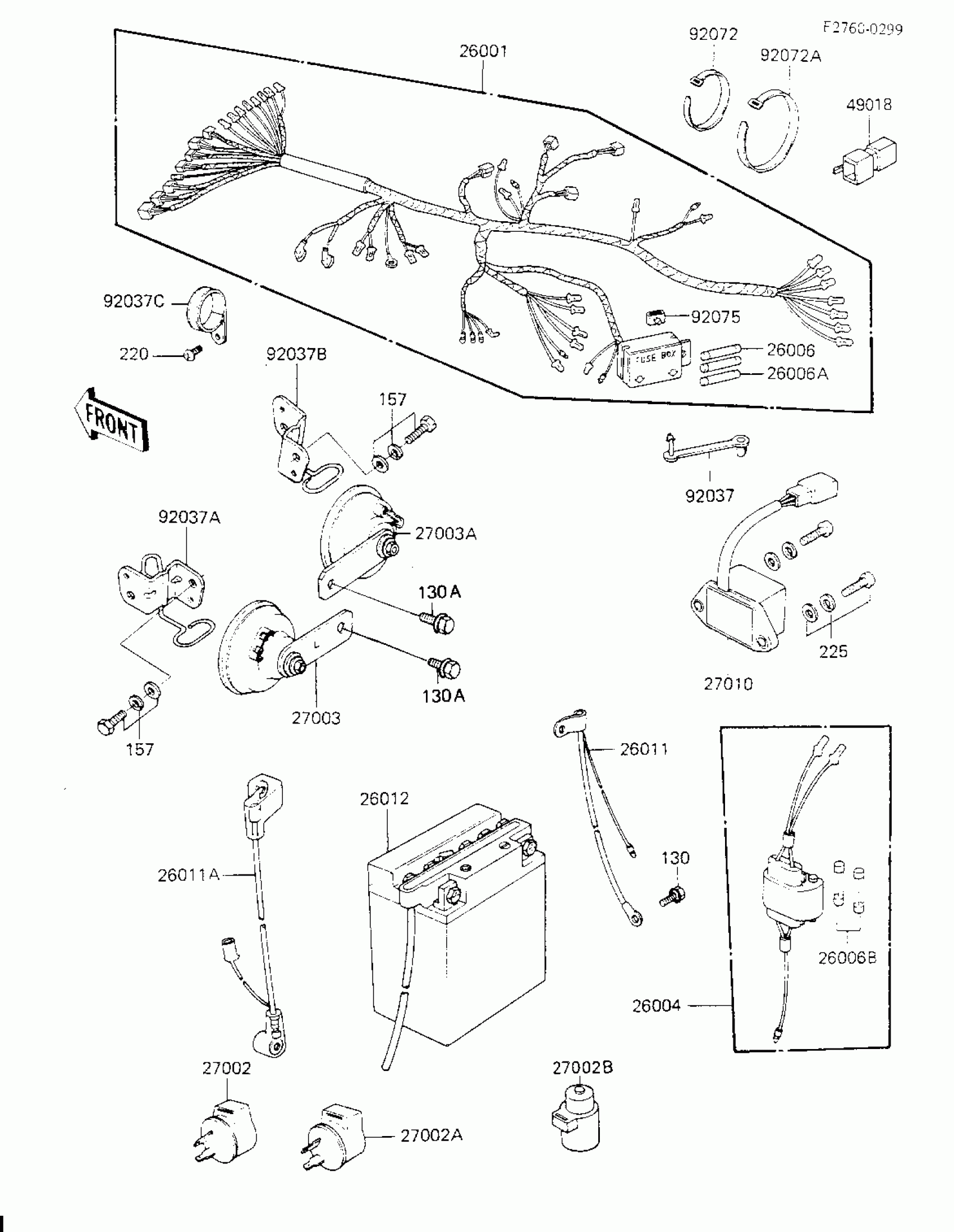

Find the part on the Chassis Electrical Equipment diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KZ700-A1 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001

HARNESS,MAIN

26001-1657

1
Out of stock

26004

FUSE-ASSY,ACCESSORY

26004-1014

1
Out of stock

26006

FUSE,10A,L=25

26006-003

1
Out of stock

26006A

FUSE,20A,L=25

26006-005

1
Out of stock

26006B

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

1
Out of stock

26011

WIRE-LEAD,BATTERY GR

26011-1159

1
Out of stock

26011A

WIRE-LEAD

26011-1174

1
Out of stock

26012

FB BAT FB12A-A

26012-1004

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-011

1
Out of stock

27002A

RELAY,TURN SIGNAL

27002-016

1
Out of stock

27002B

RELAY-ASSY

27002-1051

1
Out of stock

27003

HORN,LH

27003-1057

1
Out of stock

27003A

HORN,RH

27003-1058

1
Out of stock

27010

SWITCH,RESERVE LIGHTING

27010-1069

1
Out of stock

49018

DIODE

49018-1053

1
Out of stock

92037

CLAMP,SPEED,L=43

92037-1290

1
Out of stock

92037A

CLAMP,HORN LEAD WIRE

92037-1322

1
Out of stock

92037B

CLAMP,HORN LEAD WIRE

92037-1323

1
Out of stock

92037C

CLAMP,WIRING HARNESS

92037-1330

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92072A

BAND,L=186

92072-056

1
Out of stock

92075

DAMPER,FUSE

92075-279

1
Out of stock

130

BOLT-FLANGED,6X8

130B0608

1
Out of stock

130A

BOLT-FLANGED,8X12,BLACK

130C0812

1
Out of stock

157

BOLT-WSP

157C0514

1
Out of stock

220

SCREW-PAN-CROS,5X10

220C0510

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock
