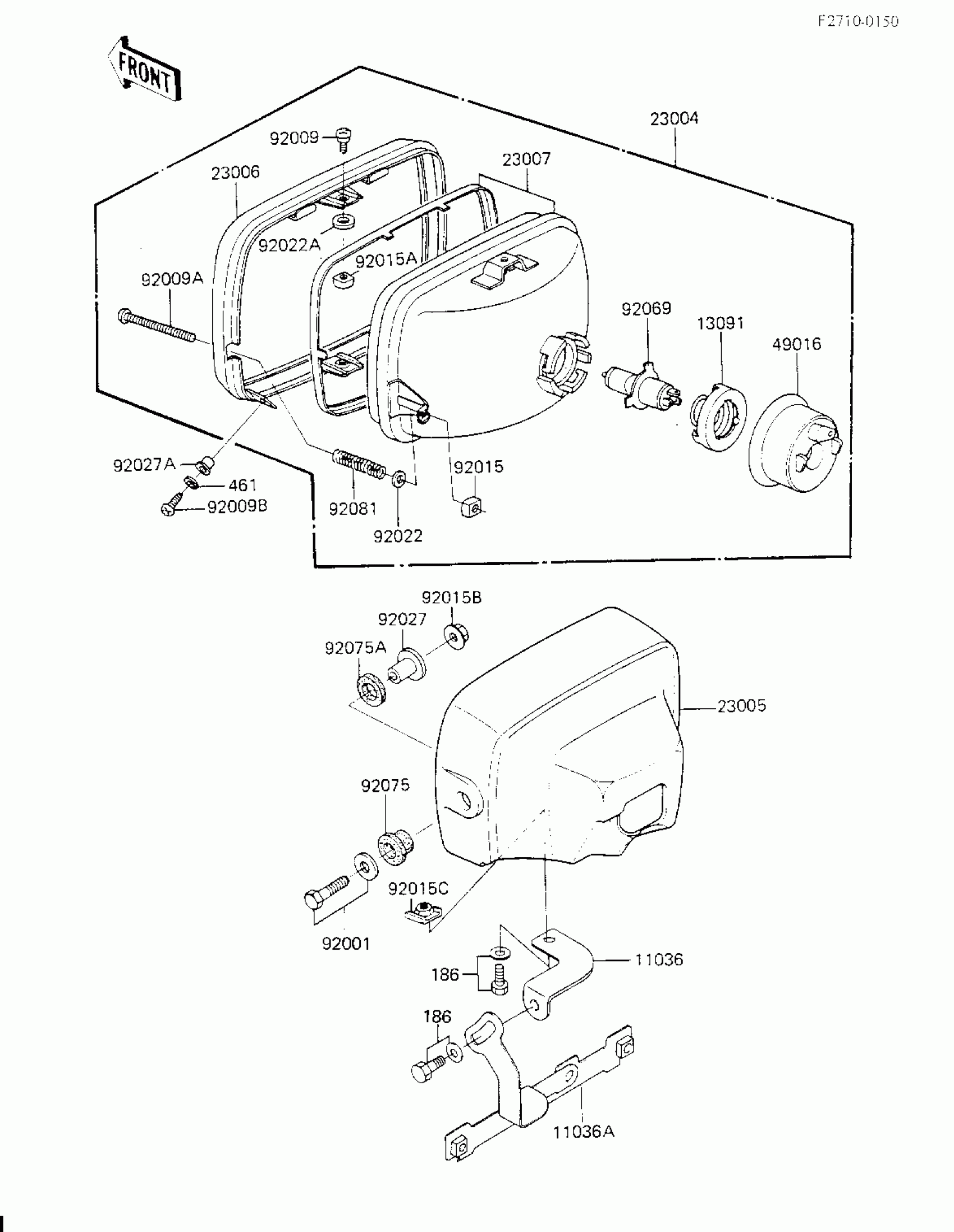

Find the part on the Headlight diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KZ700-A1 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A,HEAD LAMP,

11036-1354

1
Out of stock

11036A

BRACKET-A,HEAD LAMP

11036-1413

1
Out of stock

13091

HOLDER,HEAD LAMP SOCK

13091-1036

1
Out of stock

23004

LAMP-HEAD

23004-1075

1

$563.46

In stock

23005

BODY-COMP-HEAD LAMP,

23005-1024-21

1
Out of stock

23006

RIM,HEAD LAMP

23006-1005

1
Out of stock

23007

LENS-COMP

23007-1041

1

$247.81

In stock

49016

COVER,HEAD LAMP SOCKE

49016-1023

1
Out of stock

92001

BOLT,FLANGED,8X35

92001-1910

1

$5.71

In stock

92009

1

$4.78

In stock

92009A

SCREW,4MM,FOCUS ADJUST

92009-1047

1
Out of stock

92009B

SCREW,5X16

92009-1693

1
Out of stock

92015

1

$3.69

In stock

92015A

NUT,5MM

23020-023

1
Out of stock

92015B

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015C

NUT,HEAD LAMP BODY FT

92015-1050

1
Out of stock

92022

WASHER,4.1X8X0.8

23021-004

1
Out of stock

92022A

WASHER,PLAIN,5MM

23021-012

1
Out of stock

92027

COLLAR,L=20

92027-1131

1

$8.71

In stock

92027A

1

$3.92

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

1

$5.42

In stock

92075A

1

$4.42

In stock

92081

1

$4.10

In stock

186

BOLT-UPSET-WP,6X14

186C0614

1
Out of stock

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock
