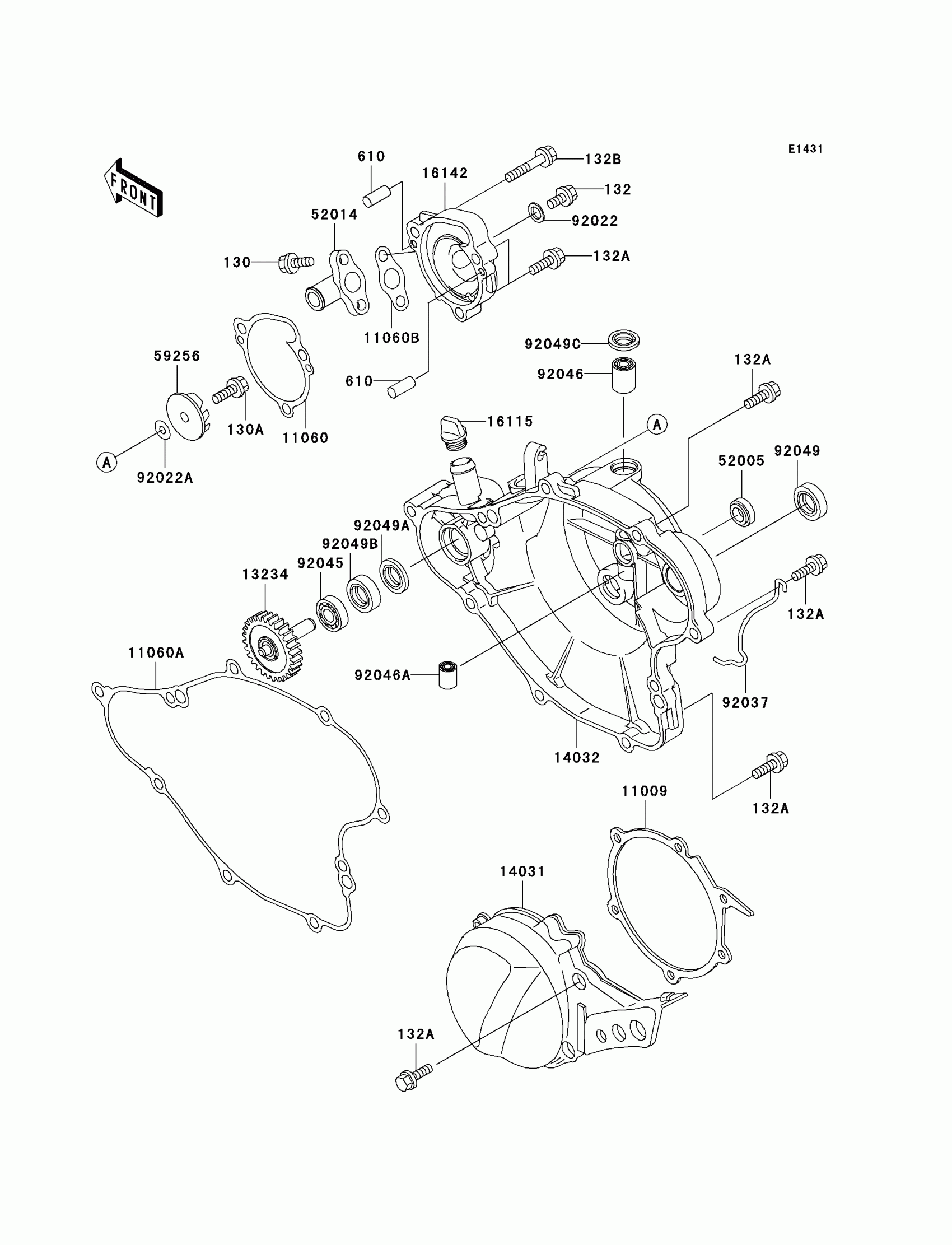

Kawasaki KX65 Engine Cover(s) Diagram

#

Description
Price

130

BOLT-FLANGED

130G0516

Unavailable

130A

BOLT-FLANGED

130P0510

Unavailable

132

BOLT-FLANGED-SMALL,6X8

132G0608

Unavailable

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X60

132G0660

Unavailable

610

ROLLER,4X8

610A0408

$3.29

11009

GASKET,GENERATOR COVER

11009-1974

$17.53

11060

GASKET,PUMP COVER

11060-1924

$5.85

11060A

GASKET,CLUTCH COVER

11060-1925

Unavailable

11060B

GASKET,ELBOW

11060-1927

$2.20

13234

SHAFT-COMP,PUMP

13234-1110

$61.54

14031

COVER-GENERATOR

14031-1215

Unavailable

14032

COVER-CLUTCH

14032-1501

$208.48

16115

CAP-OIL FILLER

16115-018

$8.04

16142

COVER-PUMP

16142-1158

$85.33

52005

GAUGE,OIL LEVEL

52005-1055

$11.20

52014

ELBOW

52014-1094

$16.64

59256

IMPELLER

59256-1064

$32.28

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,5.2X13X1

92022-1380

$3.29

92037

CLAMP,TUBE

92037-1236

$10.25

92045

BEARING-BALL,608MC3

92045-1305

$9.41

92046

BEARING-NEEDLE,HK1010FM

92046-1160

$12.58

92046A

BEARING-NEEDLE,6BTM109

92046-1217

$16.10

92049

SEAL-OIL,SB16244

92049-002

$6.75

92049A

SEAL-OIL,MH8X18X3.5-A

92049-1359

$7.08

92049B

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$13.54

92049C

SEAL-OIL,BG1408F0

92049-1414

$4.18
