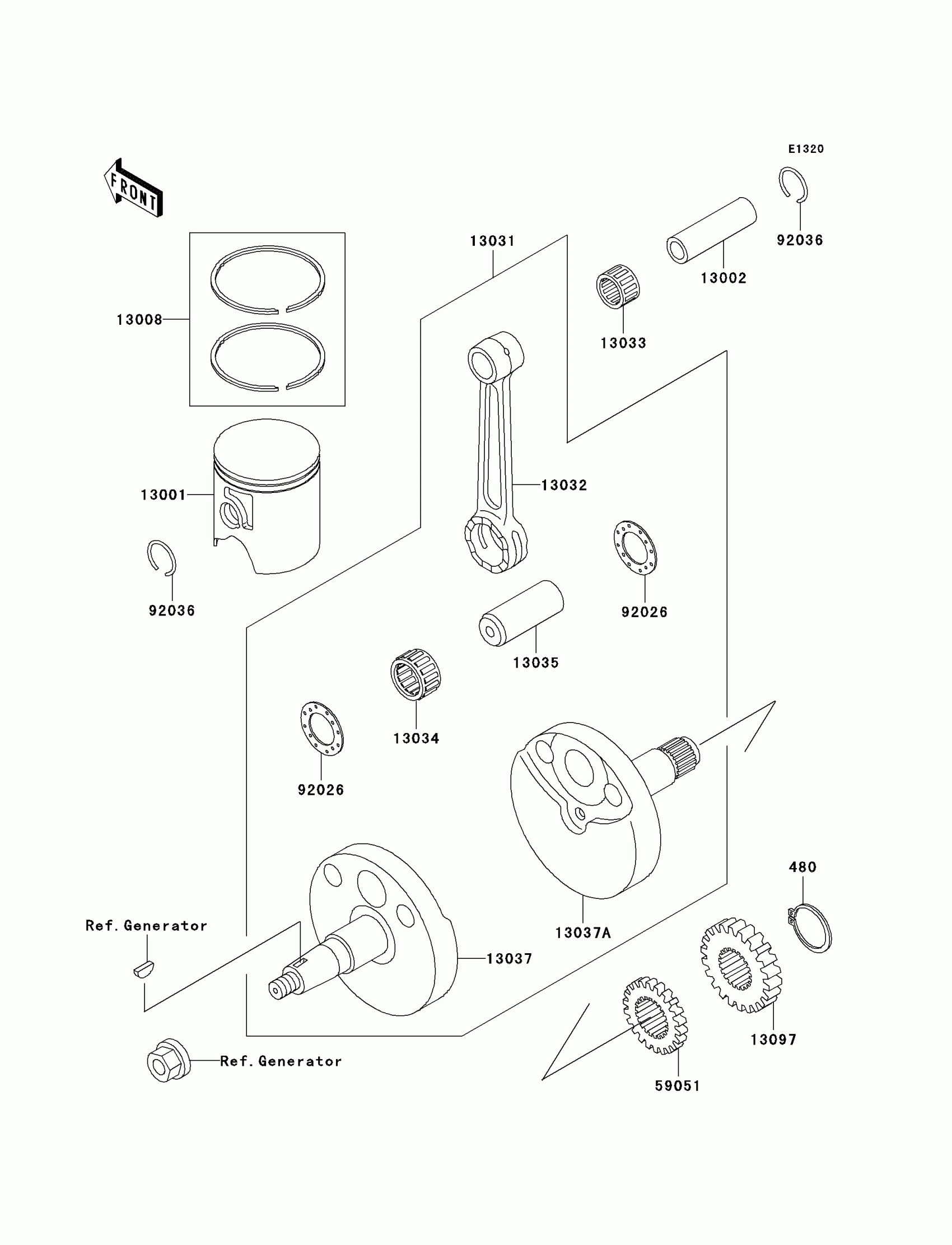

Kawasaki KX65 Crankshaft/Piston(s) Diagram

Description

Price

480

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

13001

PISTON-ENGINE

13001-1630

Unavailable

13002

PIN-PISTON

13002-1119

$15.12

13008

RING-SET-PISTON

13008-1199

$41.03

13031

CRANKSHAFT-COMP

13031-1467

$383.04

13032

ROD-CONNECTING

13032-1246

$40.40

13033

BEARING-NEEDLE,72KTV030

13033-028

Unavailable

13034

BEARING-BIG END,B4

13034-1107

$68.40

13035

PIN-CRANK

13035-1002

$23.73

13037

CRANKSHAFT,LH

13037-1615

$170.23

13037A

CRANKSHAFT,RH

13037-1616

$191.03

13097

GEAR-PRIMARY SPUR,22T

13097-1413

$82.19

59051

GEAR-SPUR,PUMP,23T

59051-1146

$30.97

92026

SPACER

92026-1522

$8.93

92036

RING-SNAP,PISTON PIN

92036-007

$3.10
