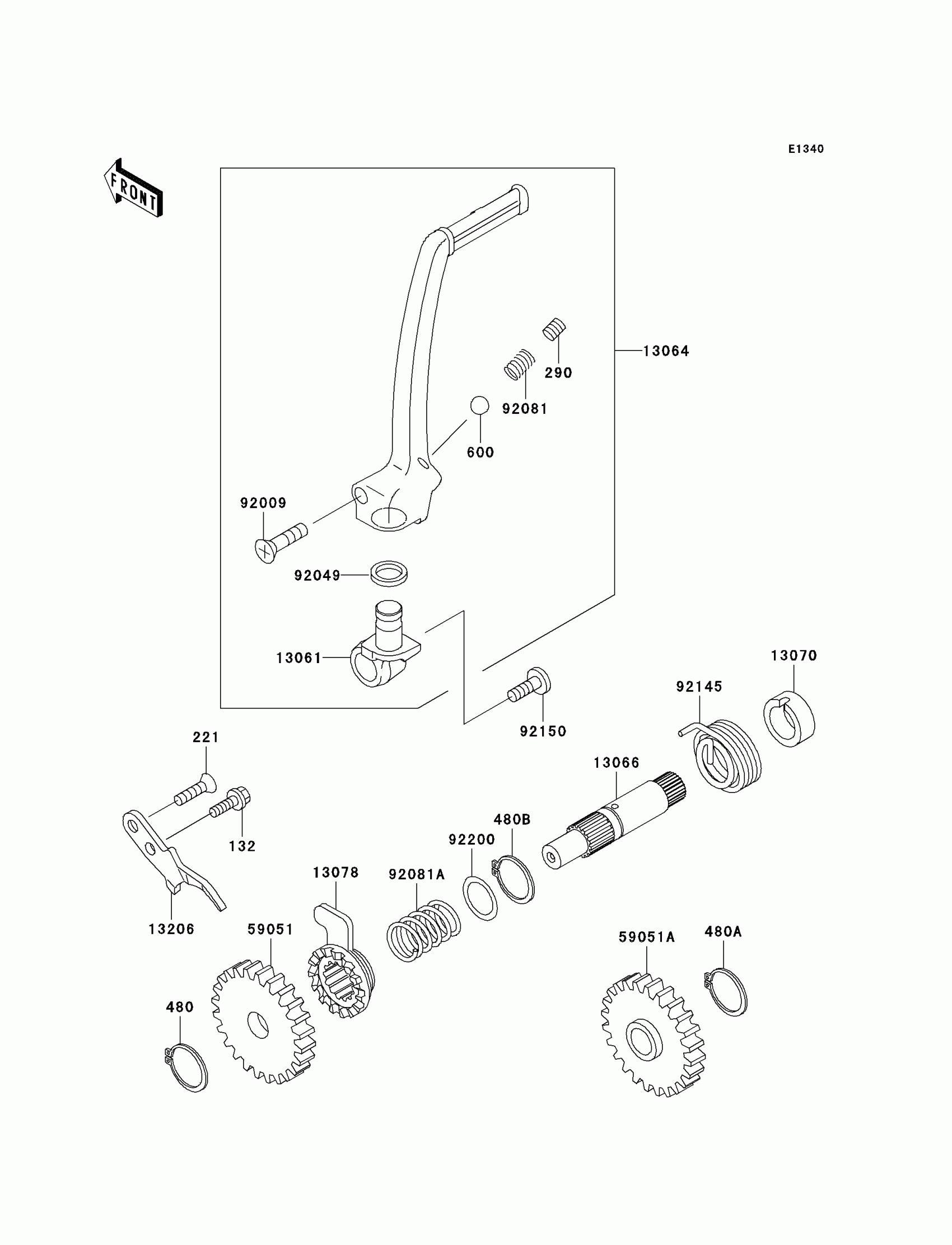

Kawasaki KX65 Kickstarter Mechanism Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

221

SCREW-CSK-CROS,6X18

221B0618

Unavailable

290

SCREW-SET-SOCKET,8X8

290P0808

Unavailable

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

480A

CIRCLIP-TYPE-C,15MM

480J1500

$1.60

480B

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

600

BALL-STEEL,1/4

600A0800

$0.59

13061

BOSS,KICK PEDAL

13061-1712

$36.33

13064

LEVER-ASSY-KICK,PEDAL

13064-1196

$87.23

13066

SHAFT-KICK

13066-1097

$87.38

13070

GUIDE

13070-1314

$5.37

13078

RATCHET

13078-1004

$60.14

13206

GUIDE-KICK

13206-1067

$7.29

59051

GEAR-SPUR,32T

59051-1026

$52.72

59051A

GEAR-SPUR,30T

59051-1027

$66.46

92009

SCREW,6X27

92009-1607

$6.55

92049

SEAL-OIL,SR12162.5

92049-1468

$5.42

92081

SPRING,KICK PEDAL

92081-020

$3.25

92081A

SPRING,RATCHET

92081-122

$6.70

92145

SPRING

92145-1058

$11.13

92150

BOLT,SOCKET,6X16

92150-1673

Unavailable

92200

WASHER,KICKSHAFT

92200-1209

$5.42
