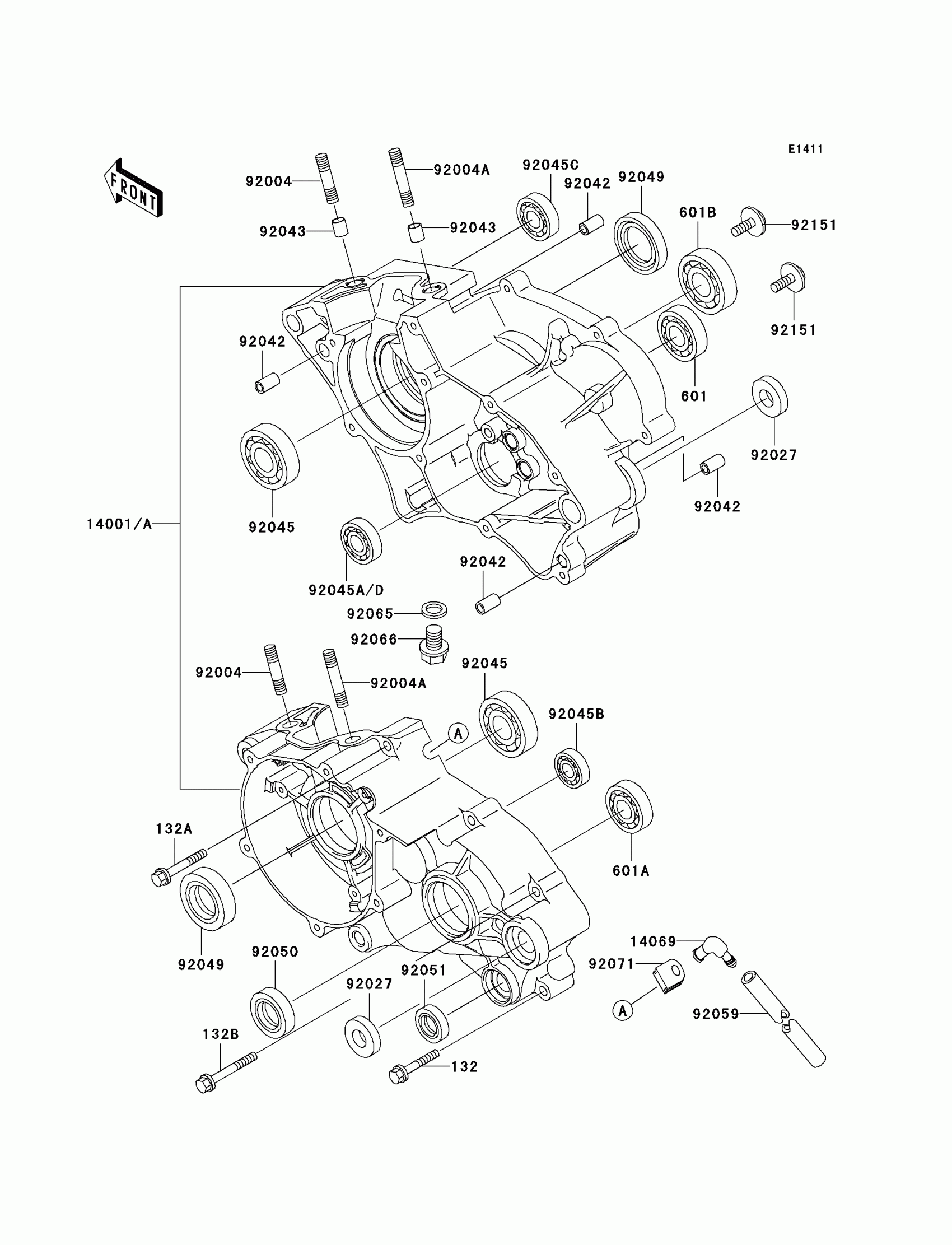

Kawasaki KX65 Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X35

132G0635

Unavailable

132A

BOLT-FLANGED-SMALL,6X40

132G0640

Unavailable

132B

BOLT-FLANGED-SMALL,6X55

132G0655

Unavailable

601

BEARING-BALL,#6002

601A6002

$9.21

601A

BEARING-BALL,#6004

601A6004

$9.42

601B

BEARING-BALL,#6203

601A6203

$11.12

14001A

SET-CRANKCASE

14001-1318

$498.91

14069

BREATHER,CRANKCASE

14069-002

$22.77

92004

STUD,8X28.5

92004-1245

$4.92

92004A

STUD,8X37

92004-1246

$4.92

92027

COLLAR,12.1X26X6

92027-1744

$10.93

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.51

92043

PIN,8.2X10X14

92043-1264

$0.53

92045

BEARING-BALL,R-6304C3

92045-1059

$27.96

92045B

BEARING-BALL,6001C3ML01

92045-1235

$12.85

92045C

BEARING-BALL,626MC3

92045-1304

$9.41

92045D

BEARING-BALL,6805JRZ

92045-1432

$29.77

92049

SEAL-OIL,SD20407GS

92049-1188

$14.11

92050

SEAL-OIL,SC25376

92050-013

$11.26

92051

SEAL-OIL,TB13225.5

92051-005

$6.16

92059

TUBE,6X9X280

92059-1074

$14.65

92065

GASKET,10.5X16X1

92065-058

$3.16

92066

PLUG,DRAIN

92066-1437

$5.15

92071

GROMMET,BREATHER

92071-042

$3.39

92151

BOLT,6X16

92151-1762

$1.56
