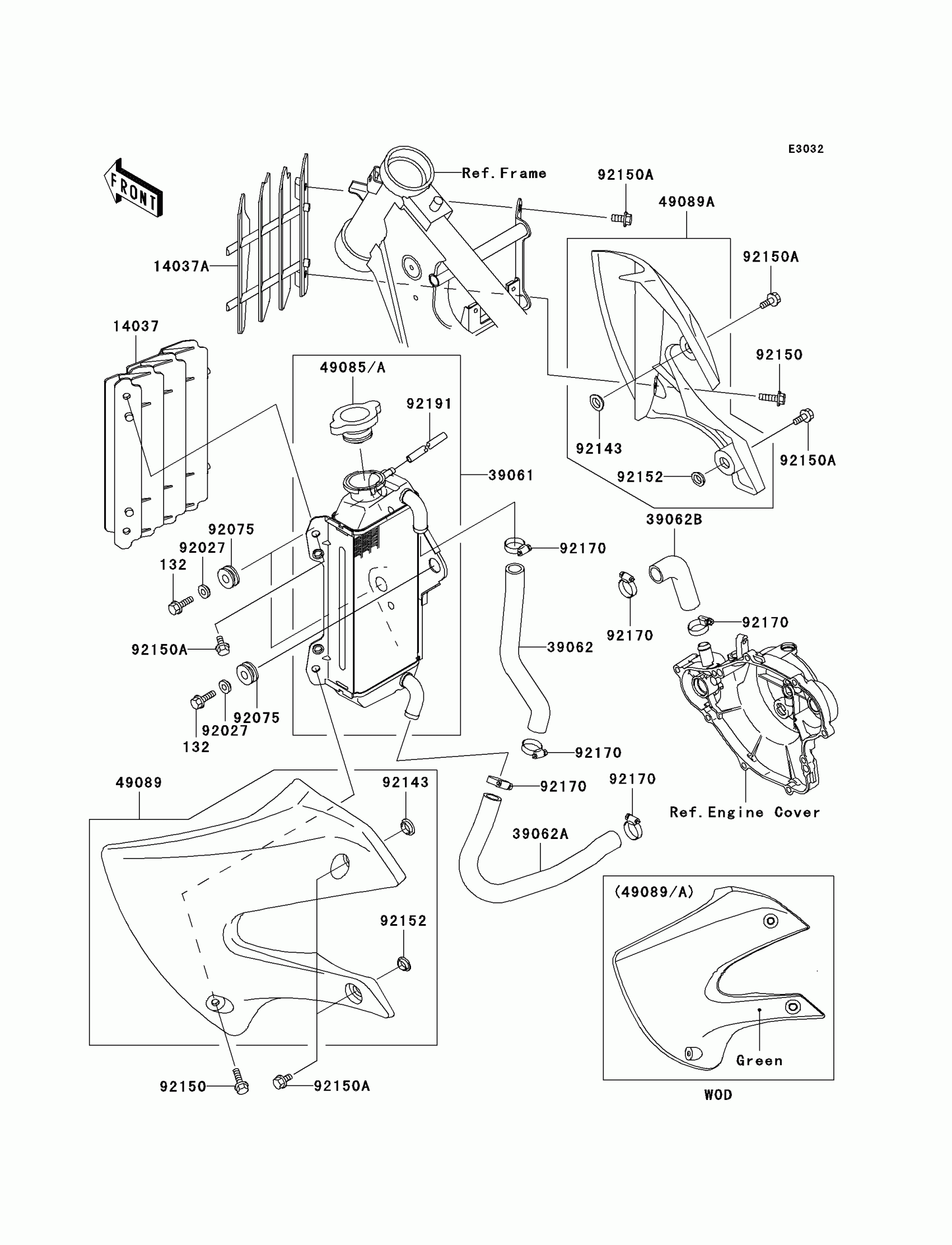

Kawasaki KX65 Radiator Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

14037

SCREEN,LH,WHITE

14037-1266-RZ

$23.81

14037A

SCREEN,RH,WHITE

14037-1274-RZ

Unavailable

39061

RADIATOR-ASSY

39061-1277

$514.08

39062

HOSE-COOLING,HEAD-RADIATOR

39062-1808

$14.31

39062A

HOSE-COOLING,PUMP-RADIATOR

39062-1809

$20.24

39062B

HOSE-COOLING,PIPE-CYLINDER

39062-1810

$8.24

49085

CAP-ASSY-PRESSURE,P1.1

49085-1076

$51.63

49085A

CAP-ASSY-PRESSURE,P1.8

49085-1077

$51.63

49089

SHROUD-ENGINE,LH,L.GREEN

49089-1144-6W

$46.39

49089A

SHROUD-ENGINE,RH,L.GREEN

49089-1145-6W

Unavailable

92027

COLLAR

92027-194

$4.18

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92143

COLLAR

92143-1196

$3.57

92150

BOLT,6X20

92150-1339

$3.35

92150A

BOLT,6X12

92150-1435

$3.29

92152

COLLAR

92152-1235

$3.15

92170

CLAMP

92170-1283

$10.33

92191

TUBE

92191-1434

$11.05
