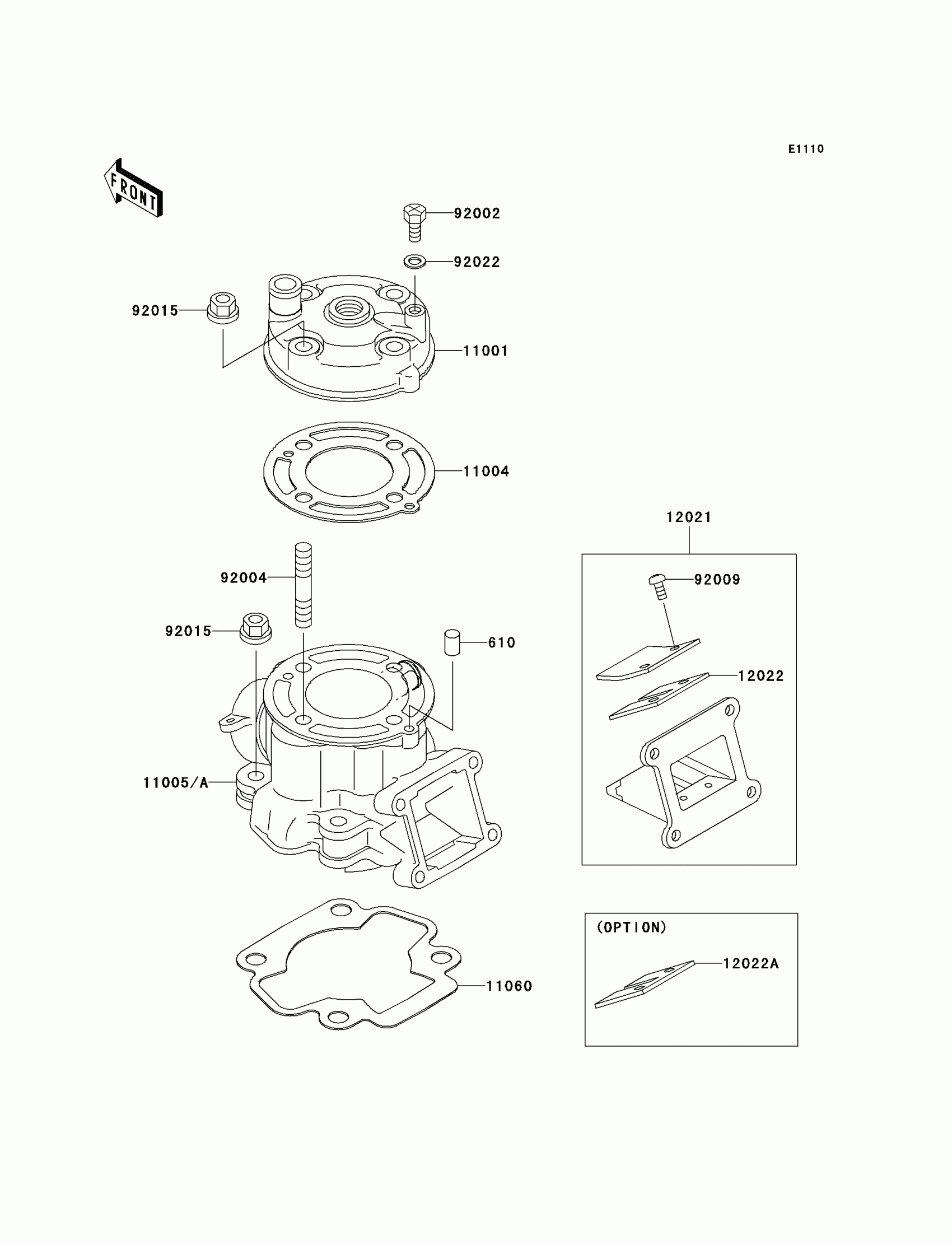

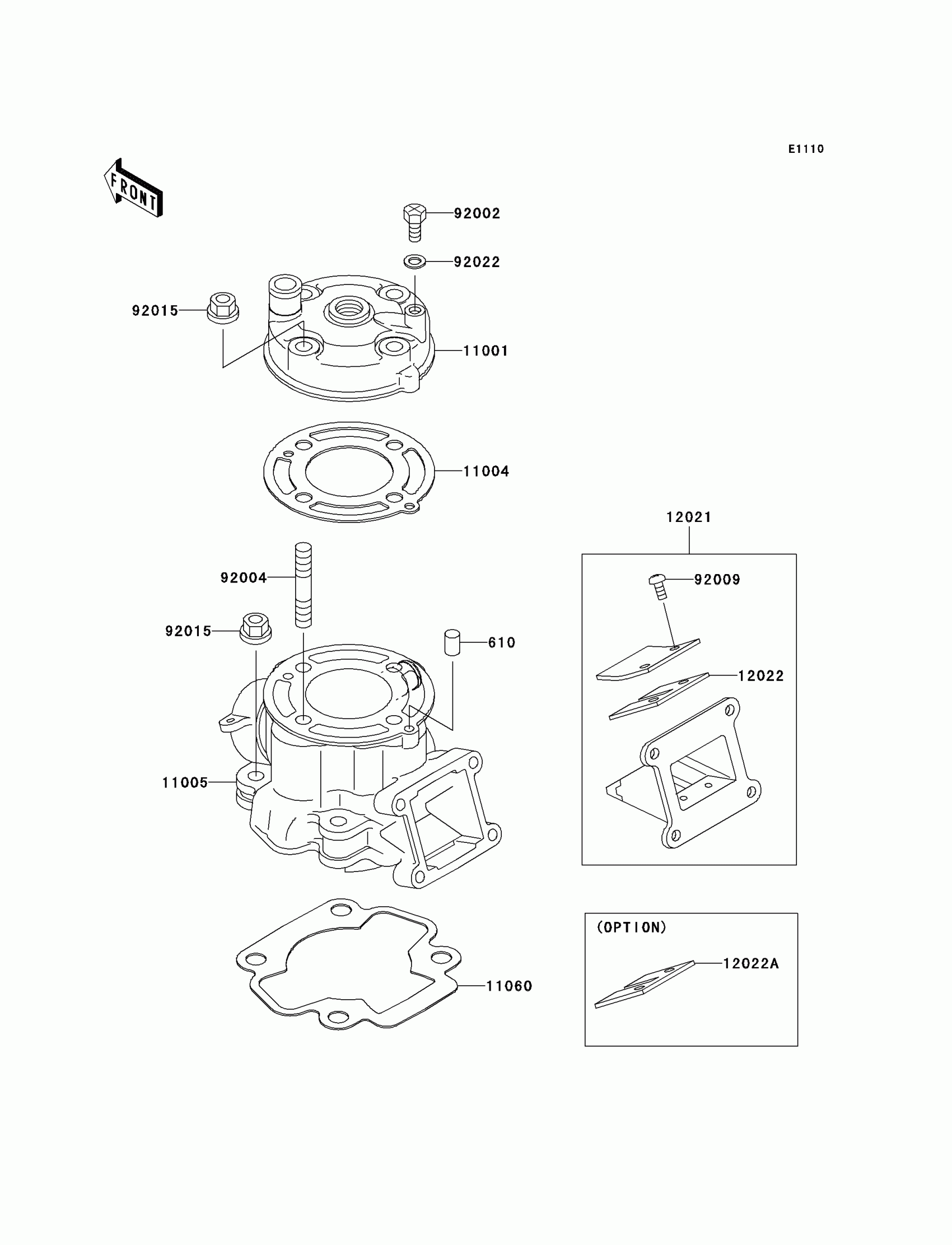

Kawasaki KX65 Cylinder Head/Cylinder Diagram

Description

Price

610

ROLLER,4X8

610A0408

$3.43

11001

HEAD-CYLINDER

11001-1516

$196.24

11004

GASKET-HEAD

11004-1346

$29.58

11005A

CYLINDER-ENGINE

11005-1973

$542.68

11060

GASKET,CYLINDER BASE,T=0.37

11060-1921

$9.84

12021

VALVE-ASSY-REED

12021-1015

$137.24

12022

VALVE-REED,T=0.42

12022-1013

$17.85

12022A

VALVE-REED,T=0.37,CARBON

12022-1087

$53.15

92002

BOLT,6X10

92002-1222

$6.44

92004

STUD,8X30

92004-1069

$5.98

92009

SCREW,REED VALVE

92009-1014

$2.05

92015

NUT,8MM

92015-1143

$0.66

92022

WASHER,6.2X11X1

92022-304

$2.92
