Partiron

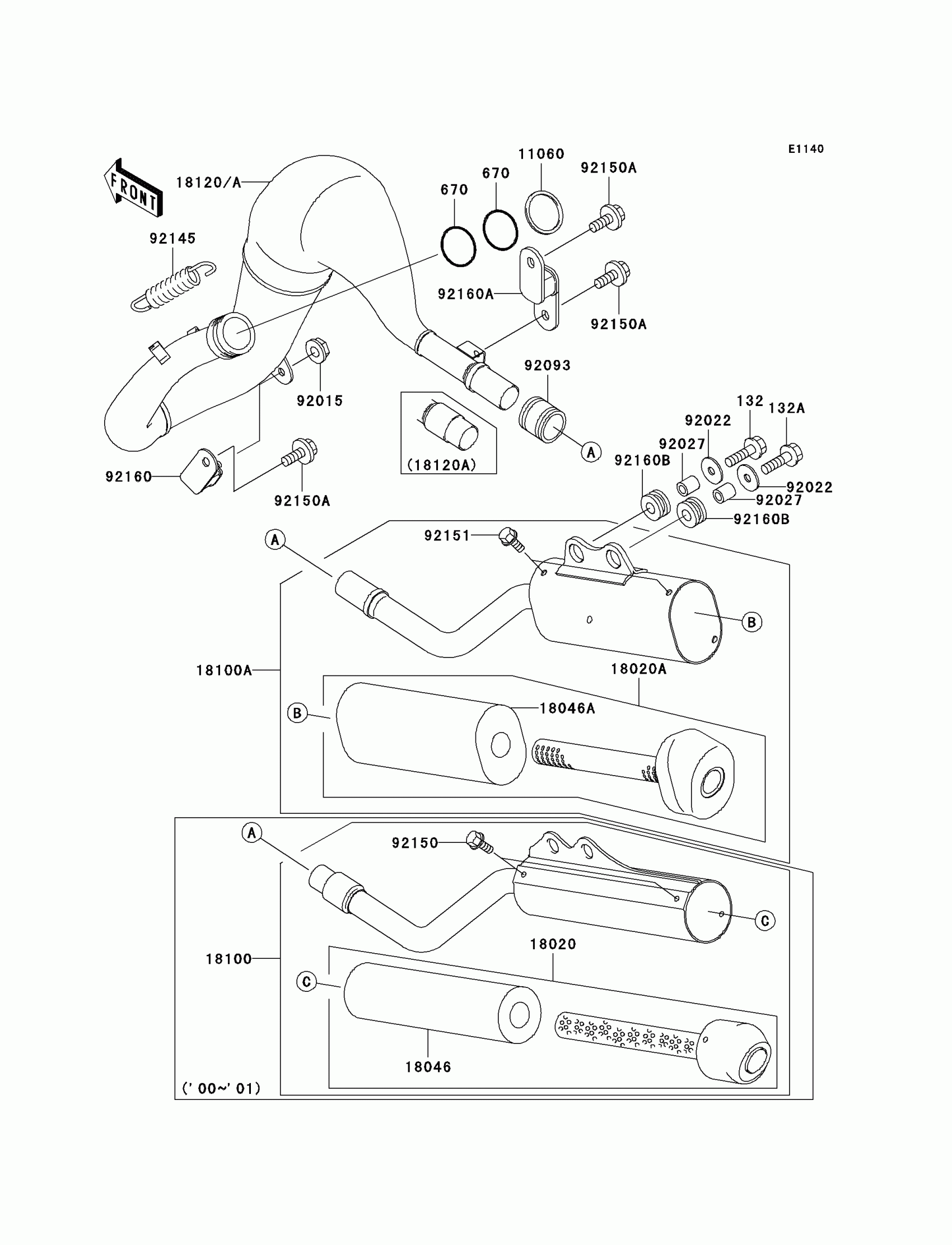

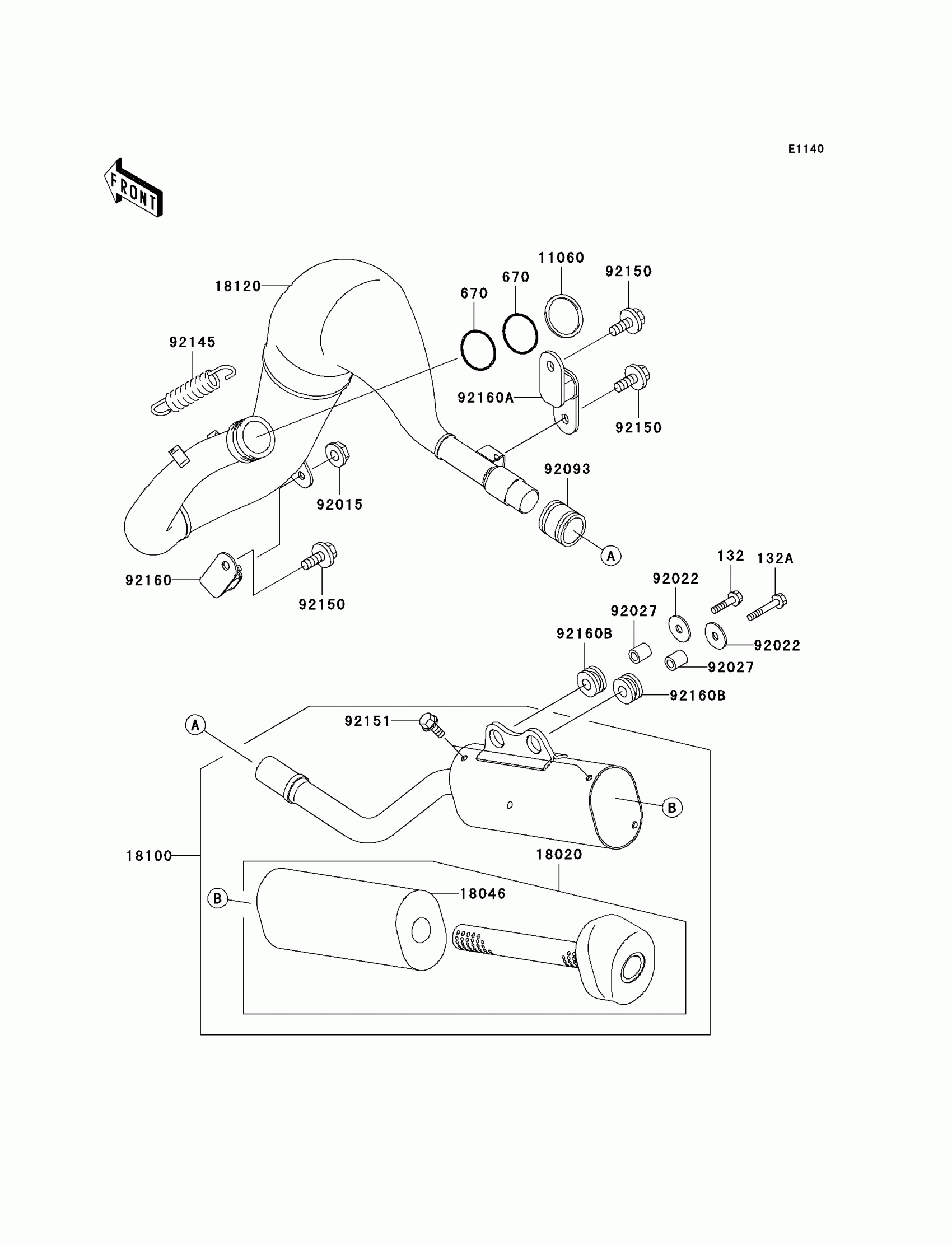

Kawasaki KX65 Muffler(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X35

132G0635

Unavailable

670

O RING,32MM

670E3032

$9.95

11060

GASKET,EXHAUST

11060-1922

$8.24

18020A

BAFFLE

18020-1284

$149.37

18046A

WOOL,BAFFLE

18046-1587

$85.05

18100A

BODY-ASSY-MUFFLER

18100-1092

$196.37

18120A

CHAMBER-EXHAUST

18120-1116

$314.01

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X22X1.6

92022-237

$2.99

92027

COLLAR,6.8X10X11.5

92027-1210

$7.83

92093

SEAL

92093-1511

$13.27

92145

SPRING,EXHAUST CONNECTING

92145-1340

$10.19

92150A

BOLT,6X12

92150-1435

$3.29

92151

BOLT,FLANGED,6X10

92151-1822

$1.51

92160

DAMPER,MUFFLER,FR

92160-1176

$25.03

92160A

DAMPER,MUFFLER,RR

92160-1201

$25.03

92160B

DAMPER

92160-1913

$1.89
