2006 Kawasaki KX450F Oil Pump Diagram

← All diagrams

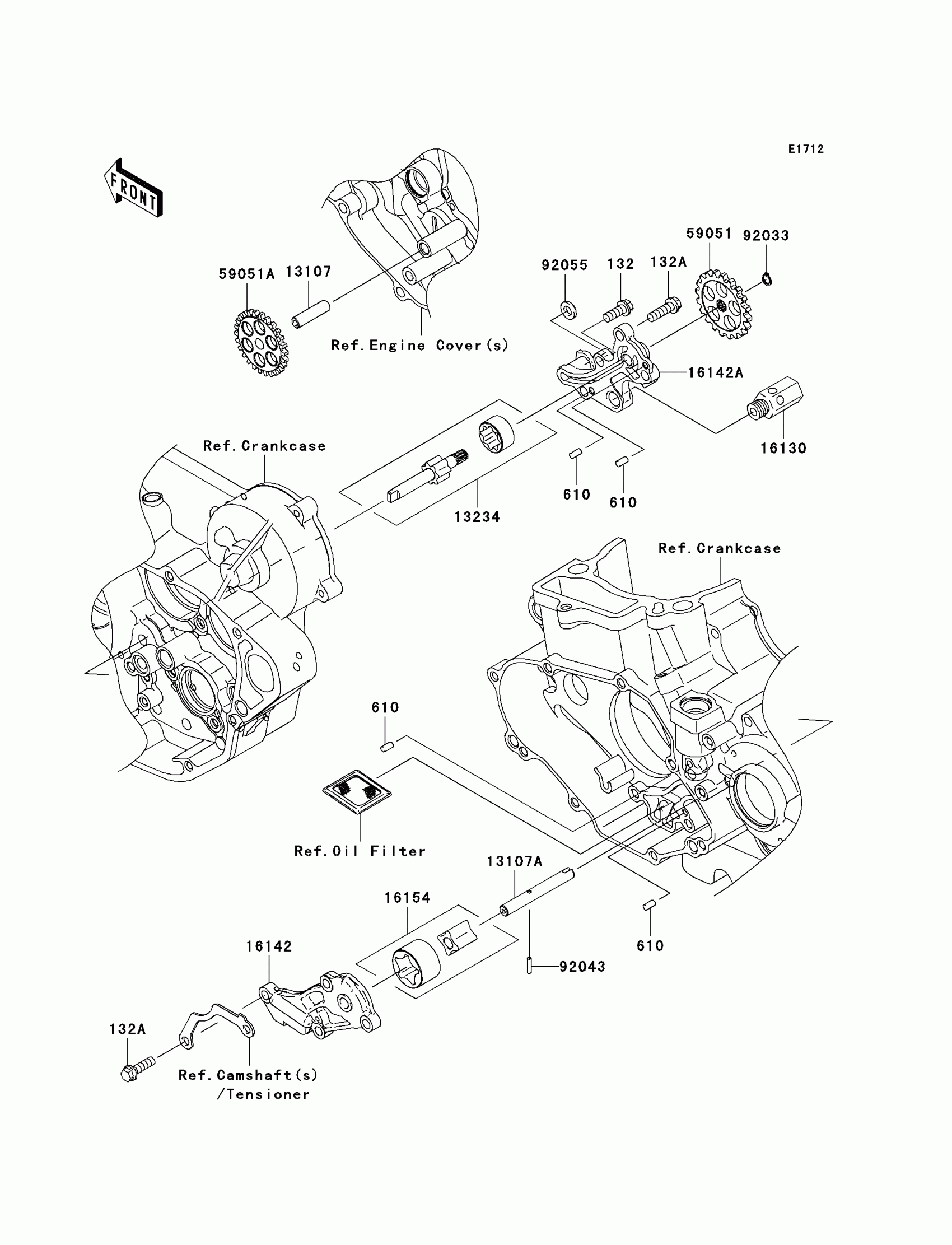

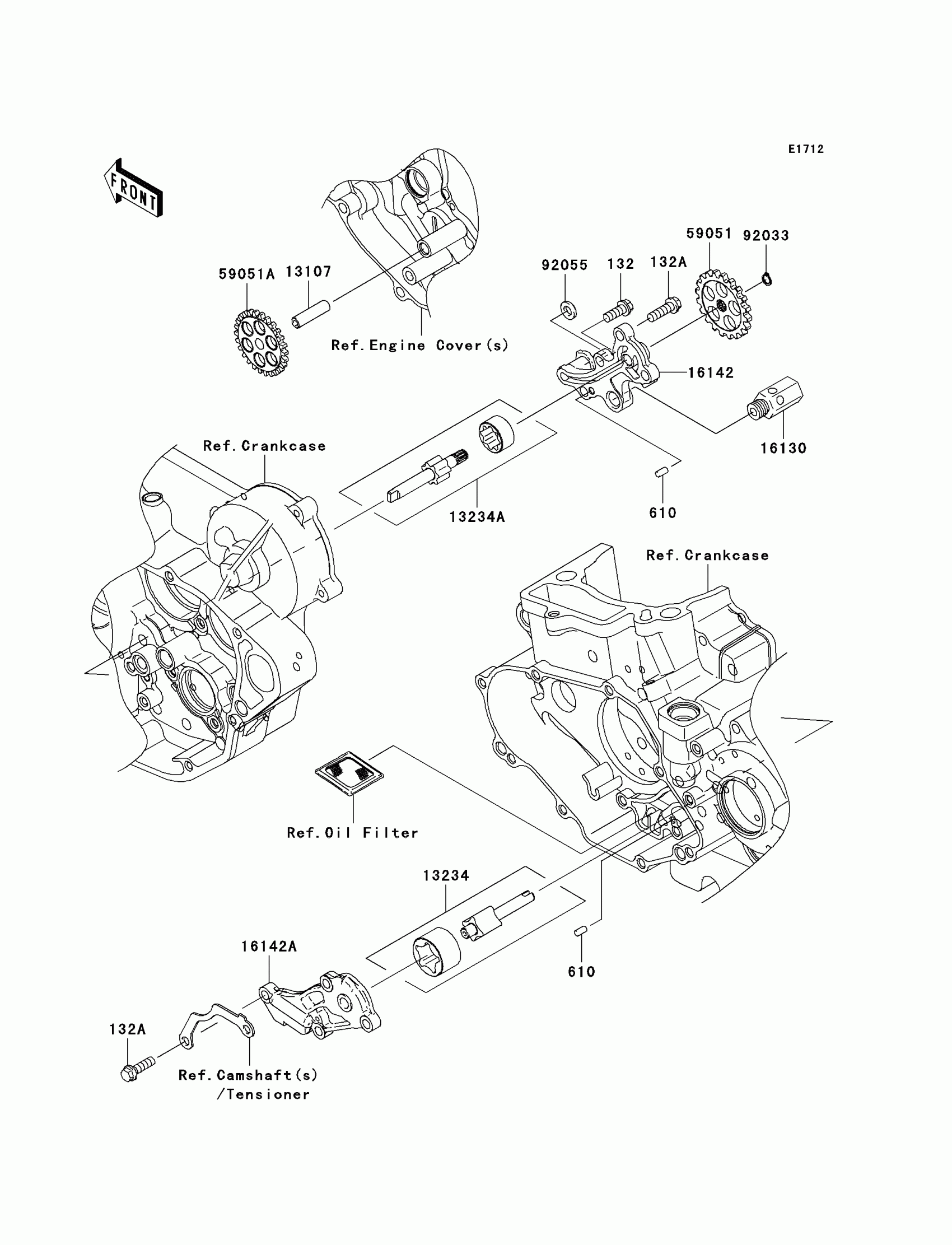

Find the part on the Oil Pump diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Kawasaki KX450F Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock

13107

SHAFT

13107-0056

1

$7.61

In stock

13234

SHAFT-COMP,SCAVENGE

13234-0013

1

$71.77

In stock

13234A

SHAFT-COMP,FEED

13234-0014

1

$114.09

In stock

16130

VALVE-ASSY-RELIEF

16130-1058

1

$38.20

In stock

16142

COVER-PUMP,OIL,RH

16142-0031

1

$38.40

In stock

16142A

COVER-PUMP,OIL,LH

16142-0035

1

$46.13

In stock

59051

1

$27.56

In stock

59051A

1

$41.29

In stock

92033

RING-SNAP

92033-0019

1

$1.20

In stock

92055

RING-O,OD=13

92055-074

1

$6.82

In stock
