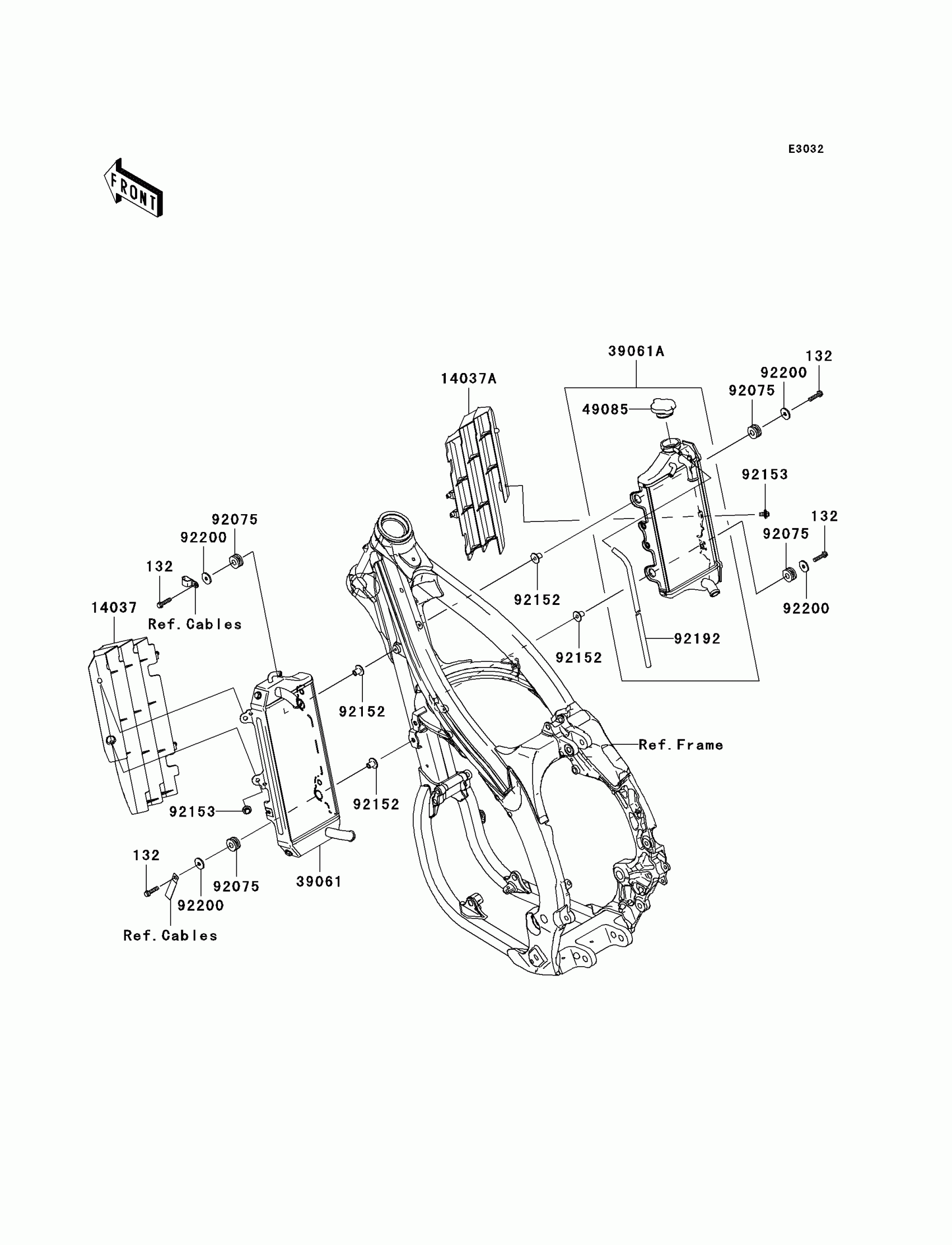

Find the part on the Radiator diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Kawasaki KX450F Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X25

132L0625

1
Out of stock

14037

SCREEN,LH,WHITE

14037-0036-RZ

1

$37.79

In stock

14037A

SCREEN,RH,WHITE

14037-0037-RZ

1

$37.79

In stock

39061

RADIATOR-ASSY,LH

39061-0052

1

$392.71

In stock

39061A

RADIATOR-ASSY,RH

39061-0053

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1078

1

$47.06

In stock

92075

1

$3.72

In stock

92152

COLLAR,6.3X9.5(20)X14.2

92152-0379

1
Out of stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92192

TUBE,6X9X640

92192-0167

1
Out of stock

92200

WASHER,6.5X22X2.3

92200-0271

1
Out of stock
