2006 Kawasaki KX450F Oil Filter Diagram

← All diagrams

Find the part on the Oil Filter diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

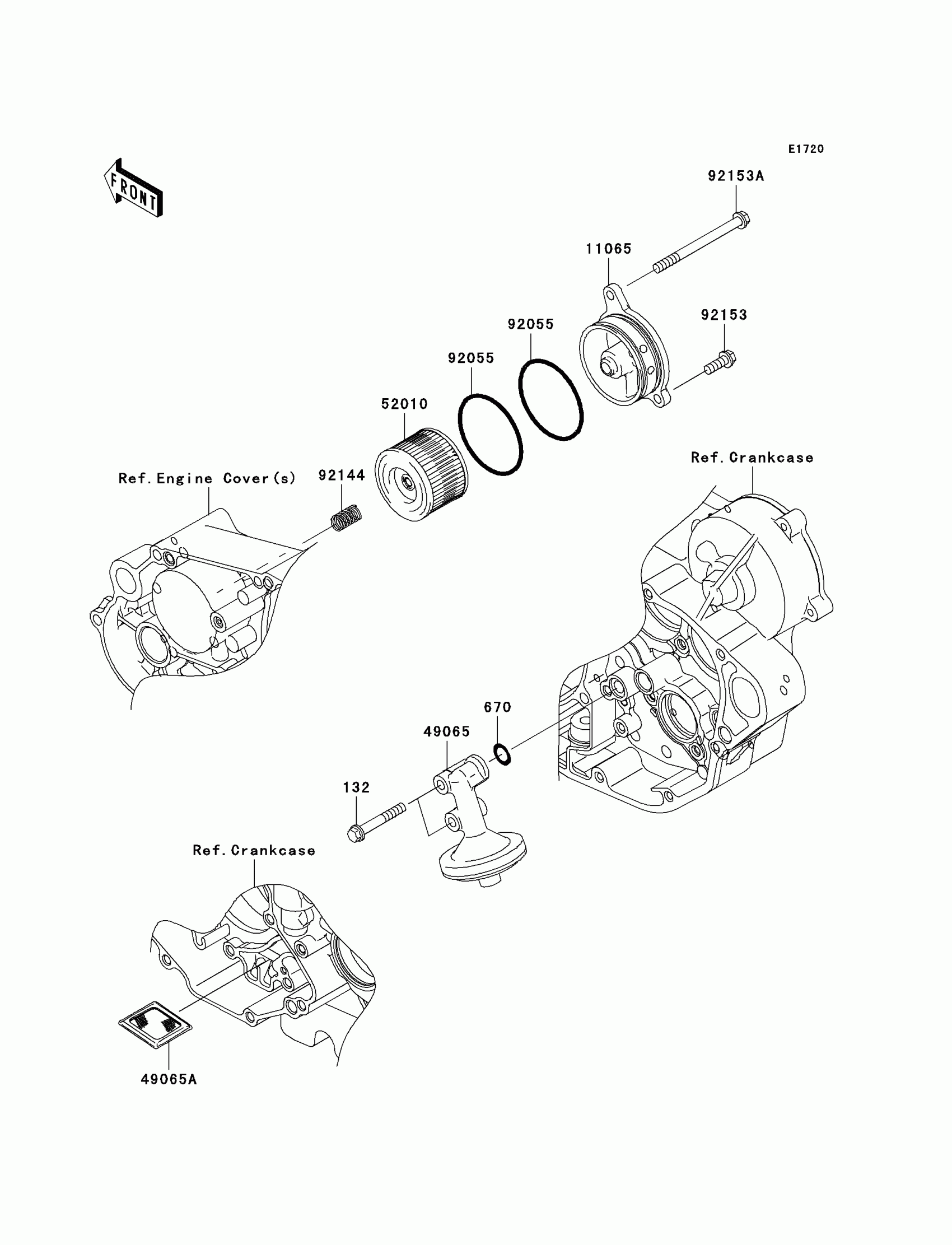

2006 Kawasaki KX450F Oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X40

132G0640

1
Out of stock

670

O RING,10MM

670D2010

1

$1.63

In stock

11065

CAP,OIL FILTER

11065-0107

1

$42.07

In stock

49065

FILTER-OIL

49065-0006

1

$34.85

In stock

49065A

FILTER-OIL

49065-0010

1

$15.86

In stock

52010

ELEMENT-OIL FILTER

52010-1053

1

$7.23

In stock

92055

RING-O,52.6X2.4

92055-1577

1

$3.72

In stock

92144

SPRING

92144-1761

1

$3.69

In stock

92153

BOLT,6X16

92153-0695

1
Out of stock

92153A

BOLT,6X75

92153-0862

1
Out of stock
