2006 Kawasaki KX450F Cylinder Head Diagram

← All diagrams

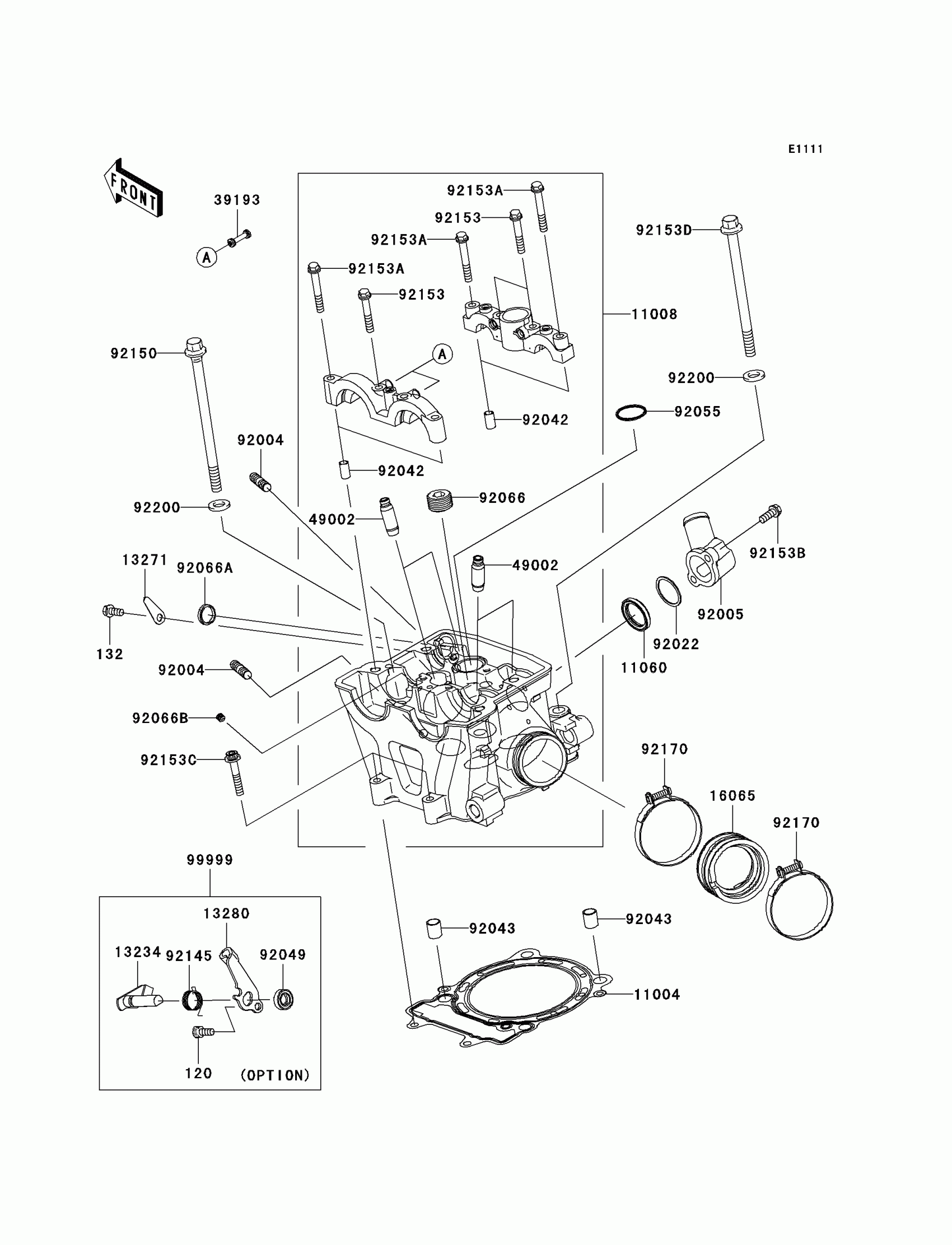

Find the part on the Cylinder Head diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Kawasaki KX450F Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120P0612

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132L0612

1
Out of stock

11004

GASKET-HEAD

11004-0045

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0086

1

$1,031.85

In stock

11060

GASKET,THERMOSTAT

11060-1300

1

$5.15

In stock

13234

SHAFT-COMP,DECOMP

13234-0009

1

$32.59

In stock

13271

PLATE

13271-0675

1
Out of stock

13280

HOLDER,DECOMP

13280-0038

1

$7.47

In stock

16065

HOLDER-CARBURETOR

16065-0021

1

$13.85

In stock

39193

PIPE-OIL

39193-0027

1

$13.74

In stock

49002

GUIDE-VALVE

49002-0007

—

$33.08

In stock

92004

STUD,8X22

92004-1249

1
Out of stock

92005

FITTING

92005-0018

1
Out of stock

92022

WASHER,25.3X30X1

92022-161

1

$8.44

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92049

SEAL-OIL

92049-1196

1
Out of stock

92055

RING-O,23.5X2.0

92055-0046

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-0002

1

$8.75

In stock

92066A

PLUG,4X18

92066-0024

1

$3.59

In stock

92066B

PLUG,6X6

92066-0068

1

$4.32

In stock

92145

SPRING

92145-0048

1

$3.25

In stock

92150

BOLT,L=140

92150-1935

1

$13.20

In stock

92153

BOLT,6X38

92153-0338

1
Out of stock

92153A

BOLT,6X45

92153-0339

1
Out of stock

92153B

BOLT,6X16

92153-0695

1
Out of stock

92153C

BOLT,6X35

92153-0810

1
Out of stock

92153D

BOLT,FLANGED-SMALL,10X127

92153-1001

1
Out of stock

92170

CLAMP

92170-1448

1

$6.44

In stock

92200

WASHER,10.5X19X2.3

92200-0114

1
Out of stock

99999

KIT.,MANUAL DECOMP

99999-0023

1

$45.25

In stock
