2006 Kawasaki KX450F Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

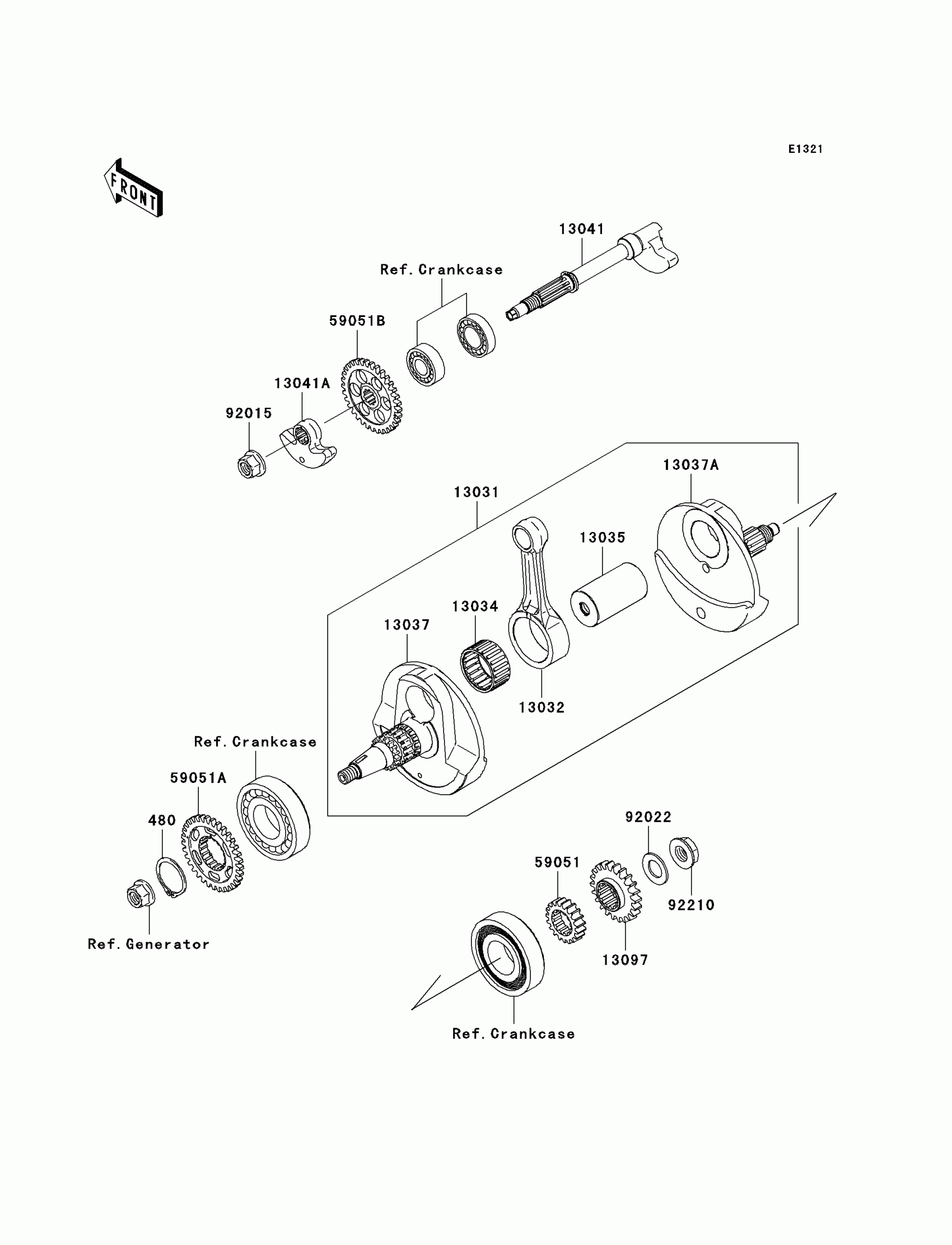

2006 Kawasaki KX450F Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

1

$1.49

In stock

13031

CRANKSHAFT-COMP

13031-0069

1

$619.01

In stock

13032

ROD-CONNECTING,RED

13032-0045

1

$119.99

In stock

13034

BEARING-BIG END,B4

13034-0006

1

$74.89

In stock

13035

PIN-CRANK,GREEN/YELLOW

13035-0011

1
Out of stock

13037

CRANKSHAFT,LH

13037-0085

1

$250.66

In stock

13037A

CRANKSHAFT,RH

13037-0086

1

$250.66

In stock

13041

BALANCER,SHAFT

13041-0014

1

$257.59

In stock

13041A

BALANCER,WEIGHT

13041-0015

1
Out of stock

13097

1

$67.96

In stock

59051

1

$33.67

In stock

59051A

1

$70.07

In stock

59051B

1

$70.07

In stock

92015

NUT,FLANGED,12MM

92015-1156

1
Out of stock

92022

WASHER,16.3X29X1.75

92022-1356

1

$5.84

In stock

92210

NUT,16MM

92210-0069

1
Out of stock
