2006 Kawasaki KX450F Engine Shrouds Diagram

← All diagrams

Find the part on the Engine Shrouds diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

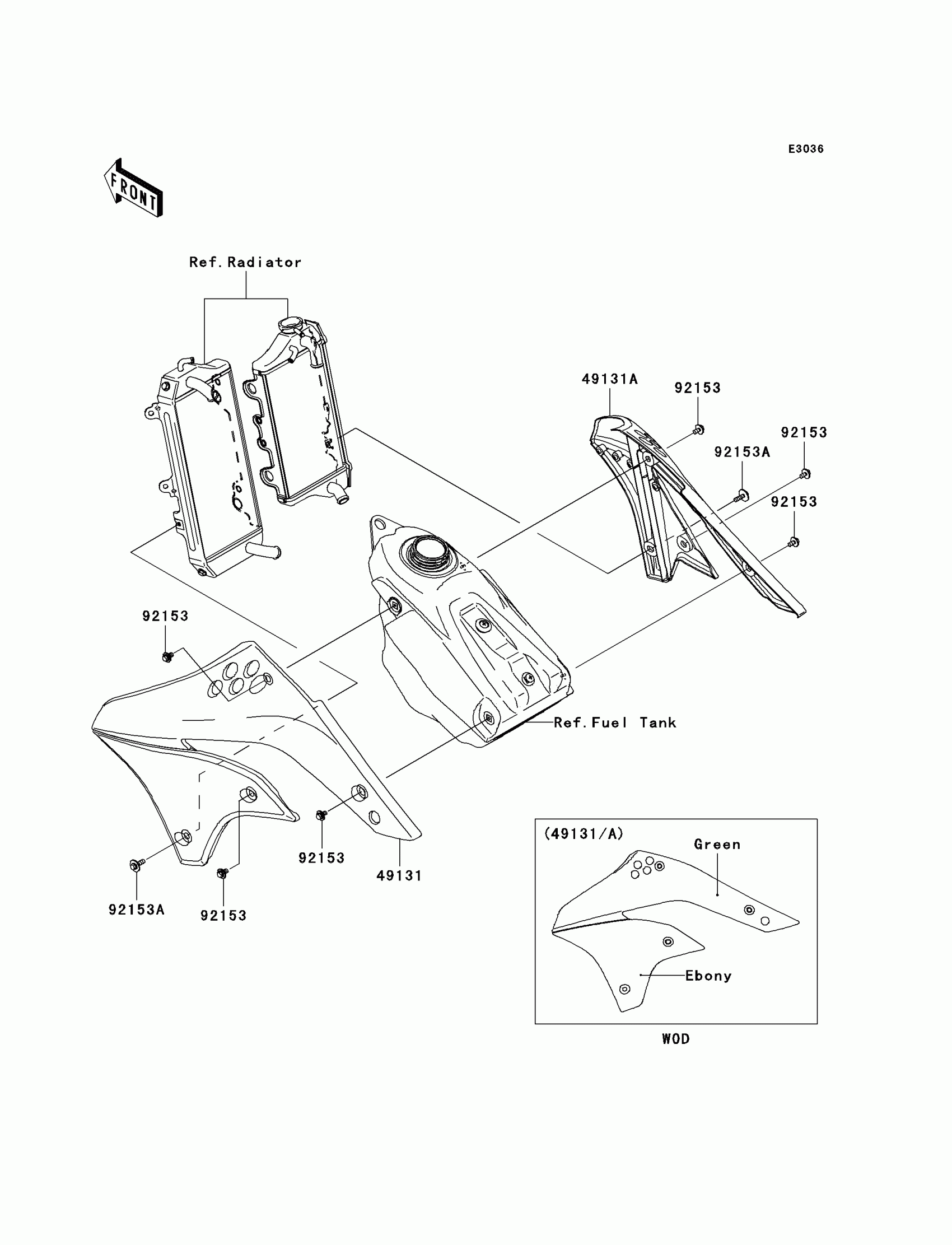

2006 Kawasaki KX450F Engine Shrouds Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49131

SHROUD-ENGINE,LH

49131-5065

1

$93.74

In stock

49131A

SHROUD-ENGINE,RH

49131-5066

1

$93.74

In stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92153A

BOLT,6X20

92153-0864

1
Out of stock
