2006 Kawasaki KX450F Crankcase Diagram

← All diagrams

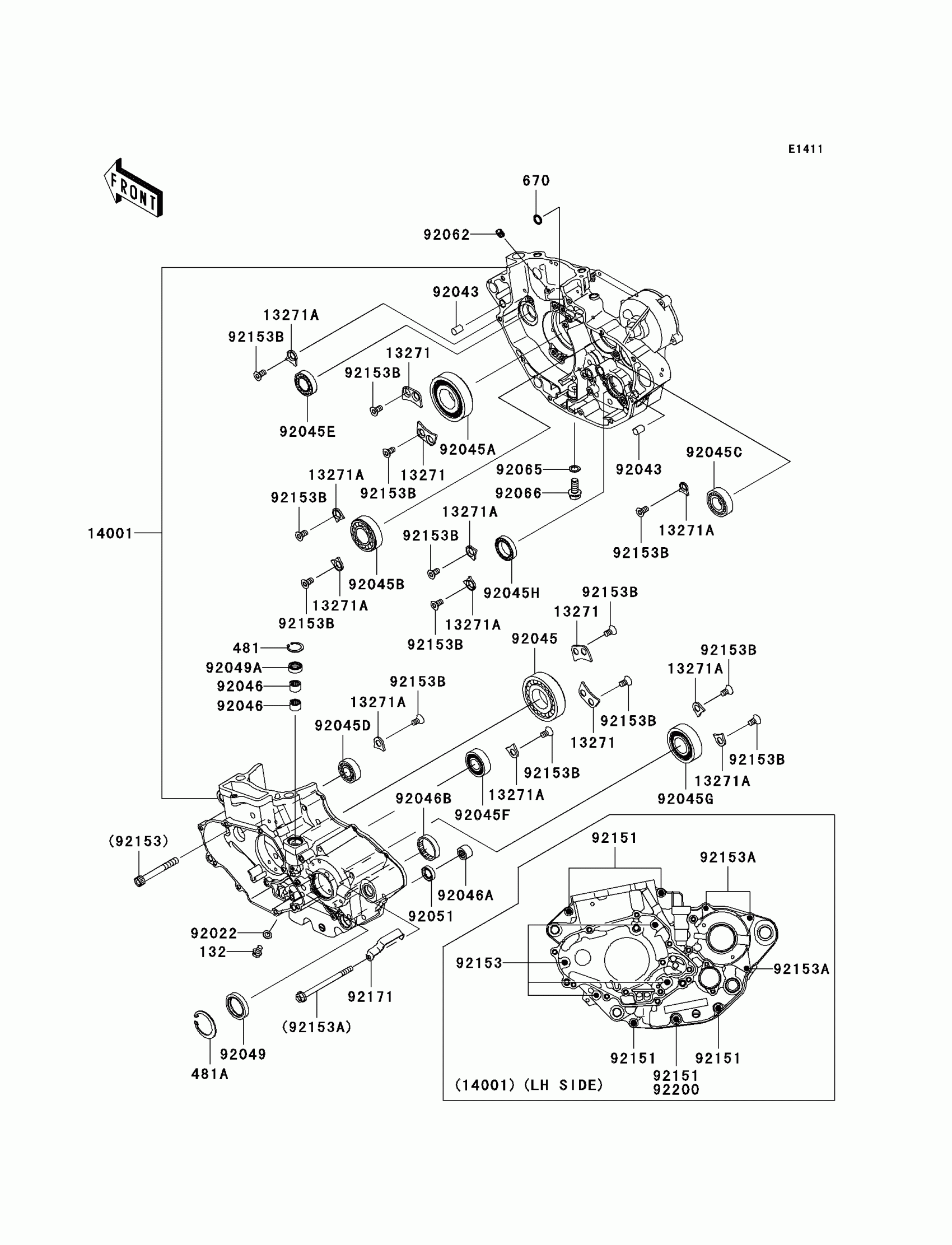

Find the part on the Crankcase diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Kawasaki KX450F Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X8

132L0608

1
Out of stock

481

CIRCLIP

481J2100

1

$1.20

In stock

481A

CIRCLIP-TYPE-C,40MM

481J4000

1
Out of stock

670

O RING,7MM

670D1507

1

$1.44

In stock

13271

PLATE

13271-0334

1
Out of stock

13271A

PLATE

13271-0345

1
Out of stock

14001

SET-CRANKCASE

14001-0056

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92043

PIN,10X14

92043-1506

1

$2.66

In stock

92045

1

$42.90

In stock

92045A

1

$42.87

In stock

92045B

1

$56.98

In stock

92045C

1

$21.68

In stock

92045D

1

$29.44

In stock

92045E

1

$19.76

In stock

92045F

1

$11.09

In stock

92045G

1

$22.17

In stock

92045H

1

$29.77

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92046A

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92046B

BEARING-NEEDLE,7E-HKS33X38X8

92046-1221

1
Out of stock

92049

SEAL-OIL,TC 30 40 7

92049-0030

1
Out of stock

92049A

SEAL-OIL,CLUTCH RELEASE

92049-1475

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92062

NOZZLE,6X8,GREEN

92062-1078

1

$4.17

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92066

PLUG,DRAIN,10X22

92066-0038

1

$5.82

In stock

92151

BOLT,6X50

92151-1545

1

$2.25

In stock

92153

BOLT,7X60

92153-0846

1
Out of stock

92153A

BOLT,6X11.7

92153-0848

1
Out of stock

92153B

BOLT,FLANGED,6X85

92153-0934

1
Out of stock

92171

CLAMP

92171-0579

1

$6.11

In stock

92200

WASHER,6.3X13.5X1.0

92200-0171

1
Out of stock
