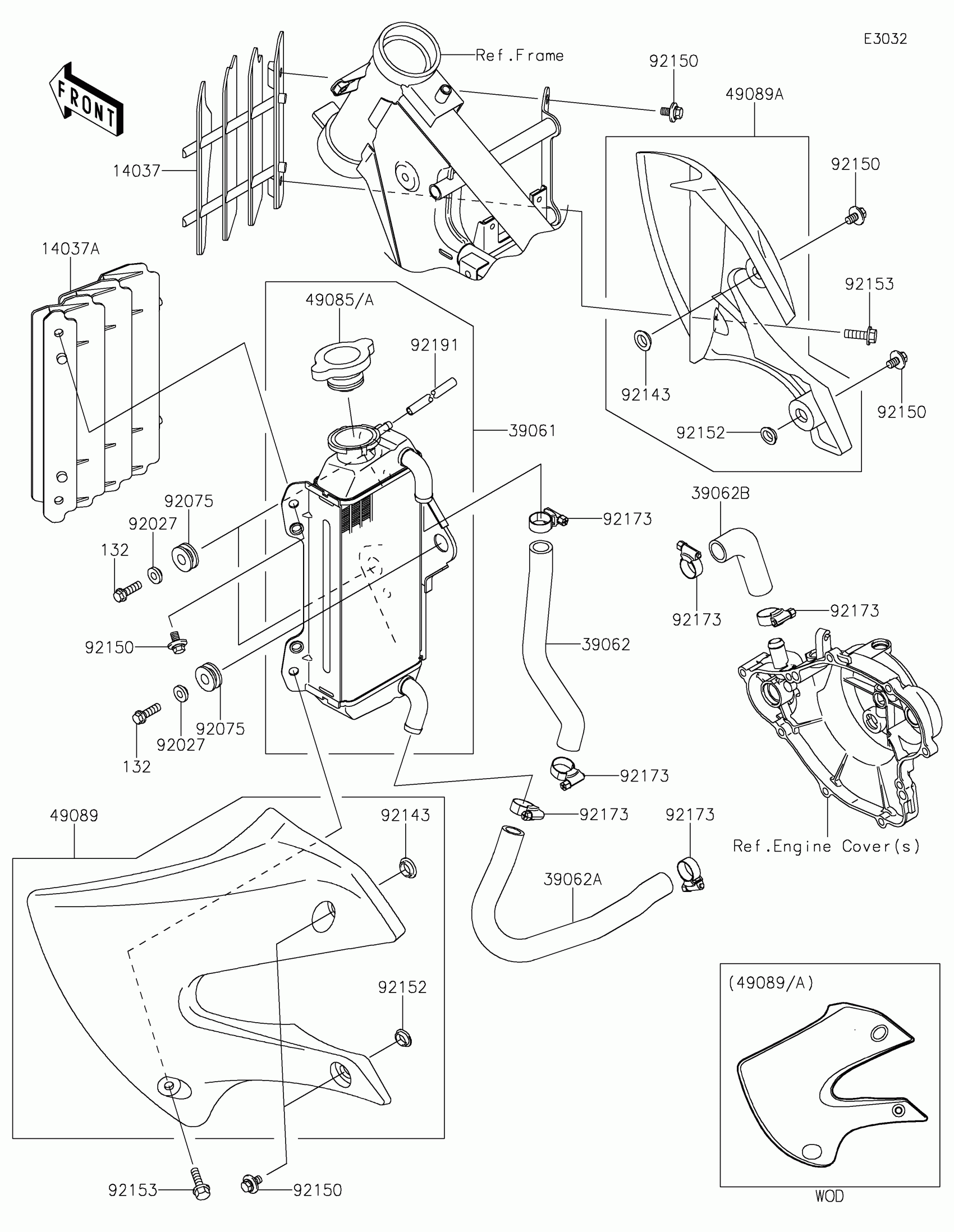

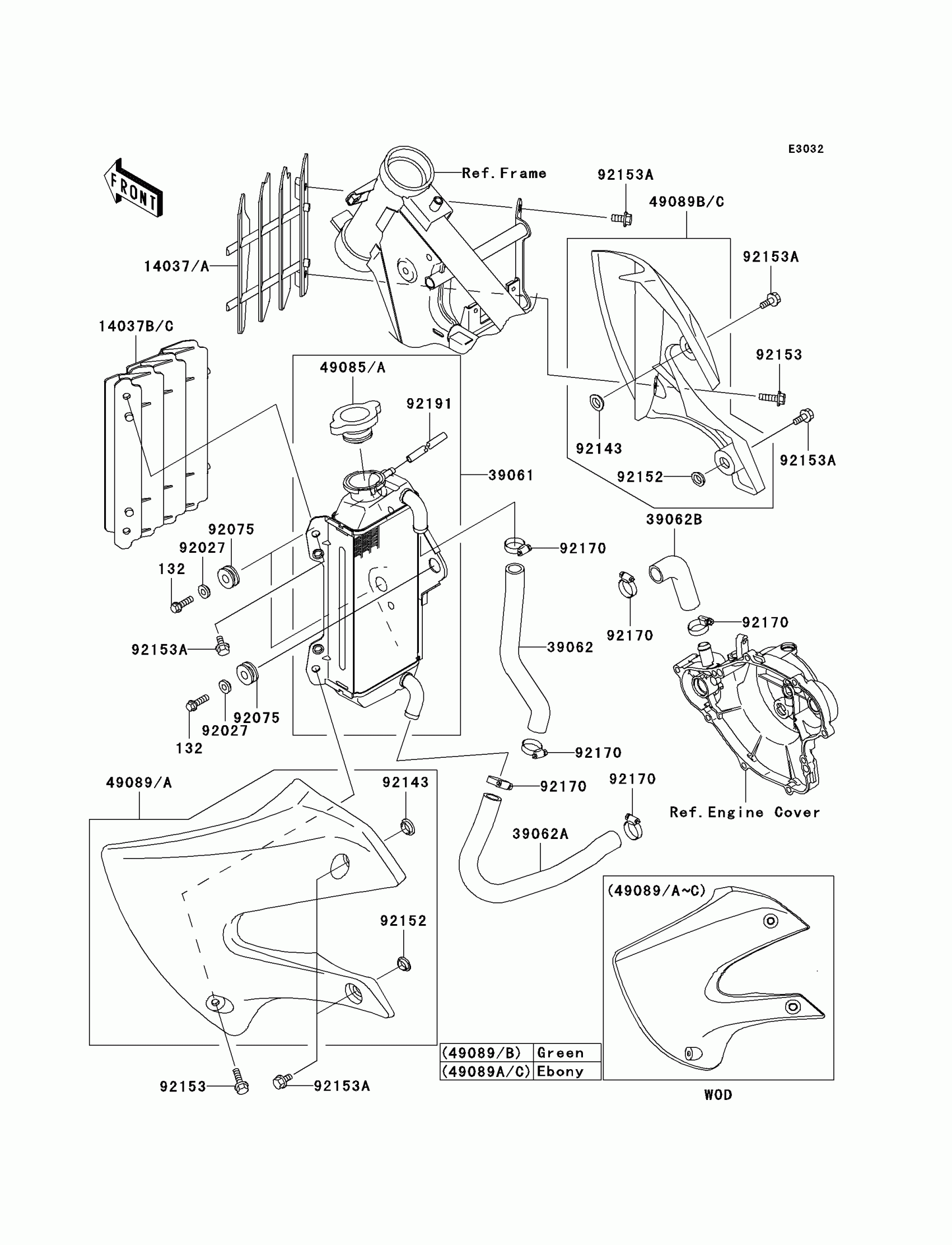

Find the part on the Radiator diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™65 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$0.94

In stock

14037A

SCREEN,RH,EBONY

14037-0047-6C

1

$23.36

In stock

14037C

SCREEN,LH,EBONY

14037-1266-6C

1

$23.63

In stock

39061

RADIATOR-ASSY

39061-1277

1

$514.08

In stock

39062

1

$14.31

In stock

39062A

1

$20.24

In stock

39062B

1

$8.24

In stock

49085

1

$51.63

In stock

49085A

1

$51.63

In stock

49089A

SHROUD-ENGINE,LH,EBONY

49089-1144-6C

1

$48.95

In stock

49089C

SHROUD-ENGINE,RH,EBONY

49089-1145-6C

1

$48.63

In stock

92027

COLLAR

92027-194

1

$4.37

In stock

92075

1

$3.72

In stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92152

COLLAR

92152-1235

1

$3.29

In stock

92153

BOLT,6X20

92153-0502

1
Out of stock

92153A

BOLT,6X12

92153-0503

1
Out of stock

92170

CLAMP

92170-1283

1

$10.76

In stock

92191

TUBE

92191-1434

1

$11.05

In stock
