2009 Kawasaki KX™65 Crankcase Diagram

← All diagrams

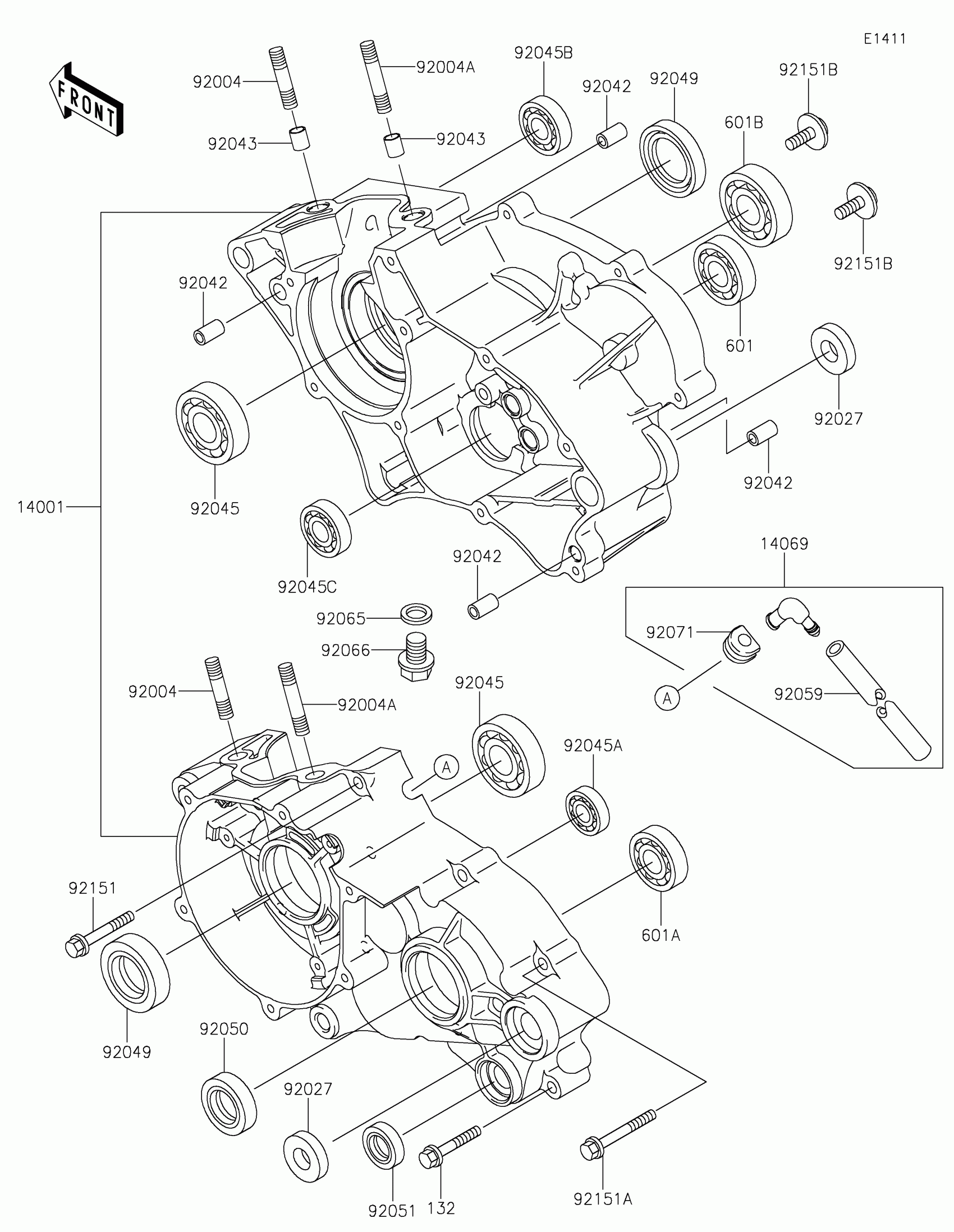

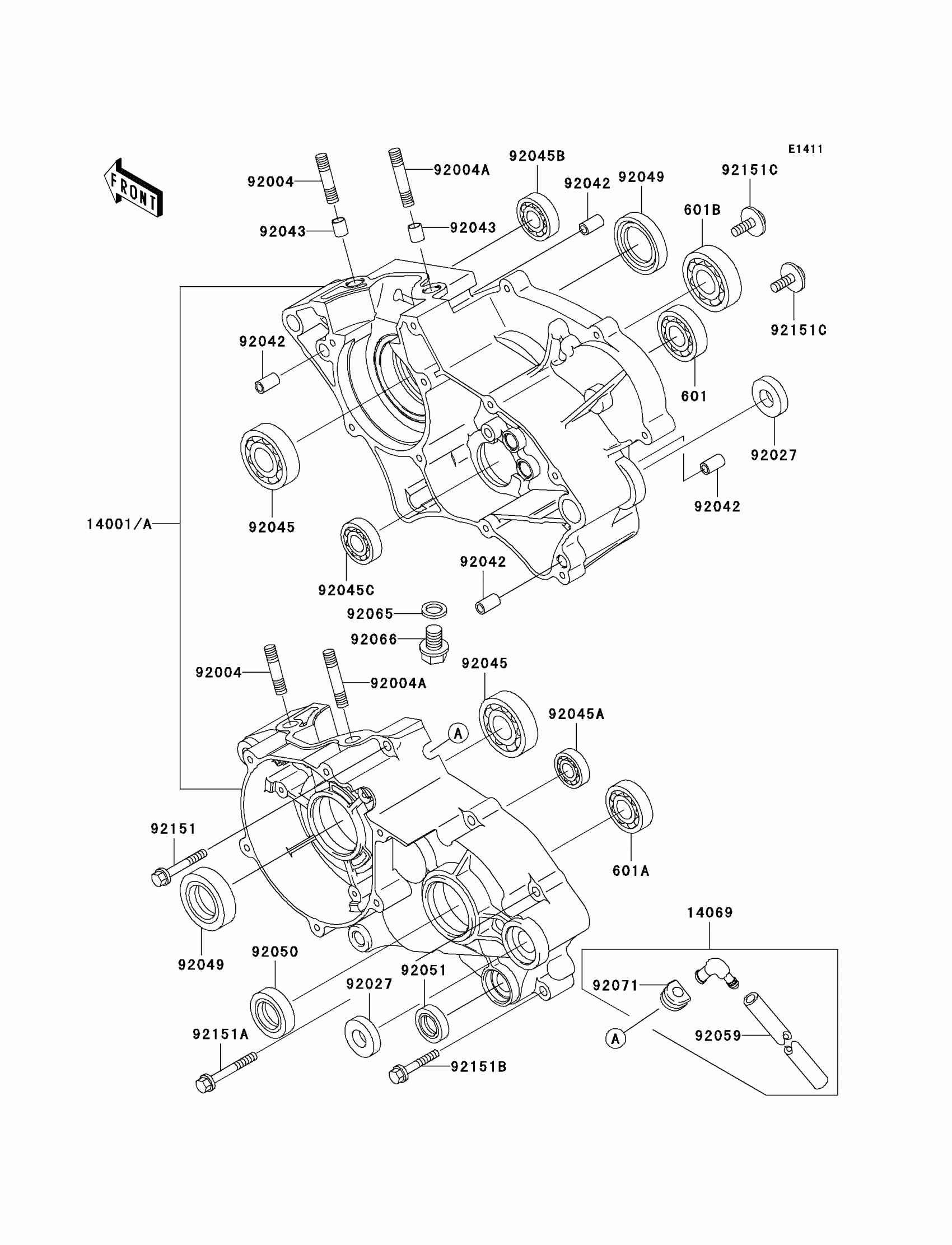

Find the part on the Crankcase diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™65 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

1

$9.21

In stock

601A

1

$9.42

In stock

601B

1

$11.12

In stock

14001A

SET-CRANKCASE

14001-0119

1
Out of stock

14069

BREATHER

14069-1003

1

$22.77

In stock

92004

STUD,8X30

92004-0019

1
Out of stock

92004A

STUD,8X38

92004-0020

1
Out of stock

92027

COLLAR,12.1X26X6

92027-1744

1

$10.93

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92045

1

$27.96

In stock

92045A

1

$12.85

In stock

92045B

BEARING-BALL,626MC3

92045-1304

1

$9.41

In stock

92045C

1

$29.77

In stock

92049

SEAL-OIL,SD20407GS

92049-1188

1
Out of stock

92050

SEAL-OIL,SC25376

92050-013

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92059

TUBE,6X9X280

92059-1074

1

$14.65

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92066

PLUG,DRAIN

92066-1437

1

$5.15

In stock

92071

GROMMET,BREATHER

92071-042

1

$3.39

In stock

92151

BOLT,6X40

92151-1131

1

$3.87

In stock

92151A

BOLT,6X55

92151-1132

1

$4.32

In stock

92151B

BOLT,6X35

92151-1135

1

$3.33

In stock

92151C

BOLT,6X16

92151-1762

1

$1.56

In stock
