2009 Kawasaki KX™65 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

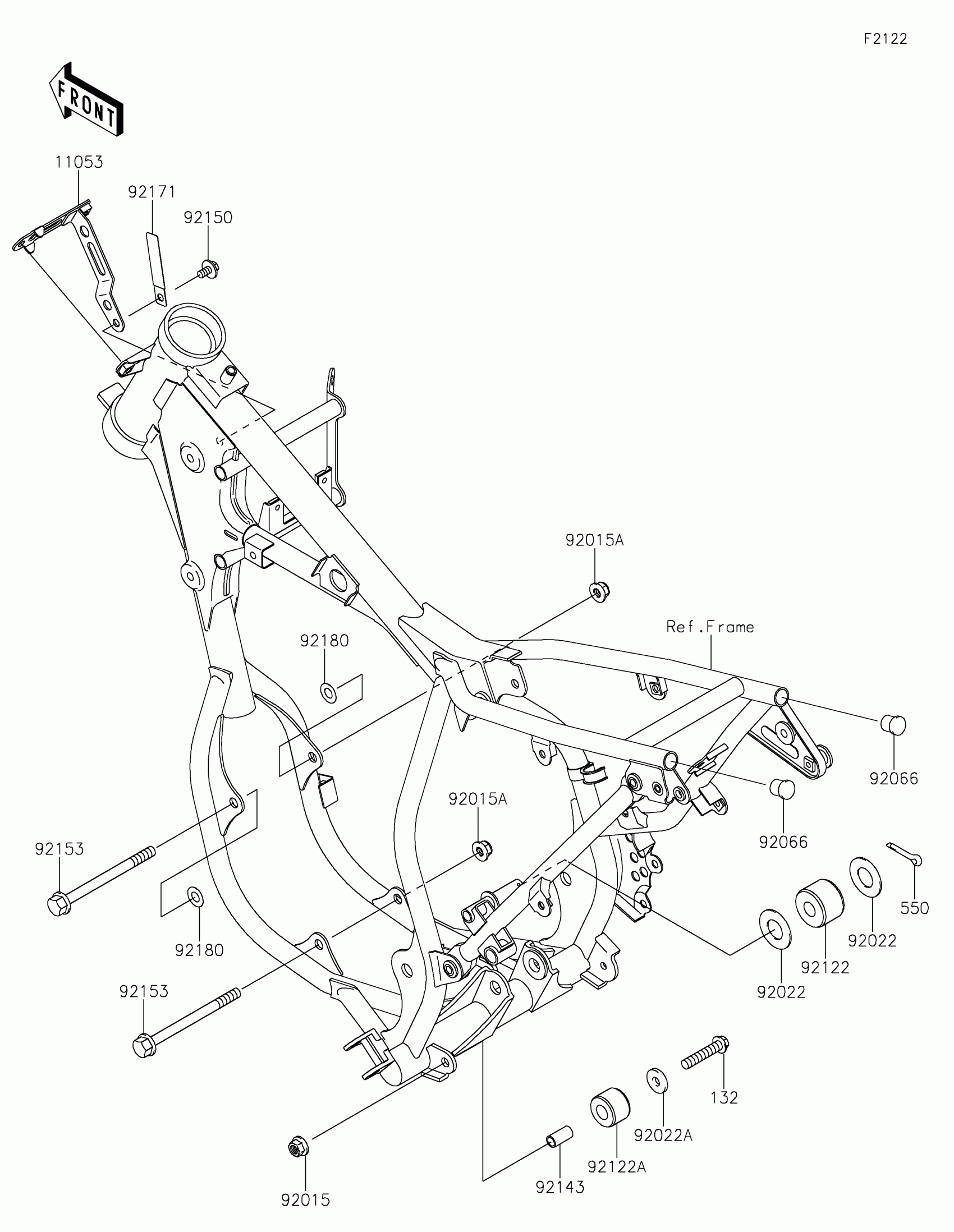

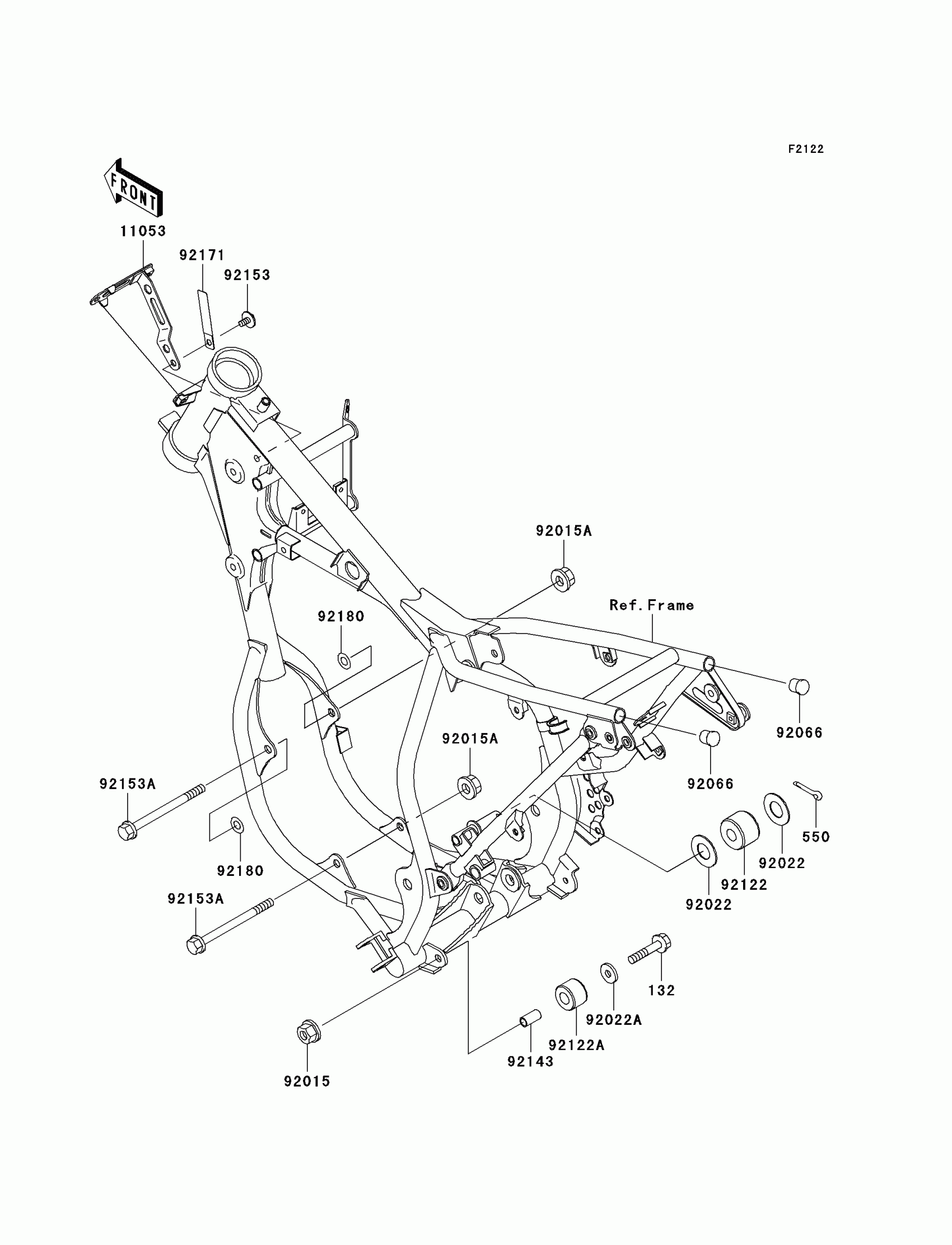

2009 Kawasaki KX™65 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$4.01

In stock

550

PIN-COTTER,2.5X18

550AA2518

1

$0.61

In stock

11053

BRACKET,IGNITER

11053-1682

1

$13.17

In stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,8MM

92015-1432

1

$5.21

In stock

92022

WASHER

92022-107

1

$2.20

In stock

92022A

WASHER,8.5X20X1.6

92022-1561

1

$3.43

In stock

92066

PLUG

92066-1081

1

$6.83

In stock

92122

ROLLER,CHAIN GUIDE

92122-1179

1

$18.02

In stock

92122A

ROLLER,CHAIN GUIDE

92122-1213

1

$11.98

In stock

92143

COLLAR,9.5X12.7X25

92143-1432

1

$5.84

In stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92153A

BOLT,FLANGED,8X110

92153-1095

1
Out of stock

92171

CLAMP,L=60

92171-0652

1

$2.15

In stock

92180

SHIM,9X18X0.3

92180-1354

—

$1.59

In stock
