2009 Kawasaki KX™65 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

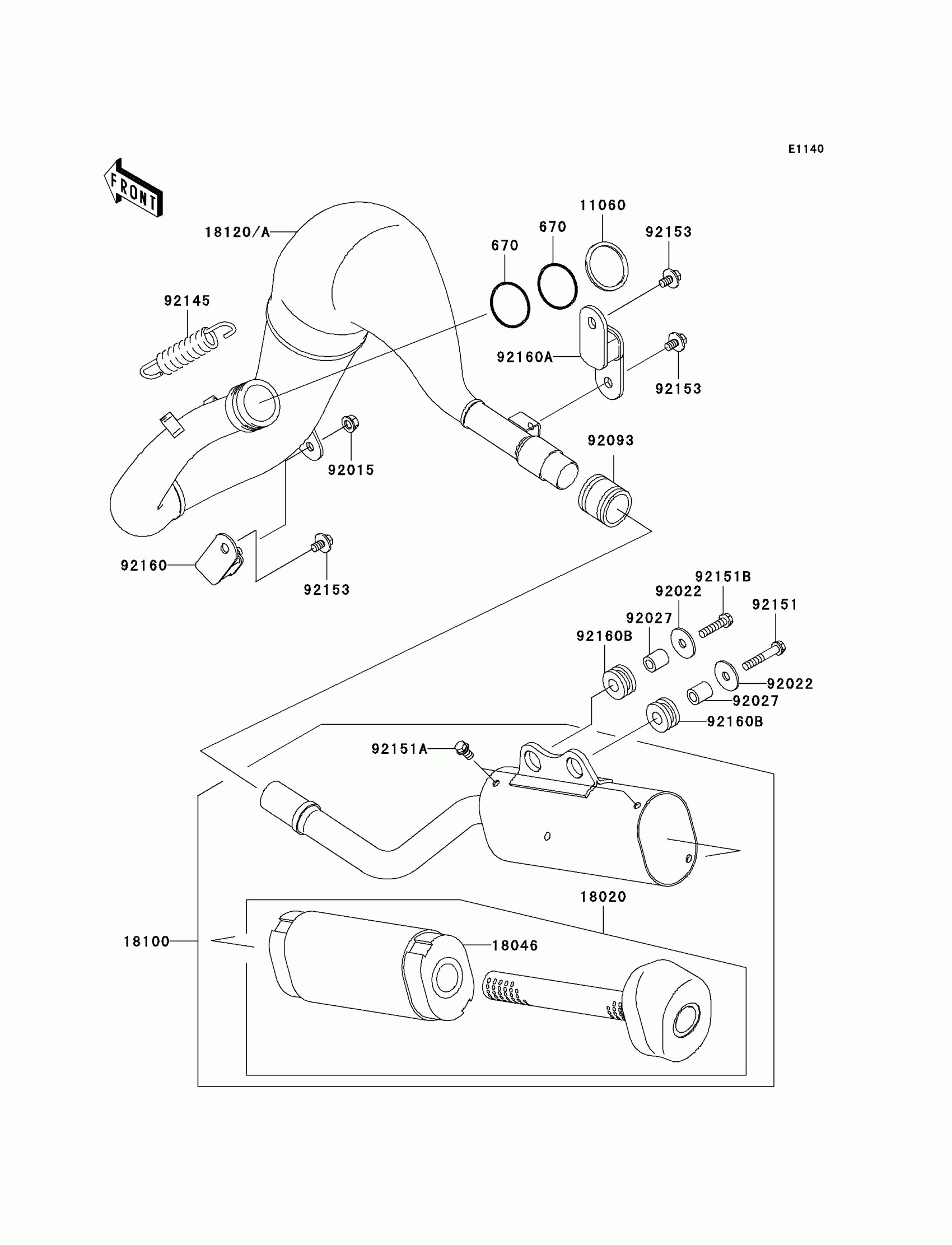

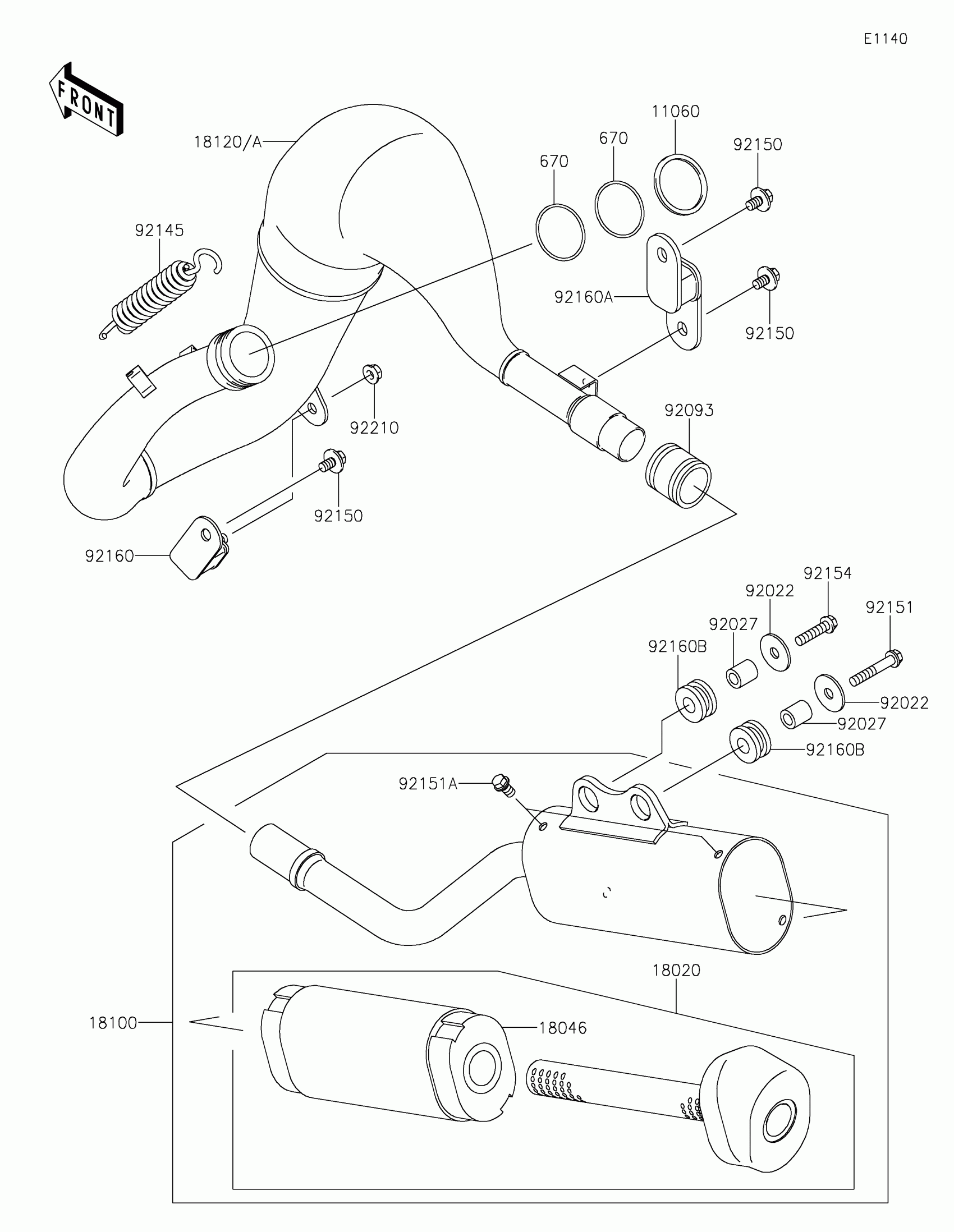

2009 Kawasaki KX™65 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING,32MM

670E3032

1

$10.37

In stock

11060

GASKET,EXHAUST

11060-1922

1

$8.58

In stock

18020

BAFFLE

18020-1284

1

$143.28

In stock

18046

WOOL,BAFFLE

18046-1587

1

$85.05

In stock

18100

BODY-ASSY-MUFFLER

18100-1092

1

$196.37

In stock

18120

CHAMBER-EXHAUST

18120-1116

1

$314.01

In stock

18120A

CHAMBER-EXHAUST

18120-1119

1

$314.01

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92027

COLLAR,6.8X10X11.5

92027-1210

1

$8.16

In stock

92093

SEAL

92093-1511

1

$13.83

In stock

92145

1

$10.62

In stock

92151

BOLT,6X35

92151-1135

1

$3.33

In stock

92151A

BOLT,FLANGED,6X10

92151-1822

1

$1.51

In stock

92151B

1

$2.06

In stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92160

DAMPER,MUFFLER,FR

92160-1176

1

$26.14

In stock

92160A

DAMPER,MUFFLER,RR

92160-1201

1

$26.14

In stock

92160B

DAMPER

92160-1913

1

$2.19

In stock
