2009 Kawasaki KX™65 Crankshaft/piston Diagram

← All diagrams

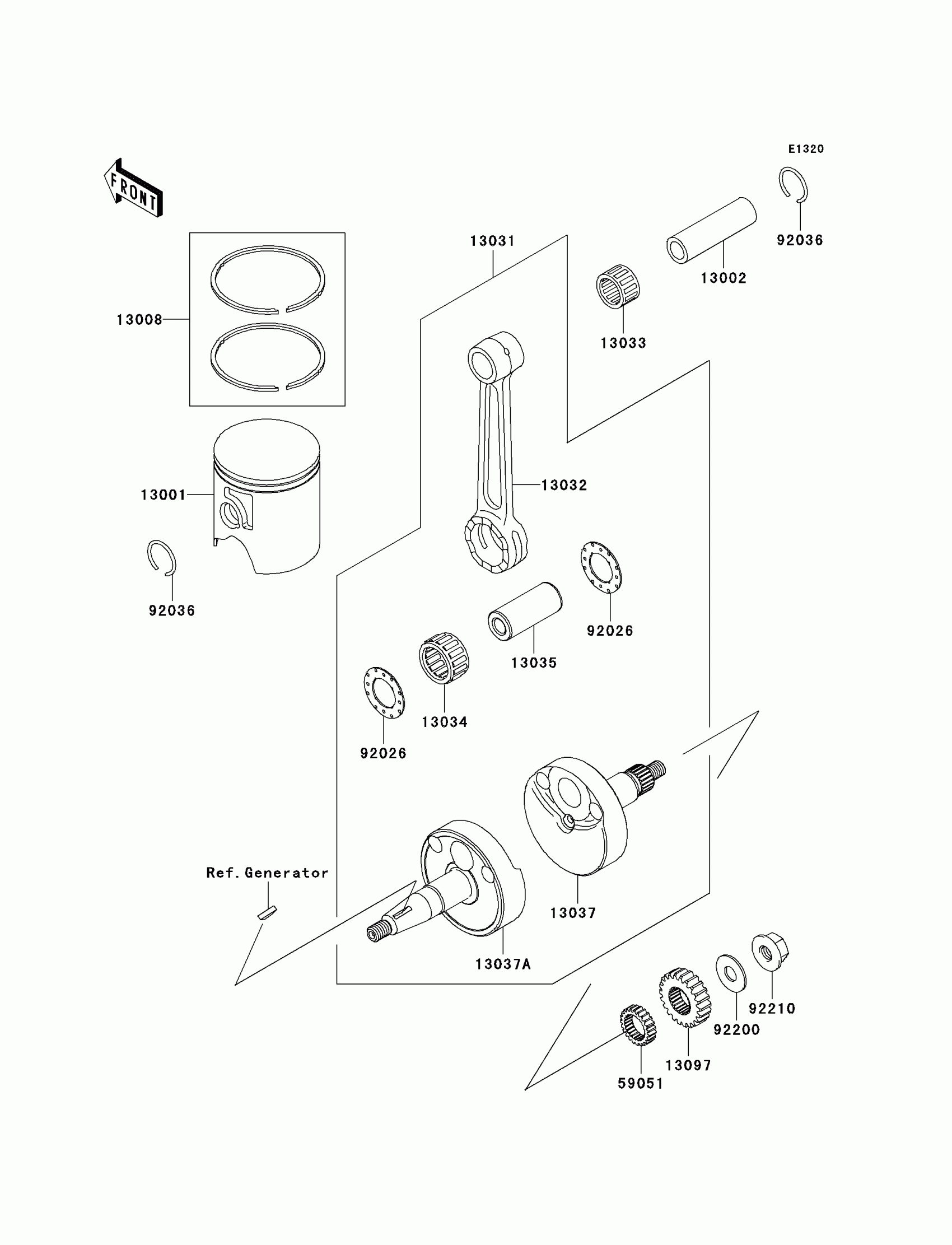

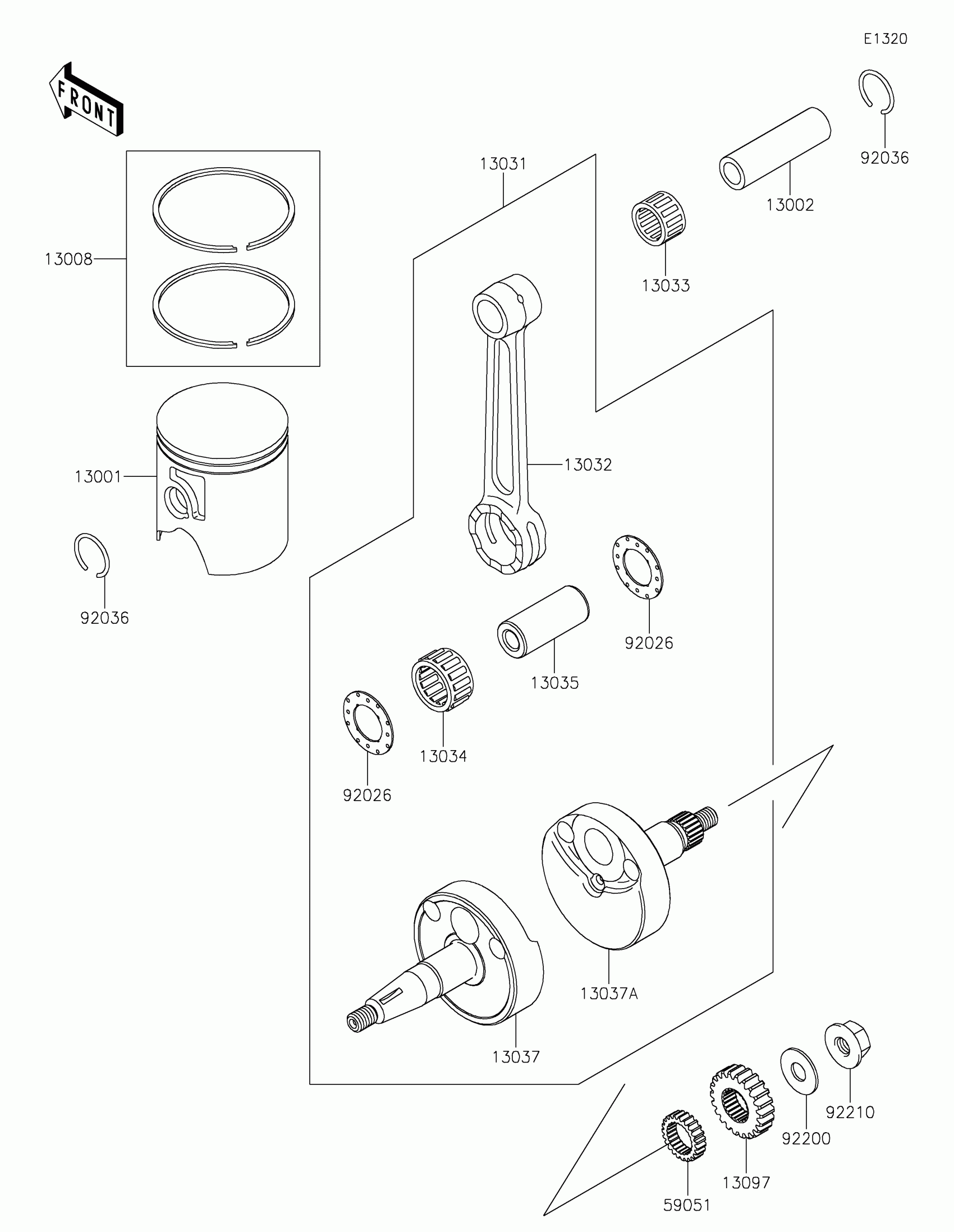

Find the part on the Crankshaft/piston diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™65 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE,B

13001-0040

1
Out of stock

13002

PIN-PISTON

13002-1119

1
Out of stock

13008

RING-SET-PISTON

13008-1199

1
Out of stock

13031

CRANKSHAFT-COMP

13031-0039

1
Out of stock

13032

ROD-CONNECTING

13032-1246

1
Out of stock

13033

BEARING-SMALL END

13033-0002

1
Out of stock

13034

BEARING-BIG END,SKTZ 202714EGS

13034-0012

1
Out of stock

13035

PIN-CRANK

13035-1002

1
Out of stock

13037

CRANKSHAFT,RH

13037-0049

1
Out of stock

13037A

CRANKSHAFT,LH

13037-1615

1
Out of stock

13097

GEAR-PRIMARY SPUR,22T

13097-0055

1
Out of stock

59051

GEAR-SPUR,PUMP,23T

59051-1146

1
Out of stock

92026

SPACER

92026-1522

1
Out of stock

92036

RING-SNAP,PISTON PIN

92036-007

1
Out of stock

92200

WASHER,10.2X25X1.5

92200-0213

1
Out of stock

92210

NUT,FLANGED,M10XL1.25

92210-0215

1
Out of stock
