2009 Kawasaki KX™65 Engine Cover Diagram

← All diagrams

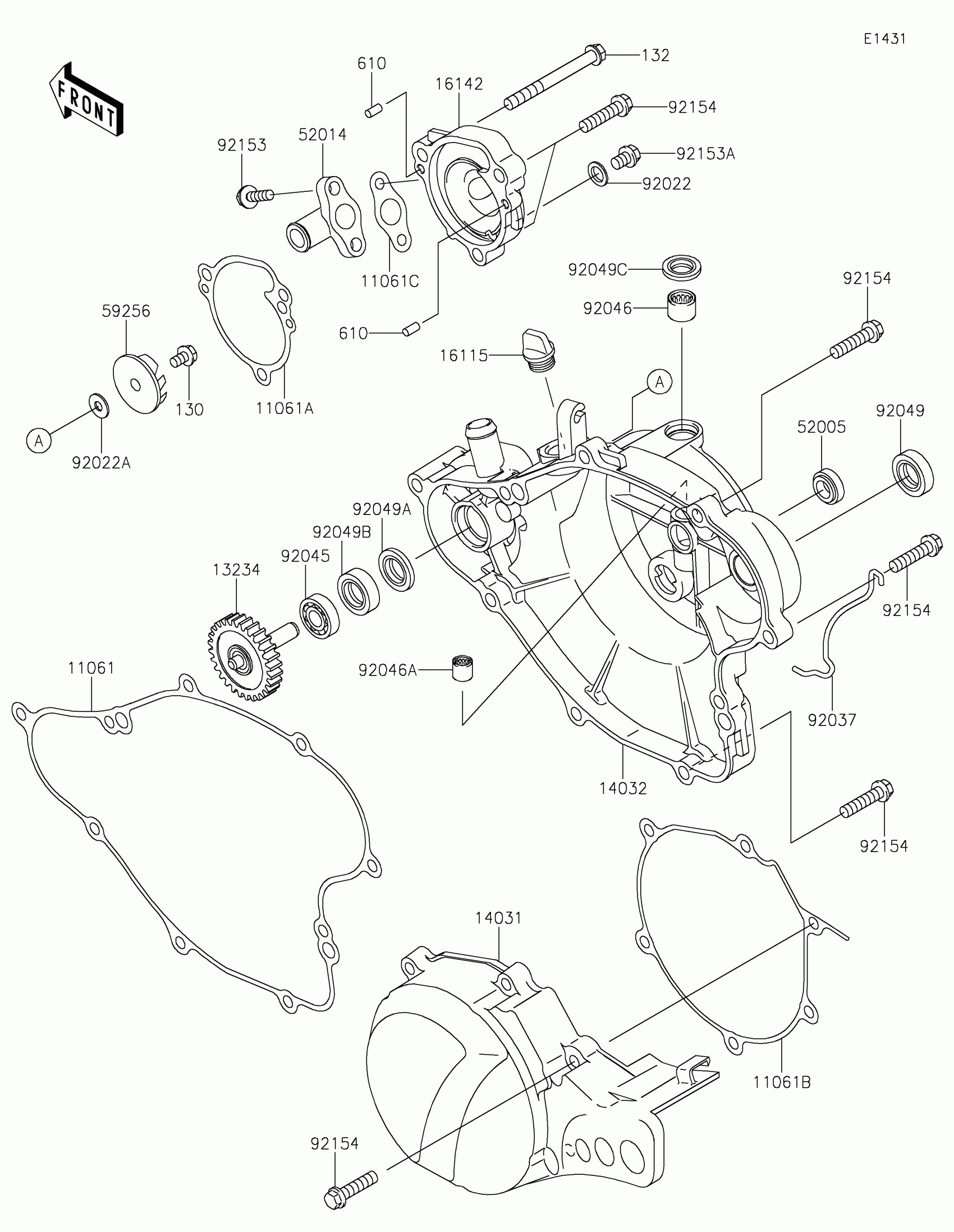

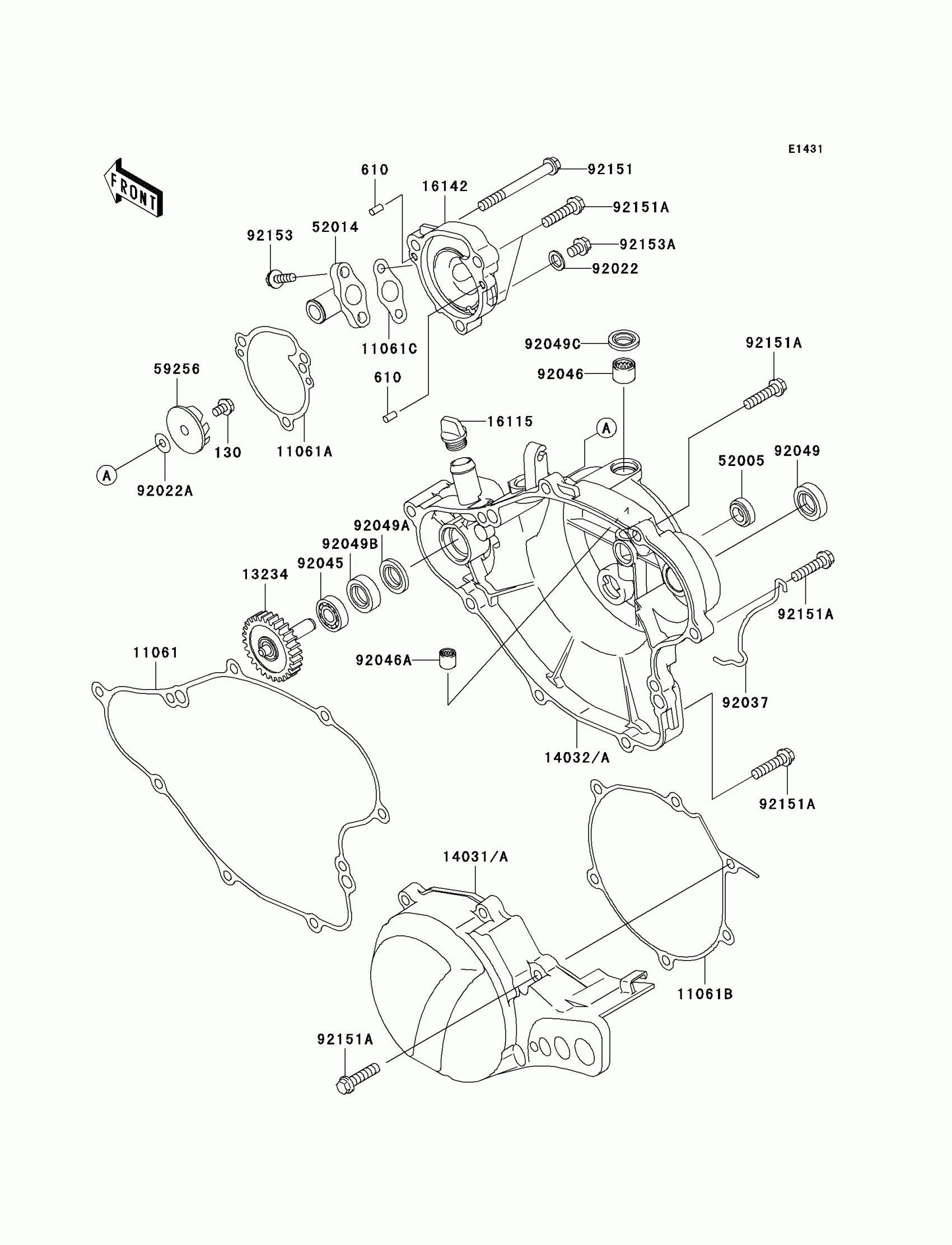

Find the part on the Engine Cover diagram for your 2009 Kawasaki KX™65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™65 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X10

130CA0510

1

$1.61

In stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock

11061

GASKET,CLUTCH COVER

11061-0121

1

$13.21

In stock

11061A

1

$7.56

In stock

11061B

1

$17.81

In stock

11061C

GASKET,ELBOW

11061-0202

1

$3.49

In stock

13234

SHAFT-COMP,PUMP

13234-1110

1

$63.00

In stock

14031A

COVER-GENERATOR

14031-0107

1

$53.37

In stock

14032A

COVER-CLUTCH

14032-0133

1

$245.41

In stock

16115

CAP-OIL FILLER

16115-018

1

$8.38

In stock

16142

COVER-PUMP

16142-0023

1

$81.92

In stock

52005

GAUGE,OIL LEVEL

52005-0019

1

$11.67

In stock

52014

ELBOW

52014-1094

1

$16.64

In stock

59256

IMPELLER

59256-1064

1

$33.05

In stock

92022

1

$3.13

In stock

92022A

WASHER,5.2X13X1

92022-1380

1

$3.43

In stock

92037

CLAMP,TUBE

92037-1236

1

$10.25

In stock

92045

BEARING-BALL,608MC3

92045-1305

1

$9.80

In stock

92046

BEARING-NEEDLE,HK1010FM

92046-1160

1
Out of stock

92046A

BEARING-NEEDLE,6BTM109

92046-1217

1
Out of stock

92049

SEAL-OIL,SB16244

92049-002

1
Out of stock

92049A

SEAL-OIL,MH8X18X3.5-A

92049-1359

1
Out of stock

92049B

SEAL-OIL,MHSD8X18X10J-1

92049-1366

1
Out of stock

92049C

SEAL-OIL,BG1408F0

92049-1414

1
Out of stock

92151

BOLT,6X60

92151-1235

1
Out of stock

92151A

1

$2.06

In stock

92153

BOLT,5X16

92153-0859

1
Out of stock

92153A

BOLT,6X8

92153-0860

1
Out of stock
