Partiron

1988 Kawasaki KX™250 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

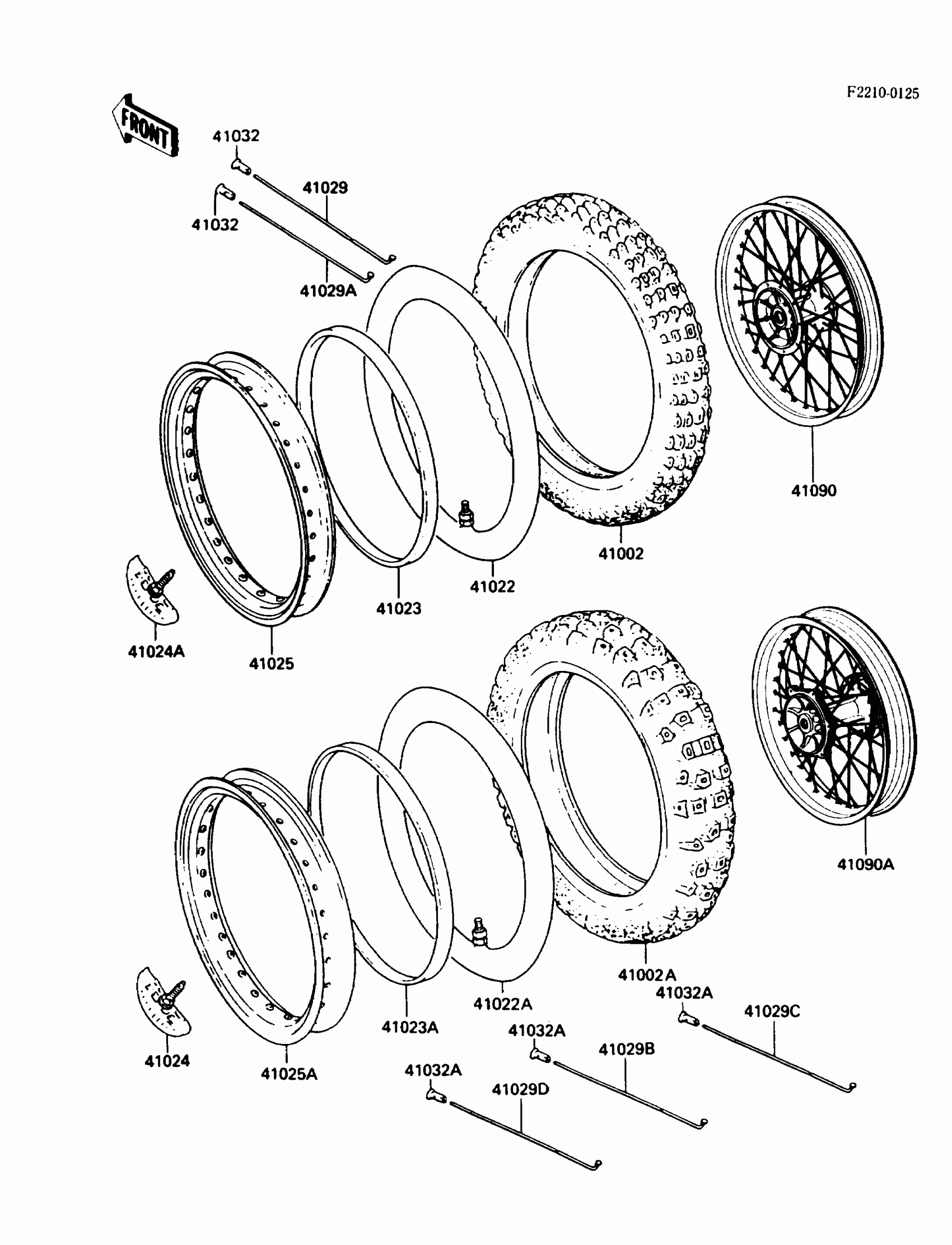

1988 Kawasaki KX™250 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41002

1

$125.96

In stock

41002A

1

$202.10

In stock

41022

1

$51.02

In stock

41022A

1

$50.10

In stock

41023

BAND-RIM,80/100-21(D)

41023-1069

1
Out of stock

41023A

1

$10.98

In stock

41024

1

$60.31

In stock

41024A

1

$52.75

In stock

41025

RIM,FR,1.60X21

41025-1167

1

$423.54

In stock

41025A

RIM,RR,2.15X18

41025-1199

1

$279.09

In stock

41029

SPOKE-INNER,FR,RH

41029-1152

1
Out of stock

41029A

SPOKE-INNER,FR,LH

41029-1153

1
Out of stock

41029B

SPOKE-INNER,RR,192MMX166D

41029-1189

1
Out of stock

41029C

SPOKE-INNER,RR,188MMX166D

41029-1190

1
Out of stock

41029D

SPOKE-INNER,RR,196MMX166D

41029-1191

1
Out of stock

41032

NIPPLE-SPOKE

41032-1061

1

$3.62

In stock

41032A

NIPPLE-SPOKE

41032-1064

1

$3.78

In stock

41090

WHEEL-SUB ASSY,FR

41090-1062

1

$722.85

In stock

41090A

WHEEL-SUB ASSY,RR

41090-1064

1

$629.38

In stock
