1988 Kawasaki KX™250 Swingarm Diagram

← All diagrams

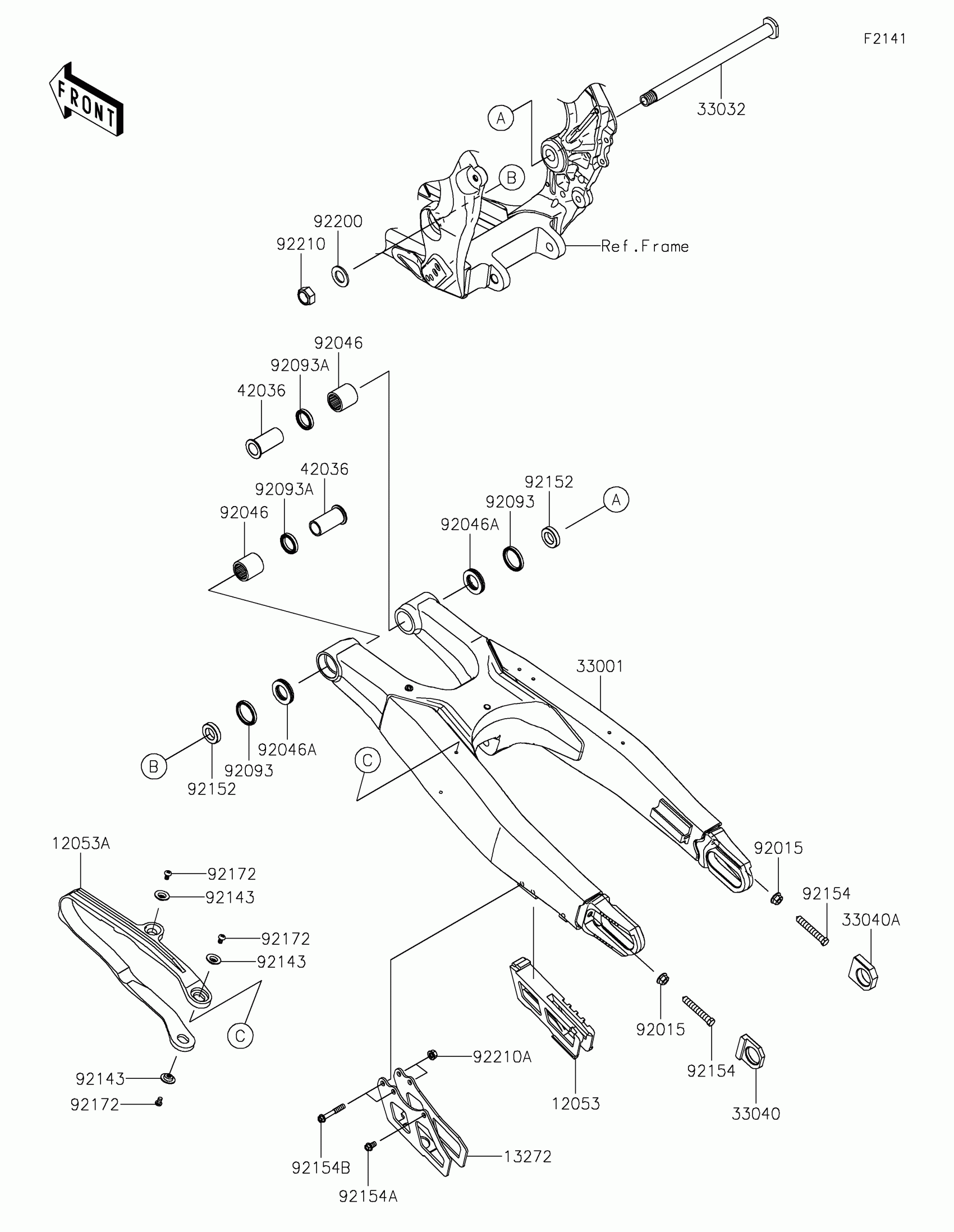

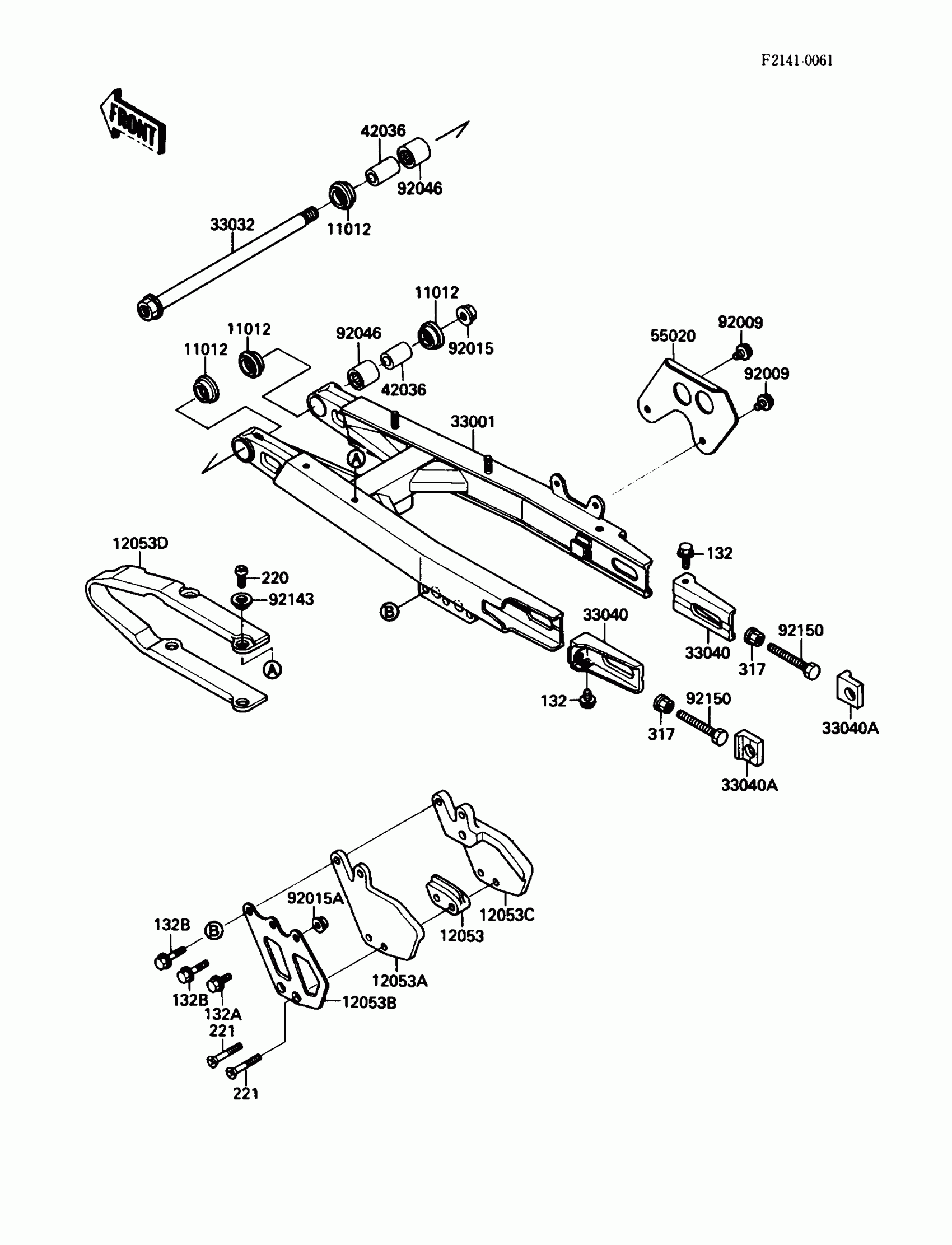

Find the part on the Swingarm diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX™250 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1259

1

$20.21

In stock

12053

GUIDE-CHAIN,RR,INSIDE

12053-1105

1
Out of stock

12053A

1

$30.26

In stock

12053B

1

$36.58

In stock

12053C

1

$38.35

In stock

12053D

GUIDE-CHAIN,FR

12053-1240

1

$64.64

In stock

33001

1

$519.87

In stock

33032

SHAFT-SWING ARM

33032-1137

1

$64.64

In stock

33040

ADJUSTER-CHAIN

33040-1084

1
Out of stock

33040A

ADJUSTER-CHAIN

33040-1085

1
Out of stock

42036

SLEEVE,SWING ARM

42036-1064

1

$19.97

In stock

55020

GUARD,CALIPER

55020-1247

1
Out of stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92015

NUT,14MM

92015-1032

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92046

BEARING-NEEDLE

92046-1128

1
Out of stock

92143

COLLAR

92143-1156

1

$4.93

In stock

92150

BOLT,8X55

92150-1068

1

$5.11

In stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X35

132G0635

1
Out of stock

220

1

$0.63

In stock

221

1

$3.28

In stock

317

NUT-HEX-SMALL,8MM

317G0800

1
Out of stock
