1988 Kawasaki KX™250 Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

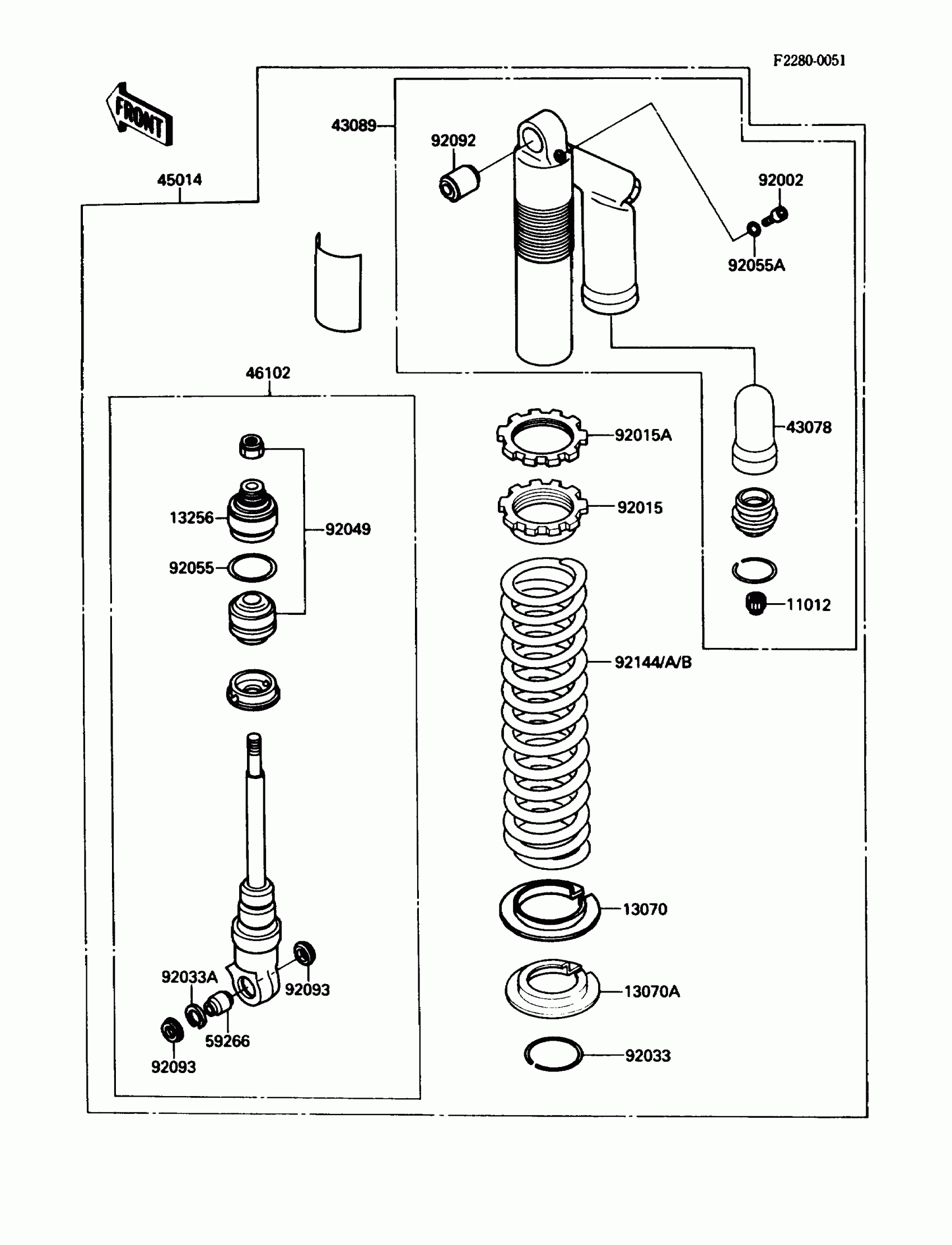

1988 Kawasaki KX™250 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1276

1

$4.85

In stock

13070

GUIDE,SPRING

13070-1161

1
Out of stock

13070A

GUIDE,SPRING

13070-1165

1

$36.09

In stock

13256

PISTON,SHOCKABSORBER

13256-1054

1
Out of stock

43078

1

$125.95

In stock

43089

1

$417.56

In stock

45014

SHOCKABSORBER

45014-1386

1

$949.27

In stock

46102

ROD,SHOCKABSORBER

46102-1235

1

$542.12

In stock

59266

JOINT-BALL

59266-1071

1

$142.60

In stock

92002

BOLT,DRAIN

92002-1955

1
Out of stock

92015

NUT,SPRING ADJUST

92015-1703

1

$41.28

In stock

92015A

1

$38.81

In stock

92033

1

$4.39

In stock

92033A

RING-SNAP

92033-1244

1
Out of stock

92049

SEAL-OIL

92049-1306

1
Out of stock

92055

RING-O,ROD

92055-1369

1

$8.04

In stock

92055A

RING-O

92055-1383

1

$3.27

In stock

92092

1

$29.37

In stock

92093

SEAL

92093-1253

1
Out of stock

92144

SPRING,SHOCKABSORBER,K=5.2

92144-1232

1
Out of stock

92144A

1

$282.23

In stock

92144B

1

$270.40

In stock
