1988 Kawasaki KX™250 Rear Suspension Diagram

← All diagrams

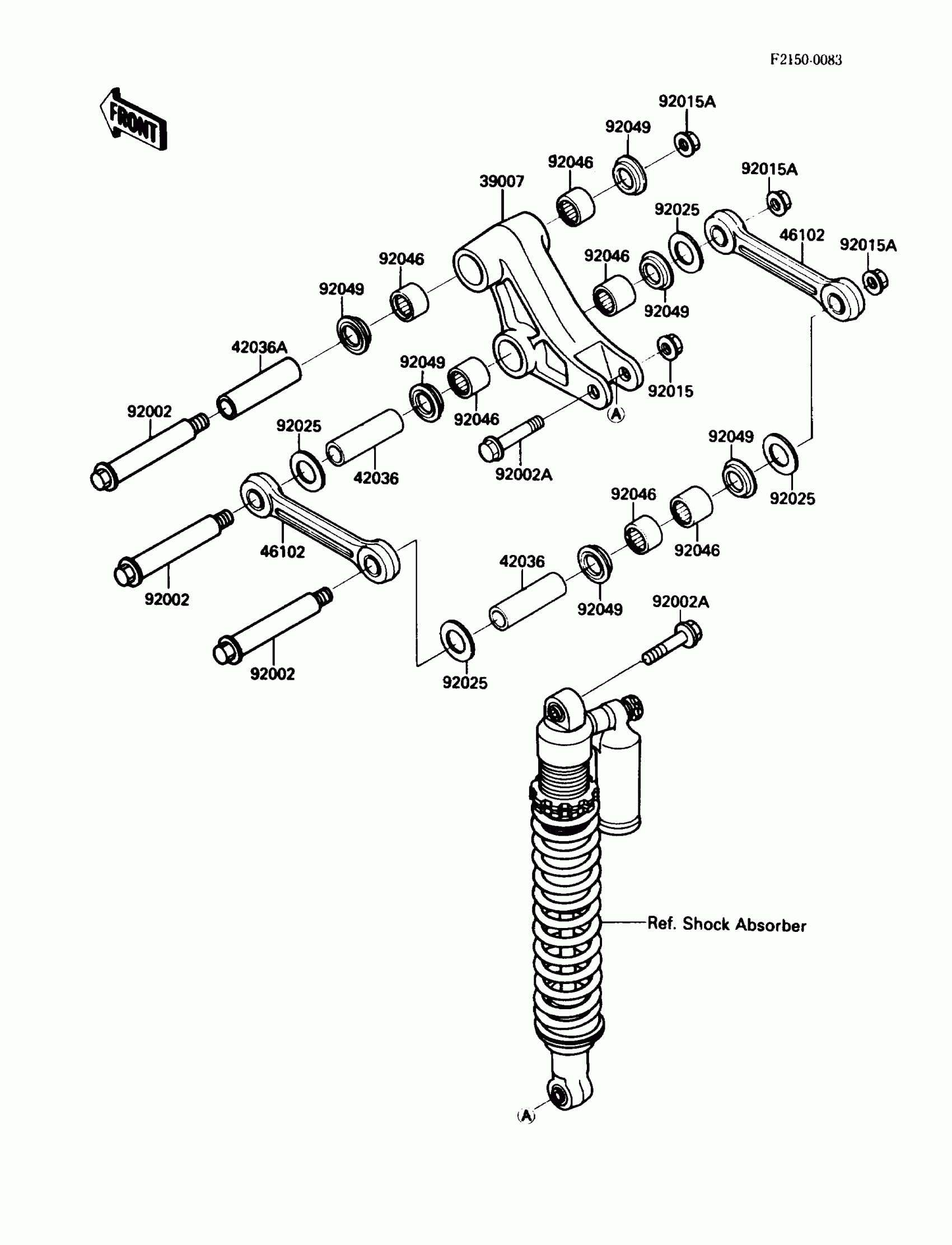

Find the part on the Rear Suspension diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX™250 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1145

1

$164.82

In stock

42036

SLEEVE,22X65

42036-1209

1
Out of stock

42036A

SLEEVE,22X72

42036-1210

1
Out of stock

46102

ROD,SUSPENSION

46102-1246

1

$100.28

In stock

92002

BOLT,ARM,12MM

92002-1890

1
Out of stock

92002A

BOLT,FLANGED,10X53

92002-1936

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92015A

1

$7.04

In stock

92025

SHIM,15.3X27.5X0.6

92025-1135

1
Out of stock

92046

BEARING-NEEDLE,F-2220

92046-1162

1
Out of stock

92049

SEAL-OIL,MHA22 28 5.7F

92049-1254

1
Out of stock
