1988 Kawasaki KX™250 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

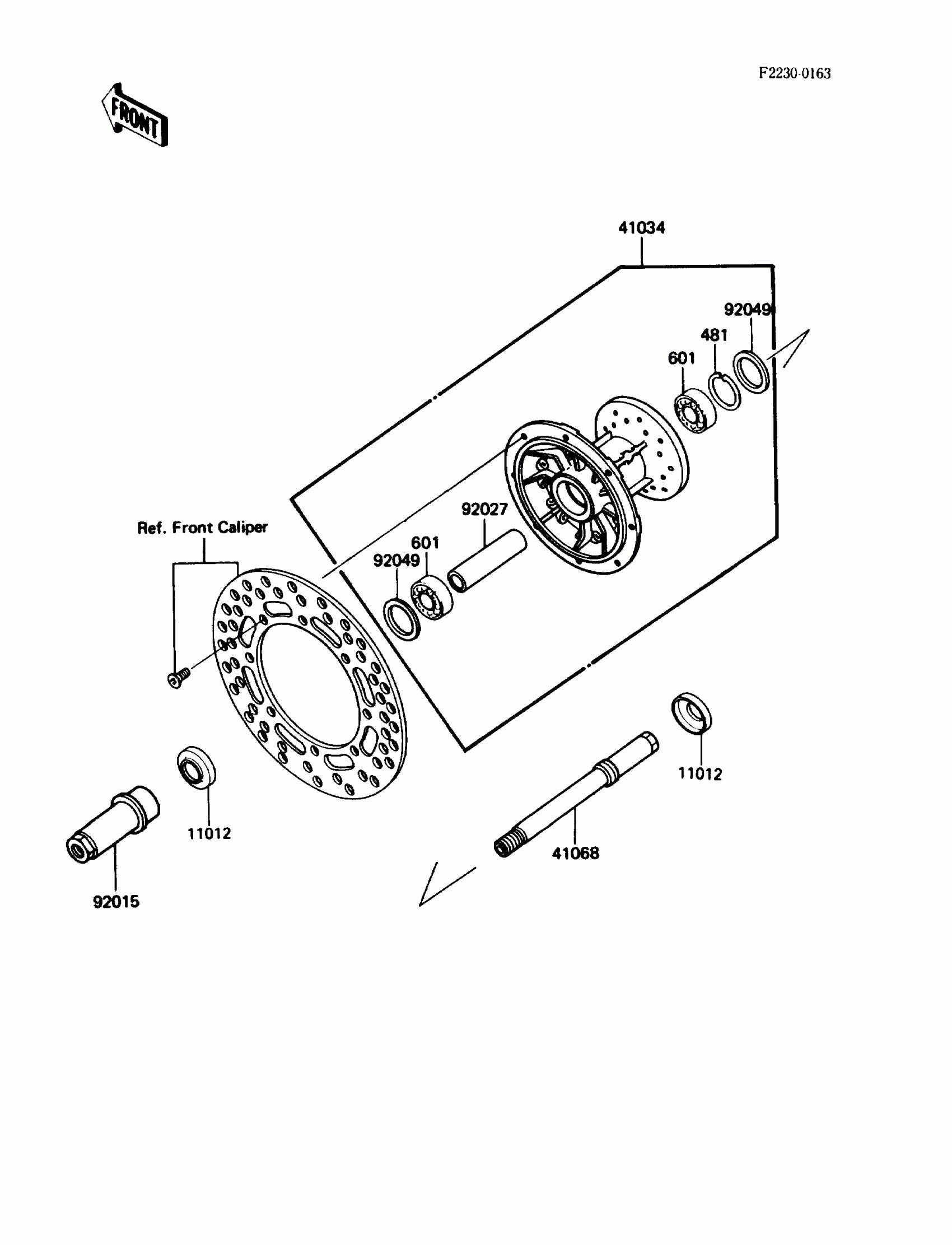

1988 Kawasaki KX™250 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,FRONT AXLE

11012-1580

1
Out of stock

41034

1

$331.50

In stock

41068

AXLE,FR

41068-1241

1
Out of stock

92015

NUT,FRONT AXLE

92015-1654

1
Out of stock

92027

COLLAR,FR BRAKE DRUM,L=78

92027-1829

1
Out of stock

92049

SEAL-OIL,BSNC2 22404

92049-1204

1
Out of stock

481

CIRCLIP-TYPE-C,40MM

481J4000

1
Out of stock

601

1

$34.89

In stock
