1988 Kawasaki KX™250 Generator Diagram

← All diagrams

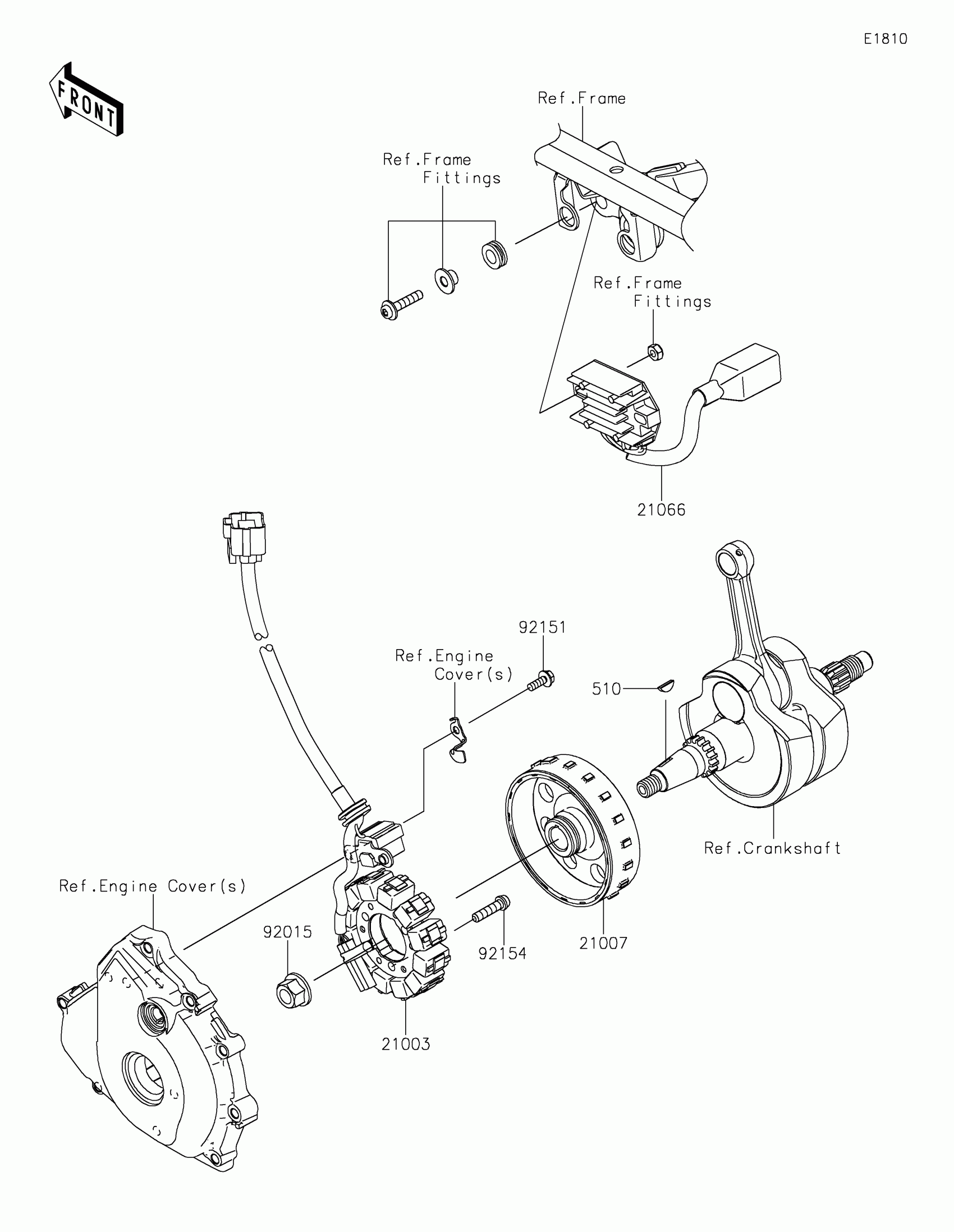

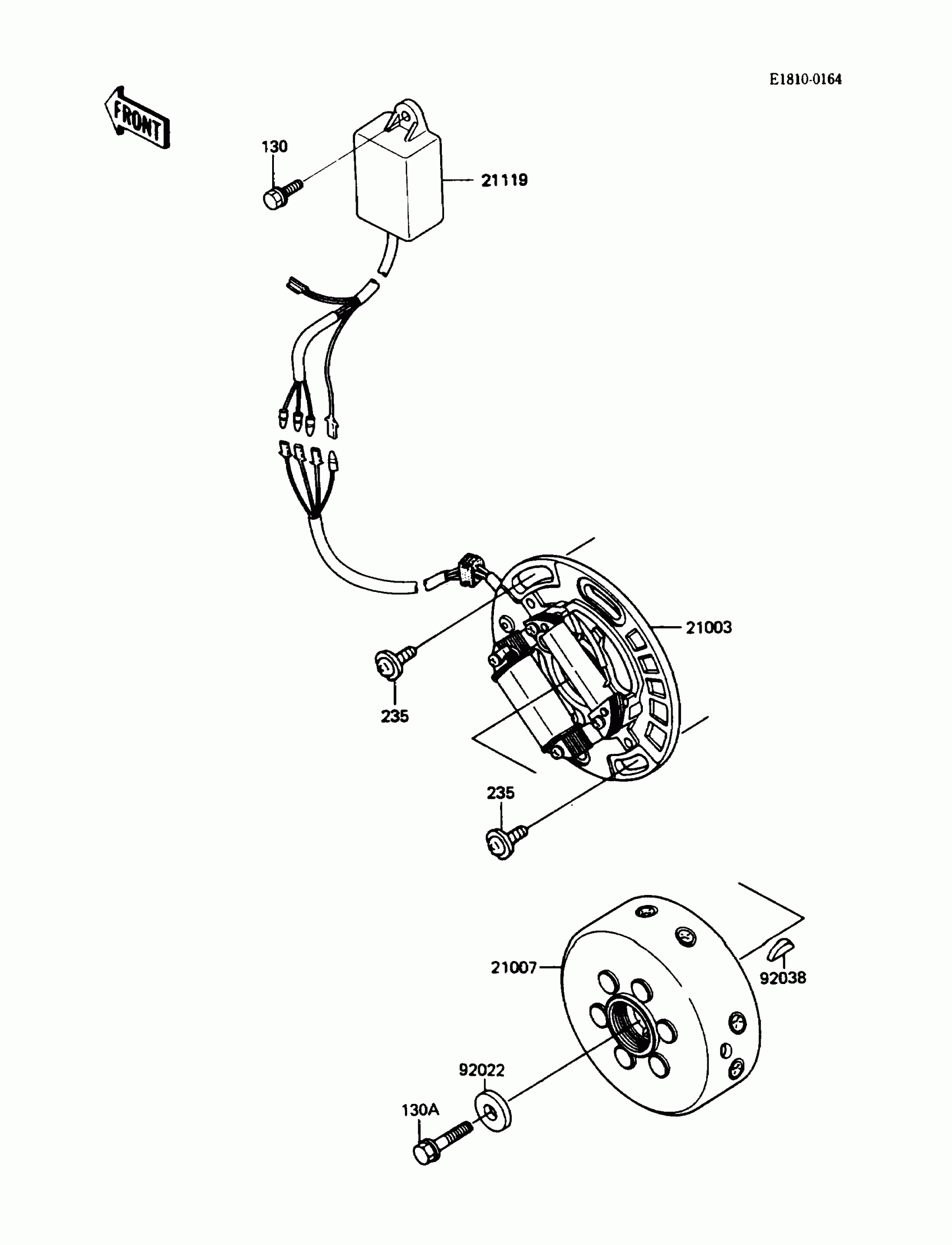

Find the part on the Generator diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX™250 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-1186

1

$515.34

In stock

21007

ROTOR

21007-1141

1

$558.87

In stock

21119

IGNITER

21119-1246

1

$407.19

In stock

92022

WASHER,8.5X22X3.2

92022-276

1
Out of stock

92038

KEY,WOODRUFF

92038-001

1

$3.94

In stock

130

BOLT-FLANGED,6X16

130G0616

1
Out of stock

130A

BOLT-FLANGED,8X30

130P0830

1
Out of stock

235

1

$3.66

In stock
