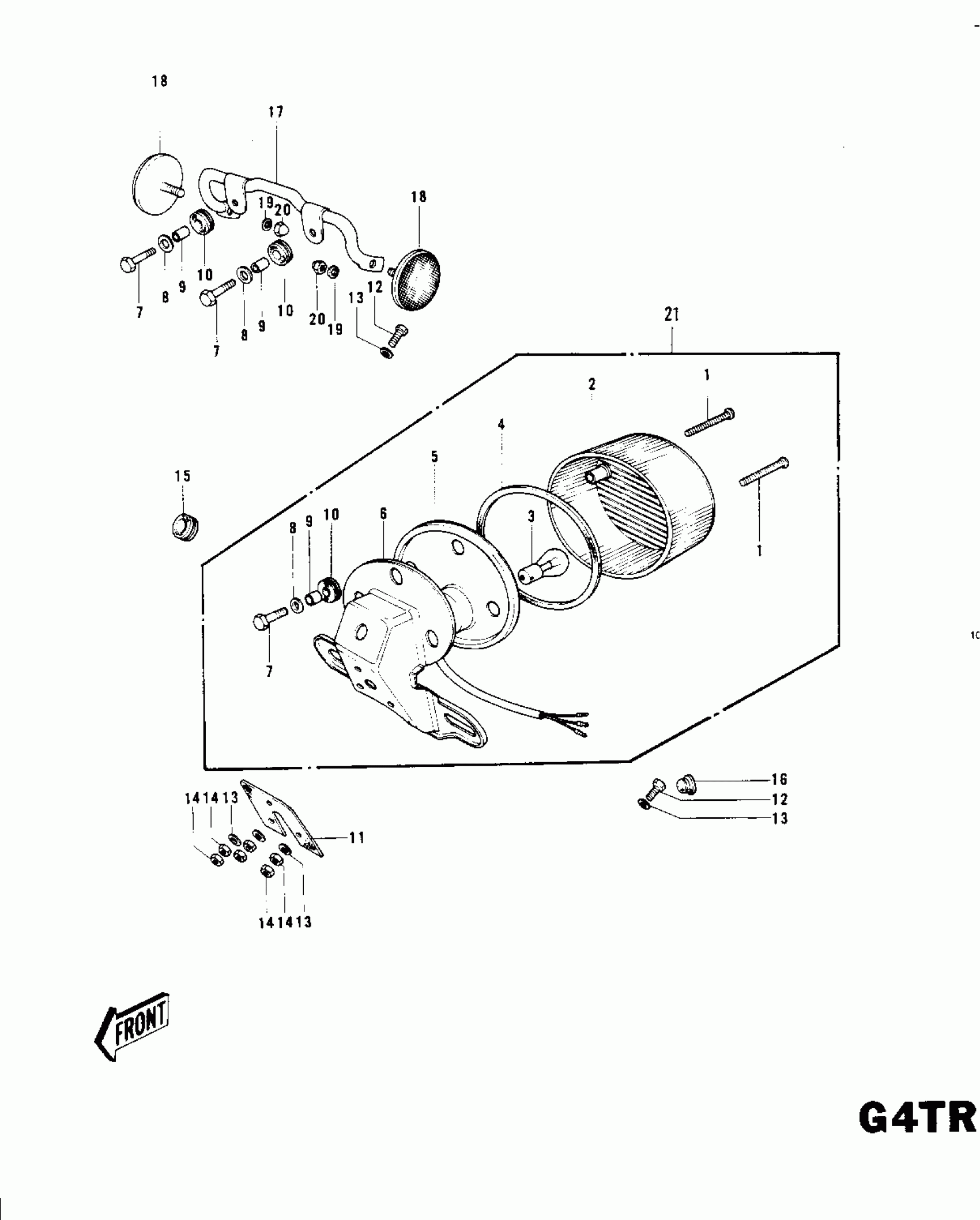

Kawasaki KV100-A7 TAILLIGHT G4TR-C ('70-'73) Diagram

#

Description
Price

1

SCREW-PAN HEAD,4X35

220E0435A

$8.69

2

LENS-TAIL LAMP

23026-023

$134.27

3

BULB 6V 3/21CP

92069-023

Unavailable

4

GASKET-TAIL LAMP LENS

23028-018

Unavailable

5

CASE,TAIL LAMP

23027-030

Unavailable

5

CASE,TAIL LAMP

23027-030

Unavailable

6

BRACKET-LICENSE PLATE

23036-021

$52.02

7

BOLT-UPSET,6X20

112G0620

Unavailable

8

WASHER,6.5X20X1.6

92022-125

$1.08

9

COLLAR,6.8X10X8.5

92027-129

$3.81

10

DAMPER RUBBER

92075-076

$3.80

11

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

12

BOLT-UPSET

112G0630

Unavailable

13

WASHER,6.5X20X1.6

92022-125

$1.08

14

NUT 6MM

312B0600

Unavailable

15

GROMMET,10MM

92071-019

$2.97

16

PLUG,RUBBER

92074-025

$1.29

17

BRACKET-REFLECTOR

28013-006

$11.71

18

REFLECTOR-REFLEX,REAR

28012-008

Unavailable

19

WASHER SPRING 5MM

461F0500

Unavailable

20

NUT-CAP,5MM

322N0500

Unavailable

21

LAMP ASSY-TAIL

23024-025

$65.27
