1976 Kawasaki KV100-A7 Meter/ignition Switch Diagram

← All diagrams

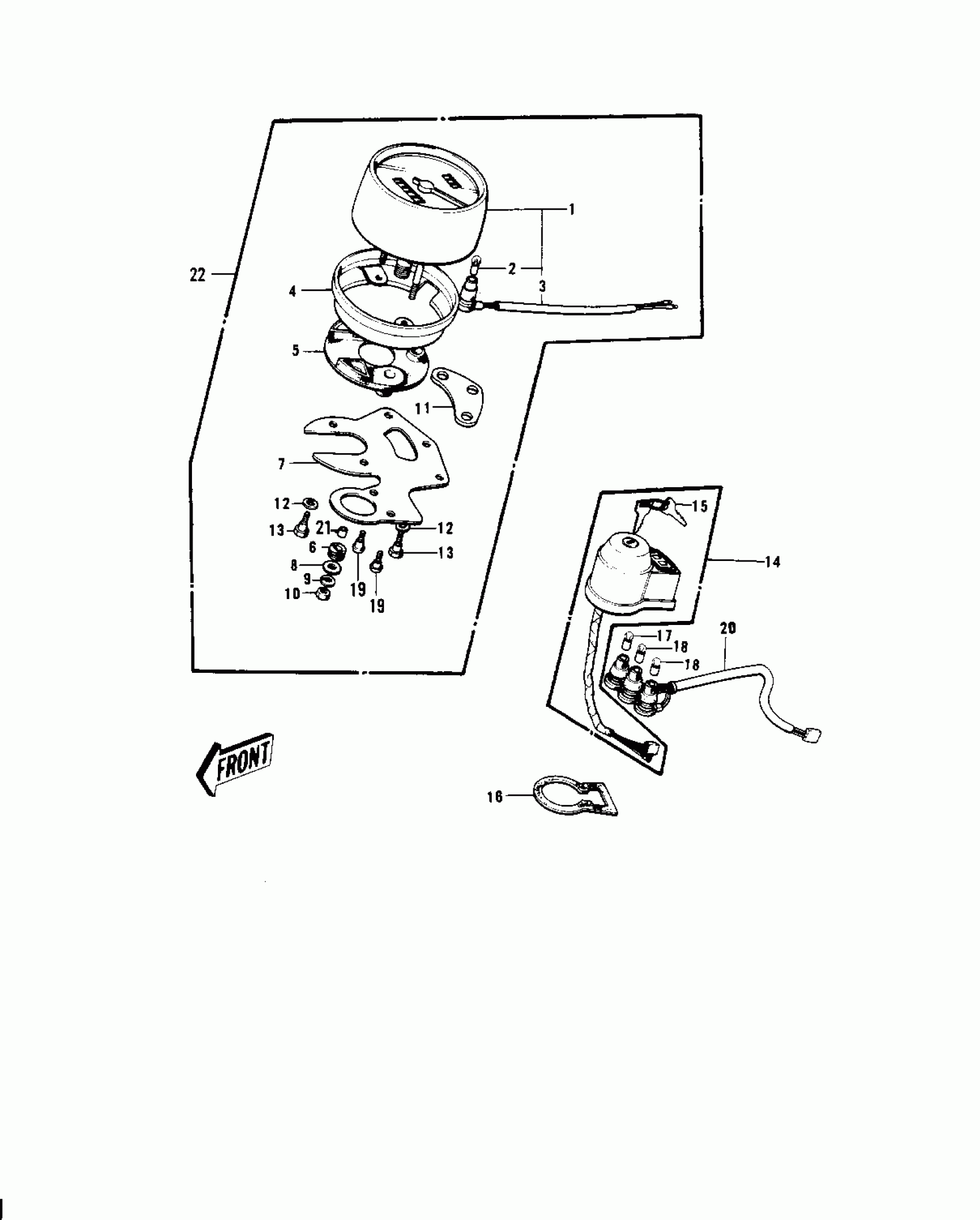

Find the part on the Meter/ignition Switch diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KV100-A7 Meter/ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$101.44

In stock

1

1

$159.35

In stock

1

UNAVAILABLE IN PRICE BOOK

25005-107

1
Out of stock

2

BULB,6V 1.7W

92069-024

1

$3.80

In stock

2

BULB,6V 3W,CLEAR

92069-053

1

$3.33

In stock

3

SOCKET,SPEEDOMETER

25010-014

1

$46.97

In stock

4

COVER,SPEEDOMETER

25012-016

1

$16.32

In stock

4

COVER,TACHOMETER

25012-018

1
Out of stock

5

SHOCK DAMPER,METER

25019-018

1
Out of stock

6

DAMPER RUBBER,METER

25019-019

1
Out of stock

7

1

$19.37

In stock

7

1

$56.83

In stock

8

WASHER,5.5X20X1.2

92022-104

1

$3.43

In stock

8

WASHER,5.2X18X1.2

92022-285

1
Out of stock

9

WASHER SPRING 5MM

461F0500

1
Out of stock

10

NUT-CAP,5MM

322N0500

1
Out of stock

11

DAMPER RUBBER,SPDMETR

25019-017

1
Out of stock

12

WASHER PLAIN 8MM

410B0800

1
Out of stock

13

BOLT-HEX HEAD,6MM

92003-069

1
Out of stock

14

SWITCH ASSY,IGNITION

27005-067

1
Out of stock

14

SWITCH ASSY,IGNITION

27005-067

1
Out of stock

14

SWITCH ASSY,IGNITION

27005-082

1
Out of stock

15

KEY SET,#401

27008-063-01

—
Out of stock

15

KEY SET,#410

27008-063-10

—
Out of stock

15

KEY-LOCK,BLANK

27008-1024

—

$20.31

In stock

15

KEY-LOCK,BLANK

27008-1025

—

$20.31

In stock

16

DAMPER RUBBER-SWITCH

27025-001

1
Out of stock

17

BULB,6V 1.7W

92069-024

1

$3.80

In stock

18

BULB,6V 3W,CLEAR

92069-053

1

$3.33

In stock

19

SCREW-PAN HEAD,6MM

92011-026

1
Out of stock

20

SOCKET, IGNITION

27024-001

1
Out of stock

21

1

$4.63

In stock

22

SPEEDOMETER,MPH

25001-092

1

$106.88

In stock
