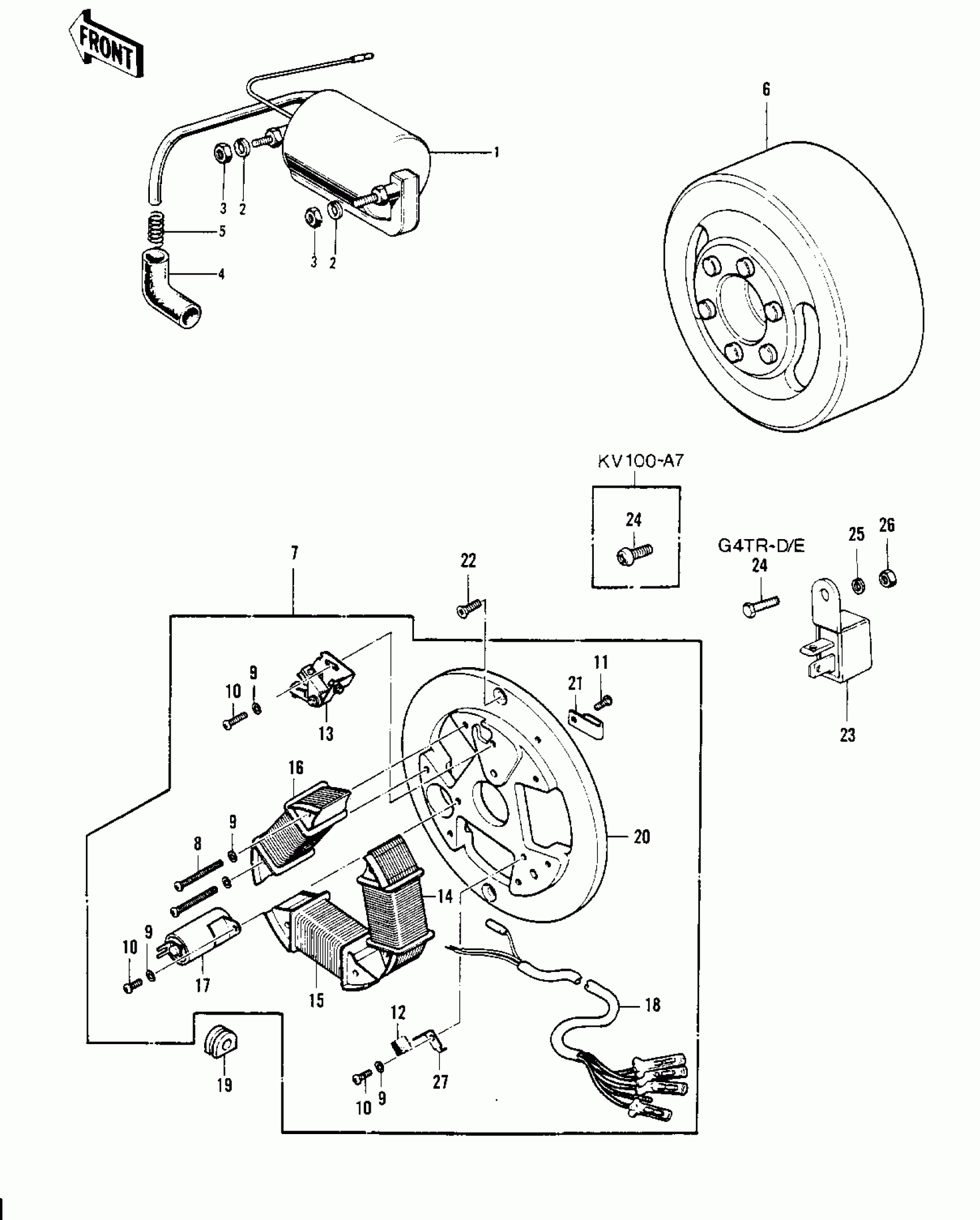

Find the part on the Ignition/generator 1/2 diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KV100-A7 Ignition/generator 1/2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COIL,IGNITION

21121-1047

1
Out of stock

1

COIL,IGNITION

21121-1047

1
Out of stock

2

WASHER SPRING 6MM

461F0600

1
Out of stock

3

NUT 6MM

311B0600

1
Out of stock

4

CAP-SPARK PLUG

21130-009

1
Out of stock

5

TERMINAL,SPARK PLUG CAP

92101-001

1
Out of stock

6

MAGNETO ASSY

21002-1055

1
Out of stock

6

FLYWHEEL

21050-016

1
Out of stock

6

FLYWHEEL

21050-017

1
Out of stock

7

MAGNETO ASSY

21002-1055

1
Out of stock

7

MAGNETO ASSY

21002-1055

1
Out of stock

7

STATOR ASSY

21003-027

1
Out of stock

7

STATOR ASSY

21003-025

1
Out of stock

8

SCREW-PAN-CROS

220E0430

1
Out of stock

9

WASHER SPRING 4MM

461F0400

1
Out of stock

10

SCREW PAN HEAD 4X6

220B0406

1
Out of stock

11

SCREW-PAN-CRSOSS,4X1

220B0412

1
Out of stock

12

BRUSH,OIL

21019-005

1
Out of stock

13

BREAKER,CONTACT

21008-006

1
Out of stock

14

COIL PRIMARY

21049-006

1
Out of stock

14

COIL A,LIGHTING

21047-022

1
Out of stock

14

COIL,LIGHTING

21047-1007

1
Out of stock

14

COIL,LIGHTING

21047-1007

1
Out of stock

15

COIL LIGHTING A

21047-010

1
Out of stock

15

COIL A LIGHTING

21047-019

1
Out of stock

16

COIL LIGHTING B

21047-011

1
Out of stock

16

COIL-EXCITING

21049-1004

1
Out of stock

16

COIL-EXCITING

21049-1004

1
Out of stock

17

CONDENSER

21013-006

1
Out of stock

18

WIRING HARNESS,MAGNTO

21029-025

1
Out of stock

18

WIRING HARNESS,MAGNT

21029-028

1
Out of stock

18

WIRING HARNESS,MAGNT

21029-028

1
Out of stock

19

GROMMET

21017-002

1
Out of stock

20

PLATE-COIL,MAGNETO

21048-1002

1
Out of stock

20

PLATE-COIL,MAGNETO

21048-1002

1
Out of stock

21

CLAMP,WIRING HARNESS

21037-002

1
Out of stock

22

SCREW-CSK-CROS,6X14

221B0614

1
Out of stock

23

RECTIFIER

21061-015

1
Out of stock

24

BOLT HEX HEAD 5X10

110B0510

1
Out of stock

24

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

25

WASHER SPRING 5MM

461F0500

1
Out of stock

26

NUT-HEX

311B0500

1
Out of stock

27

HOLDER,OIL FELT

21038-002

1
Out of stock
