1976 Kawasaki KV100-A7 Headlight G4TR-D/e Diagram

← All diagrams

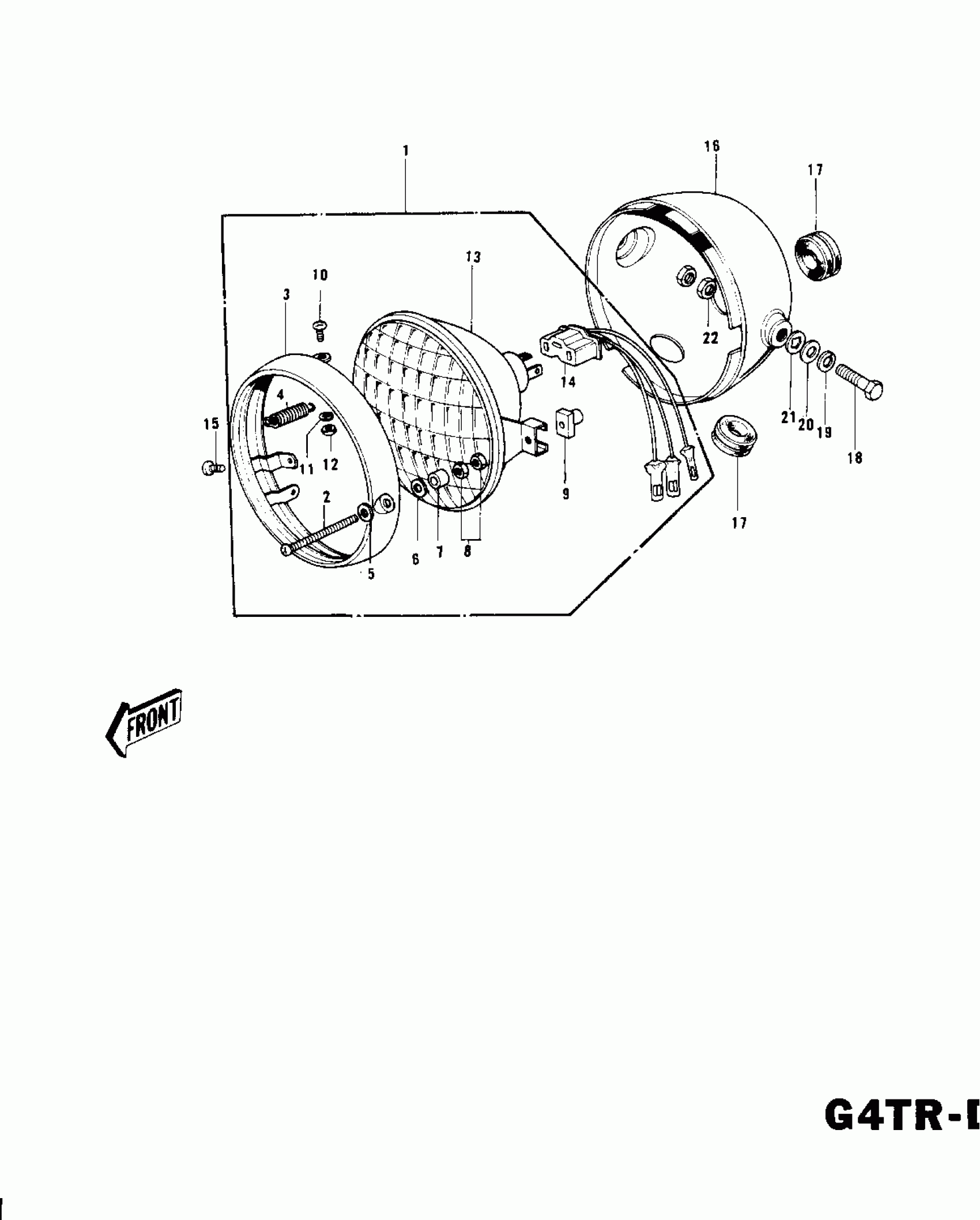

Find the part on the Headlight G4TR-D/e diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KV100-A7 Headlight G4TR-D/e Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT HEAD

23003-009

1
Out of stock

2

SCREW ADJUST

23019-013

1
Out of stock

3

RIM HEAD LAMP

23006-020

1
Out of stock

4

1

$1.14

In stock

5

WASHER,FOCUS ADJUSTING

23021-008

1
Out of stock

6

WASHER ADJUST

23021-007

1

$0.63

In stock

7

WASHER FITTING

23058-001

1

$1.64

In stock

8

NUT ADJUST

23020-013

1

$2.08

In stock

9

NUT,ADJUSTING

23020-012

1

$3.53

In stock

10

SCREW FITTING

23019-014

1
Out of stock

11

WASHER SPRING 4MM

461F0400

1
Out of stock

12

NUT-HEX

311B0400

1
Out of stock

13

SEALED BEAM UNIT

23007-023

1
Out of stock

14

1

$20.90

In stock

15

SCREW OVL CNTSNK 5X8

222E0508A

1
Out of stock

16

BODY,HEAD LAMP,BLACK

23005-051-21

1

$23.75

In stock

17

GROMMET

23023-011

1

$5.78

In stock

18

BOLT,HEX HEAD,10X25

92007-045

1
Out of stock

19

WASHER SPRING 10MM

461F1000

1
Out of stock

20

WASHER-PLAIN,10MM

411B1000

1
Out of stock

21

WASHER LOCK 10MM

463H1000

1

$0.69

In stock

22

NUT 10MM

92016-027

1
Out of stock
← Headlight Headlight KV100-A7 →
