1976 Kawasaki KV100-A7 Ignition/generator Diagram

← All diagrams

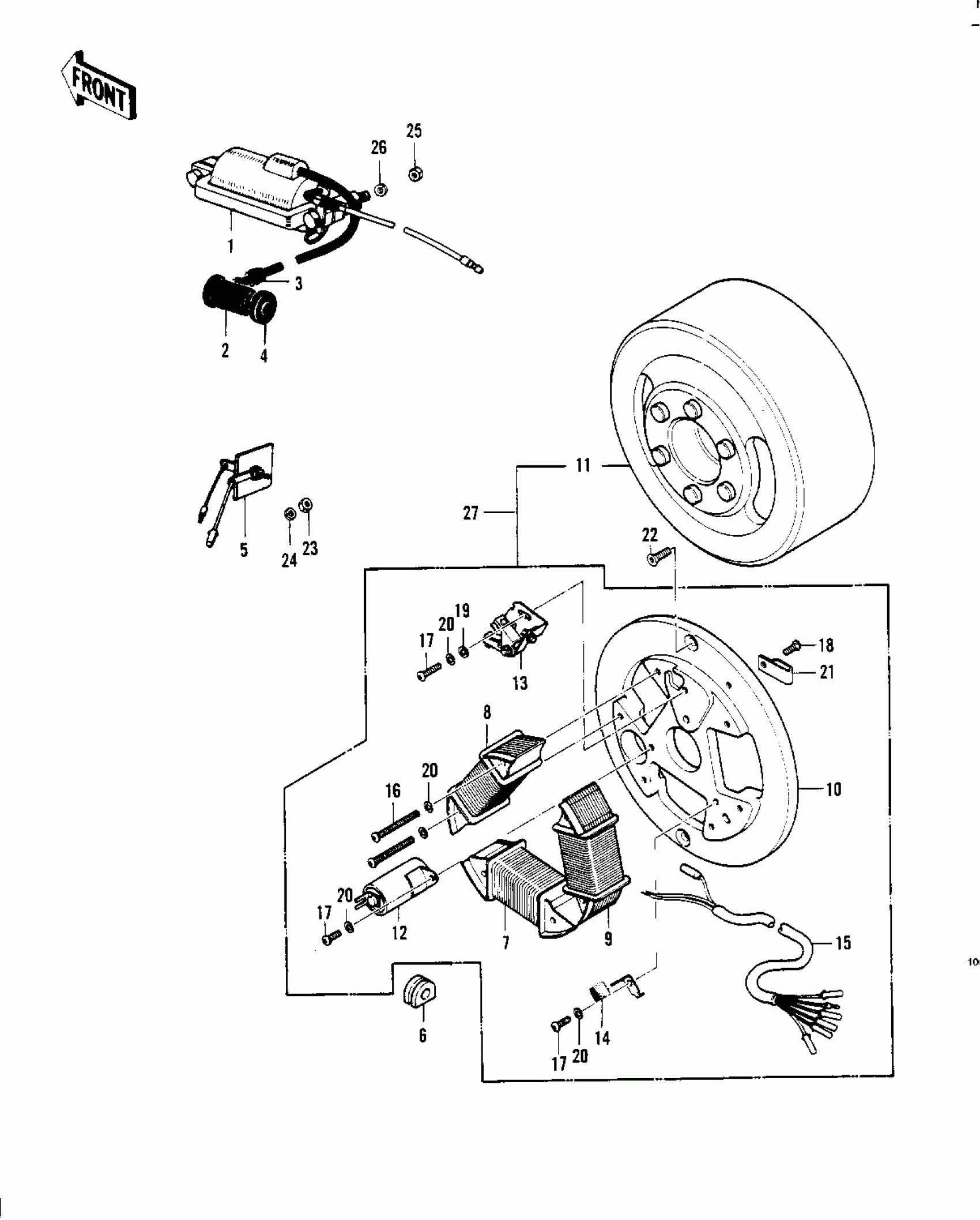

Find the part on the Ignition/generator diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KV100-A7 Ignition/generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COIL,IGNITION

21121-1047

1
Out of stock

1

COIL,IGNITION

21121-1047

1
Out of stock

2

CAP-SPARK PLUG

21130-016

1

$24.07

In stock

2

CAP-SPARK PLUG

21130-016

—

$24.07

In stock

3

GROMMET,PLUG CAP

21131-004

1

$10.81

In stock

4

1

$3.39

In stock

5

RECTIFIER

21061-5001

1

$30.29

In stock

6

GROMMET

21017-002

1

$4.23

In stock

7

COIL LIGHTING A

21047-010

1

$164.29

In stock

8

COIL LIGHTING B

21047-011

1

$110.66

In stock

9

COIL PRIMARY

21049-006

1

$199.81

In stock

10

PLATE-COIL,MAGNETO

21048-1002

1

$70.10

In stock

10

PLATE-COIL,MAGNETO

21048-1002

1

$70.10

In stock

11

MAGNETO ASSY

21002-1055

1
Out of stock

12

CONDENSER

21013-006

1
Out of stock

13

BREAKER,CONTACT

21008-006

1

$50.32

In stock

14

BRUSH,OIL

21019-005

1
Out of stock

15

WIRING HARNESS MAG

21029-014

1
Out of stock

16

SCREW-PAN-CROS

220E0430

1
Out of stock

17

1

$1.46

In stock

18

1

$0.26

In stock

19

WASHER PLAIN 4MM

410B0400

1
Out of stock

20

WASHER SPRING 4MM

461F0400

1
Out of stock

21

CLAMP,WIRING HARNESS

21037-002

1
Out of stock

22

SCREW-CSK-CROS,6X14

221B0614

1
Out of stock

23

NUT-HEX

311B0500

1

$0.51

In stock

24

WASHER SPRING 5MM

461F0500

1
Out of stock

25

NUT 6MM

311B0600

1
Out of stock

26

WASHER SPRING 6MM

461F0600

1
Out of stock

27

MAGNETO FLYWHEEL

21002-018

1

$107.53

In stock

27

MAGNETO ASSY

21002-027

1

$109.37

In stock

27

MAGNETO ASSY

21002-1055

1
Out of stock

27

MAGNETO ASSY

21002-1055

1
Out of stock
