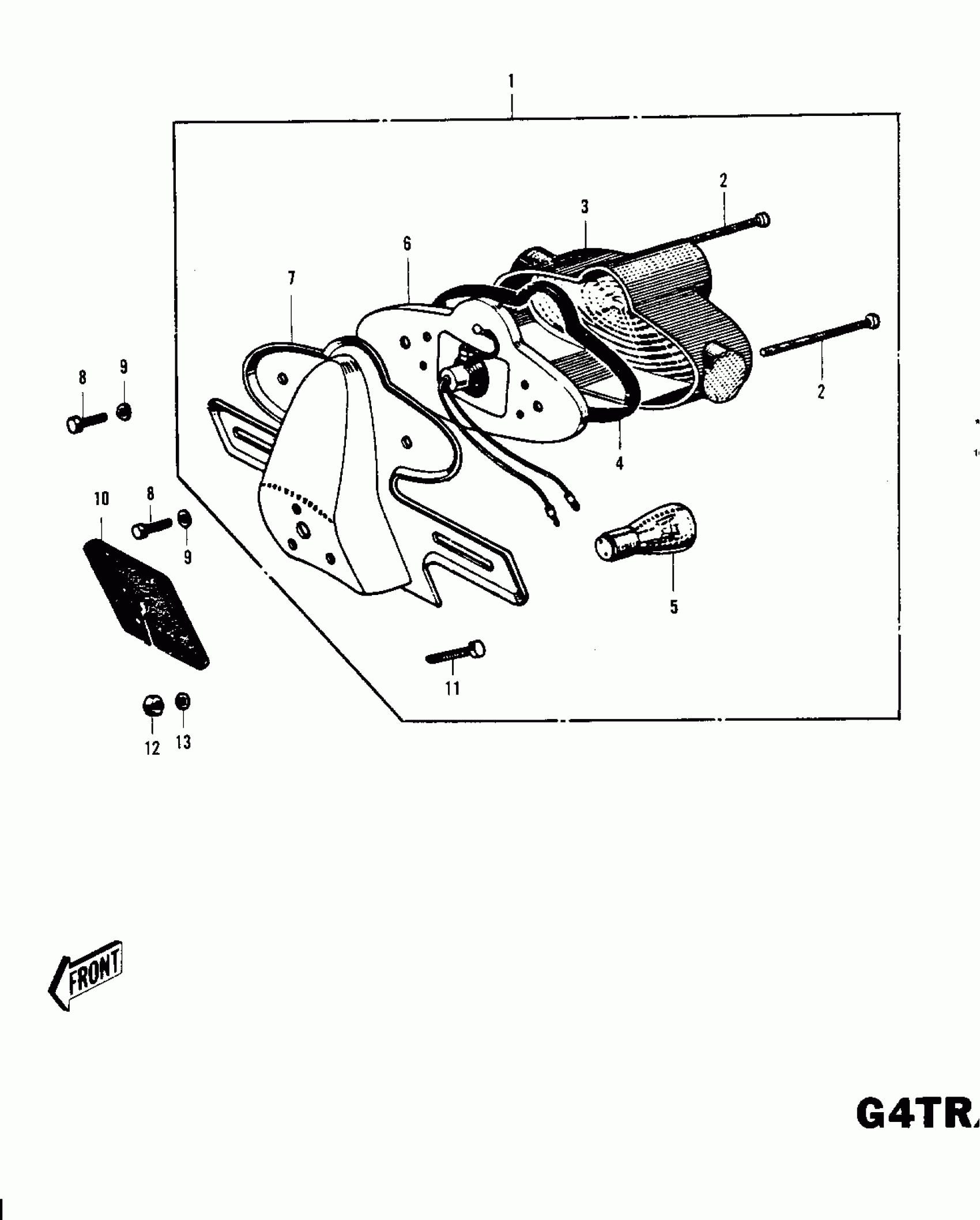

Kawasaki KV100-A7 TAILLIGHT G4TR/A ('70-'73) Diagram

#

Description

Price

1

LAMP ASSY-TAIL,BLACK

23024-019-21

Unavailable

2

SCREW PAN HEAD 4X50

220E0450

Unavailable

3

LENS TAIL LAMP

23026-010

Unavailable

4

GASKET TAIL LAMP

23028-008

Unavailable

5

BULB 6V 3/21CP

92069-023

Unavailable

6

SOCKET TAIL LAMP

23027-009

Unavailable

7

BKT LICENSE PLT BLACK

23036-007-10

$55.34

7

BKT LICENSE PLT

23036-002

Unavailable

8

BOLT HEX HEAD 5X10

110B0510

Unavailable

9

WASHER SPRING 5MM

461F0500

Unavailable

10

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

11

BOLT-UPSET

112G0630

Unavailable

12

NUT 6MM

312B0600

Unavailable

13

WASHER,6.5X20X1.6

92022-125

$1.08
