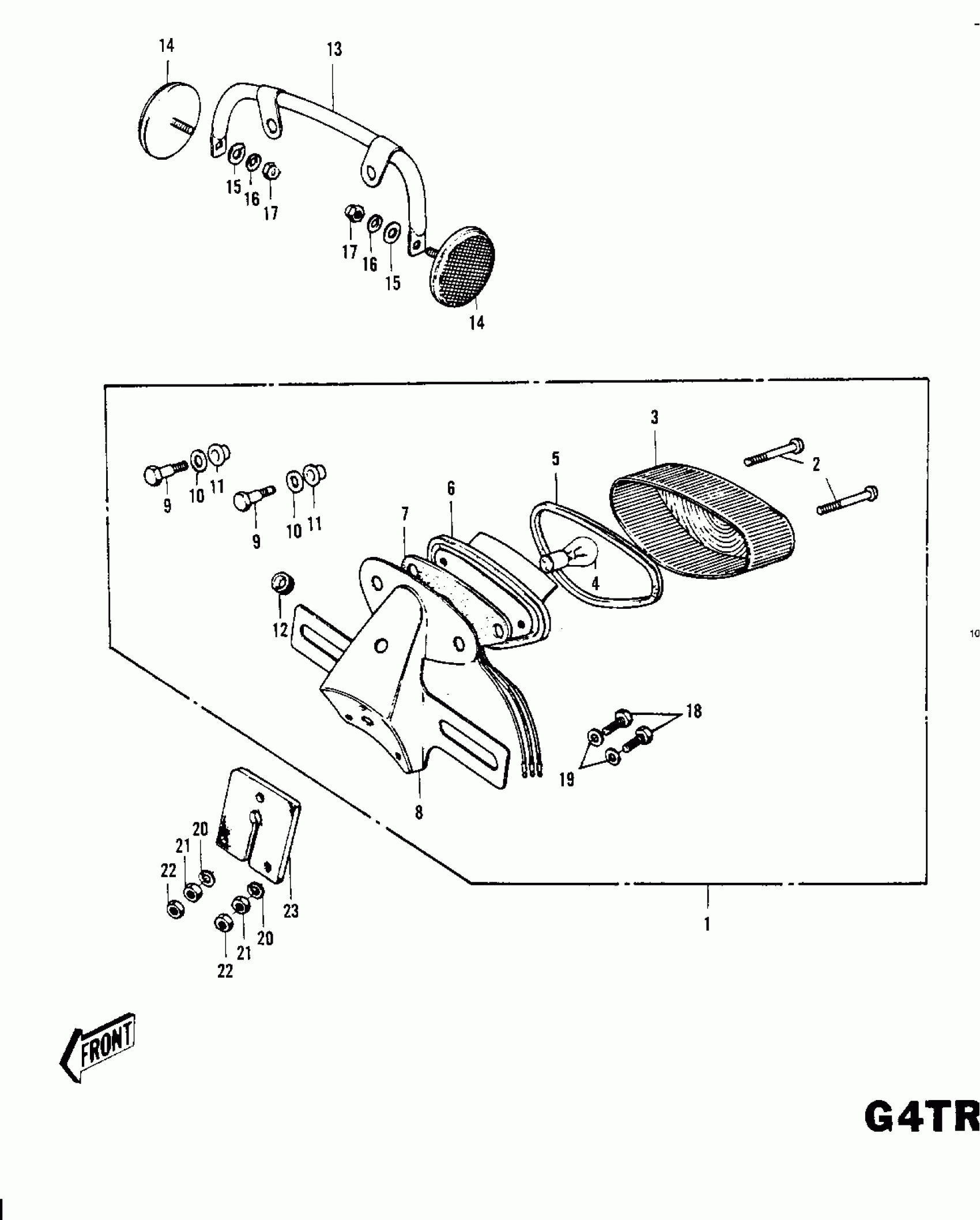

Kawasaki KV100-A7 TAILLIGHT G4TR-B ('70-'73) Diagram

#

Description
Price

1

LAMP ASSY-TAIL,BLACK

23024-019-21

Unavailable

2

SCREW

220R0455

$4.44

3

LENS-TAIL LAMP

23026-022

Unavailable

4

BULB 6V 3/21CP

92069-023

Unavailable

5

GASKET-TAIL LAMP LENS

23028-016

$10.03

6

CASE-TAIL LAMP

23027-029

Unavailable

7

GASKET-TAIL LAMP CASE

23028-015

Unavailable

8

BKT-LICENSE PLT,BLACK

23036-014-21

Unavailable

9

BOLT

92001-111

$1.98

10

WASHER,8.5X20X1.6

92022-1561

$3.29

11

DAMPER RUBBER

92075-091

Unavailable

12

GROMMET,10MM

92071-019

$2.97

13

BRACKET-REFLECTOR

28013-002

Unavailable

14

REFLECTOR-REFLEX,REAR

28012-008

Unavailable

15

WASHER-PLAIN,5MM

411B0500

Unavailable

16

WASHER SPRING 5MM

461F0500

Unavailable

17

NUT-CAP,5MM

322N0500

Unavailable

18

BOLT-UPSET

112G0630

Unavailable

19

WASHER,6.5X20X1.6

92022-125

$1.08

20

WASHER SPRING 6MM

461F0600

Unavailable

21

NUT 6MM

311B0600

Unavailable

22

NUT 6MM

312B0600

Unavailable

23

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable
